Gefen 4x4 DVI Dual Link Matrix
EXT-DVI-444DL
Discontinued
For upgrade or replacement options: Contact Us
The Gefen EXT-DVI-444DL is a 4x4 DVI Dual Link Matrix which combines any four cross-platform Dual Link DVI video display outputs and four Dual Link DVI digital displays without networking. The 4x4 DVI Dual Link Matrix provides an effective method of creating multiple Dual Link DVI display consoles, with each console capable of accessing any one of the Dual Link DVI video sources at any time by remote control. You also have the option of setting up the four displays locally or extending them with an extender.
The 4x4 DVI Dual Link Matrix has four Dual Link DVI inputs and four Dual Link DVI outputs. You connect your four Dual Link DVI video sources to the Switcher's inputs, then connect your four Dual Link DVI displays to the Switcher's outputs.
Note: This device does not support HDCP.
UPC 845344053240
EAN 0845344053240
The 4x4 DVI Dual Link Matrix has four Dual Link DVI inputs and four Dual Link DVI outputs. You connect your four Dual Link DVI video sources to the Switcher's inputs, then connect your four Dual Link DVI displays to the Switcher's outputs.
Note: This device does not support HDCP.
Gefen 4x4 DVI Dual Link Matrix Backview
Gefen EXT-DVI-444DL Features:
- Increases your productivity by letting you view any four Dual Link DVI video sources on any four Dual Link DVI displays
- Maintains highest resolution digital video with no loss of quality
- Discrete IR Remote (included)
- Supports video resolutions up to 3840x2400
- Supports DDWG standards for DVI monitors
- Includes rack ears

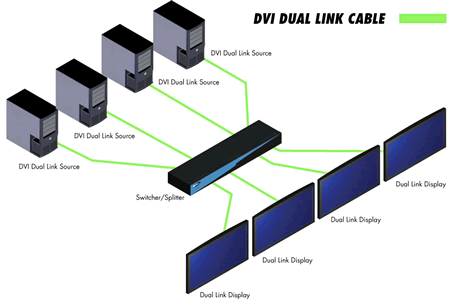

Gefen 4x4 DVI Dual Link Matrix Application Diagram
Package Includes:
- 4x4 DVI Dual Link Matrix
- RMT-16IR
- One 5VDC Power Supply
- Four 6ft Dual Link DVI cables
- Rack Ears
Gefen EXT-DVI-444DL Specifications:
| Mechanical | |
| Height | 1.7 in. (4.3 cm.) |
| Width | 17.1 in. (43.4 cm.) |
| Depth | 4.25 in. (10.8 cm.) |
| Weight | 7 lbs. (3.2 kg.) |
| Power | |
| Supply | 5V DC |
| Consumption | 60 Watts (max) |
| Video Amplifier Bandwidth | 2 x 165 MHz |
| Input Signals | |
| Input Video Signal | 1.2 volts p-p |
| Input DDC Signal | 5 volts p-p (TTL) |
| Dual Link Maximum Video Range | 3840x2400 |
| DVI Connector | DVI-I 29 pin female (digital only) |
| Rackmountable | 1U Rack Space |
