Gefen HDMI Extender over Fiber Optic Cables, up to 330ft.
EXT-HD-1000
The Gefen EXT-HD-1000 allows an HDMI video signal to be extended up to 330 feet (1640 w/o HDCP) using a multi-mode LC-LC fiber optic cable. The Fiber Optics technology allows the HD-1000 to carry video signals over long distances. Fiber Optic cables are immune to video signal corruption from electromagnetic interference (EMI), ensuring a crystal clear picture.
How It Works
The HD-1000S sender unit sits next to your set-top box or DVD player source. Cables supplied with the HD-1000 connect your HDMI 1.3 source to the sender unit. The display plugs into the back of the receiver unit. One CAT-5 cable and a multi mode LC fiber optic cable connect the Sender and the Receiver units to each other.

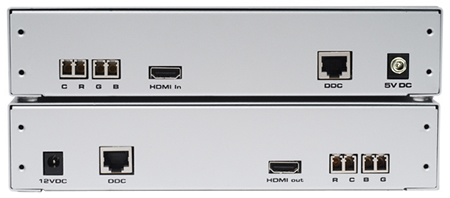

Gefen EXT-HD-1000 Back View
Gefen EXT-HD-1000 Features:
- Extends high definition HDMI compliant devices up to 330 feet (100 meters)
- Uses a 4 strand multi mode LC-LC fiber optic cable for HDMI and a CAT5e cable for DDC/control signals
- Extends range of HDMI by equalizing signals
- HDCP and HDMI compliant with HDMI 1.3 Features
- Supports resolutions up to 1080p, 2K, and 1920 x 1200
HDMI 1.3 Supported Features
- 12-bit/channel RGB Deep Color support
- CEC protocol support
- Lip-Sync pass-through
- Dolby TrueHD, DTS-HD pass-through
- xvYCC pass-through
Included In The Package:
- (1) HD-1000S Sender unit
- (1) HD-1000R Receiver unit
- (2) 5V DC Power Supply
- (1) 6 ft HDMI cable (M-M)
- (1) User's Manual

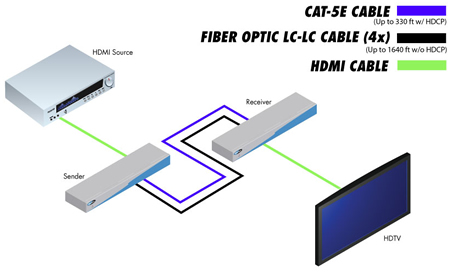

Gefen HDMI Extender System Wiring Diagram
Gefen EXT-HD-1000 Specifications:
| Mechanical | |
| Height | 1.8 in. (4.6 cm.) |
| Width | 8.5 in. (21.6 cm.) |
| Depth | 4.4 in. (11.2 cm.) |
| Shipping Weight | 5 lbs. (2.2 kg.) |
| Input Signal | |
| Video | 1.2 volts p-p |
| DDC | 5 volts p-p (TTL) |
| Power | |
| Consumption | 60W watts x 2 (max) |
| Supply | 5V DC with locking connector |
| Connectors | |
| DDC Link Connector | RJ-45 Shielded |
| Video Link Connector | LC |
| HDMI Connector | Type A, 19 pin female |
| Video Amplifier Bandwidth | 225 MHz maximum |
| Single Link Range | 1080p, 2k, 1920 x 1200 |
| Rack Mountable | 1U rack space |
