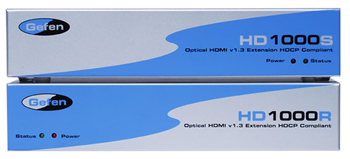

Gefen HD 1000 Extender with 300ft. 4 Strand LC-LC Fiber Optic Cable

The Gefen EXT-HD-1000KIT300B is an HDMI Fiber Extension system bundled with 300ft of 4 strand LC-LC cable.  This HDMI Extender allows an HDMI video signal to be extended up to 330 feet (1640 w/o HDCP) using a multi-mode LC-LC fiber optic cable. The Fiber Optics technology allows the HD-1000 to carry video signals over long distances. Fiber Optic cables are immune to video signal corruption from electromagnetic interference (EMI), ensuring a crystal clear picture.

How this Gefen HDMI Extender Works:
The HD1000S sender unit sits next to your set-top box or DVD player source. Cables supplied with the HD-1000 connect your HDMI 1.3 source to the sender unit. The display plugs into the back of the receiver unit. One CAT-5 cable and a multi mode LC fiber optic cable connect the Sender and the Receiver units to each other.

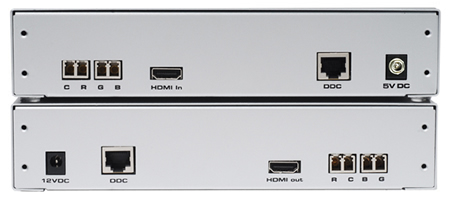

Gefen EXT-HD-1000 Extender System Back View

Gefen EXT-HD-1000 Features:

• Extends high definition HDMI compliant devices up to 330 feet (100 meters)
• Uses a 4 strand multi mode LC-LC fiber optic cable for HDMI and a CAT5e cable for DDC/control signals
• Extends range of HDMI by equalizing signals
• HDCP and HDMI compliant with HDMI 1.3 Features
• Supports resolutions up to 1080p, 2K, and 1920 x 1200

HDMI 1.3 Supported Features

• 12-bit/channel RGB Deep Color support
• CEC protocol support
• Lip-Sync pass-through
• Dolby TrueHD, DTS-HD pass-through
• xvYCC pass-through

Included In The Package:

• (1) HD-1000S Sender unit
• (1) HD-1000R Receiver unit
• (2) 5V DC Power Supply
• (1) 6 ft HDMI cable (M-M)
• (1) User's Manual
• 300ft. 4 strand LC-LC cable

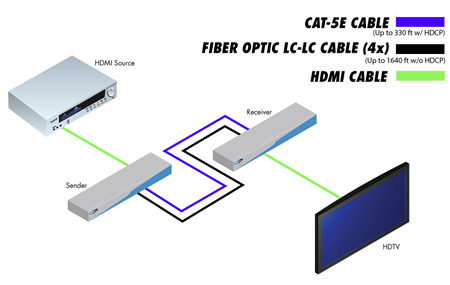

Gefen HD 1000 HDMI Extender System Wiring Diagram

Gefen EXT-HD-1000 Specifications:
