Gefen HDMI Super Booster PLUS
EXT-HDMI-141SBP
The Gefen HDMI Super Booster Plus is an attractive alternative to the traditional sender/receiver solutions for HD extension. The HDMI Super Booster Plus enables your standard "off the shelf" HDMI cable to transmit HDTV video plus multichannel digital audio in a single cable way beyond the limited HDMI specification of 15-feet. Up to 200 feet can be easily traversed using your HDMI cable plus a HDMI Super Booster Plus. The HDMI Super Booster Plus corrects any digital degradation that occurs when HDMI is used to send digital audio/video signals beyond the HDMI specification of 15 feet.
How The EXT-HDMI-141SBP Works
This plug and play installation takes mere seconds. You simply connect the HDMI cable on one side of the HDMI Super Booster Plus and the display's cable on the other side. The HDMI Super Booster Plus sits between the end of your HDMI cable and your display. You also have the option of connecting another HDMI cable to the Booster, daisy chaining Boosters and cables for greater distances.
How The EXT-HDMI-141SBP Works
This plug and play installation takes mere seconds. You simply connect the HDMI cable on one side of the HDMI Super Booster Plus and the display's cable on the other side. The HDMI Super Booster Plus sits between the end of your HDMI cable and your display. You also have the option of connecting another HDMI cable to the Booster, daisy chaining Boosters and cables for greater distances.
EXT-HDMI-141SBP Features
- Perfect digital high definition video sent over long stretches of HDMI cables
- Locate an HDMI display up to 200 feet away from any HDTV source
- Supports resolutions up to 1080p, 2K, and 1920 x 1200
- HDMI/HDCP compliant
The package includes:
(1) HDMI Super Booster Plus
(1) 5V DC Power Supply
(1) User's Manual
| |
|

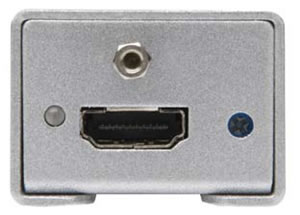

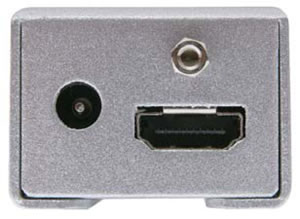

| EXT-HDMI-141SBP Front Panel | EXT-HDMI-141SBP Back Panel |
EXT-HDMI-141SBP Specifications
| Mechanical | |
| Height | 1 in. (2.5 cm.) |
| Width | 1.75 in. (4.45 cm.) |
| Depth | 2.25 in. (5.72 cm.) |
| Shipping Weight | 2 lbs. (0.9 kg) |
| Power | |
| Power Supply | 5V DC |
| Power Consumption | 5 watts (max.) |
| Input DDC Signal | 5 Volts p-p (TTL) |
| Input Video Signal | 1.2 Volts p-p |
| Maximum Single Link Range | 1920 x 1200 x 60hz |
| HDMI Input/Output Connector Type | HDMI Type A |
| Video Amplifier Bandwidth | 165 MHz |
