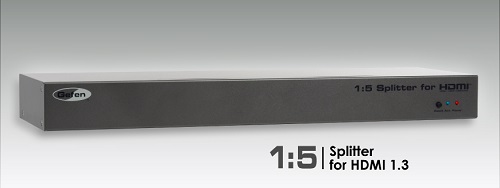

1:5 Splitter for HDMI 1.3

 The Gefen 1:5 Splitter for HDMI 1.3 allows set-top boxes, DVD players, Blu-ray players and other HDTV devices with HDMI outputs to be connected to up to five HDTV displays (or more if multiple splitters are utilized in place of HDTV displays). The 1:5 HDMI 1.3 Splitter is a distribution hub that sends the same HDMI signals to up to five HDTV digital displays. You simply connect your HDMI video source to the 1:5 HDMI 1.3 Splitters HDMI input jack, then connect your HDMI-compatible displays to each of the HDMI outputs. Power-cycle all equipment and you should see beautiful, sharp HDMI video on all of your HDMI displays. Note: This device is fully HDCP Compliant. Output 1 is connected to the Primary Display, from which the resolution and device capability information (EDID) is obtained. All other displays on the other outputs must be capable of the same resolution(s) being shown on the Primary Display, or they may not show a picture.

 Features:

• Lip-Sync Pass Through
• 225 MHz (up to 12 bit YUV 444 supported @ 1080p)
• Deep Color Supported (XV Color Supported)
• Color Space Conversion Supported
• Dolby TrueHD & DTS Master Supported
• Connects up to five HDMI / DVI displays from one HDMI source
• Optionally add more displays by connecting splitters
• Easily attains resolutions up to 1080p, 2k, and 1920 x 1200
• HDMI and HDCP compliant

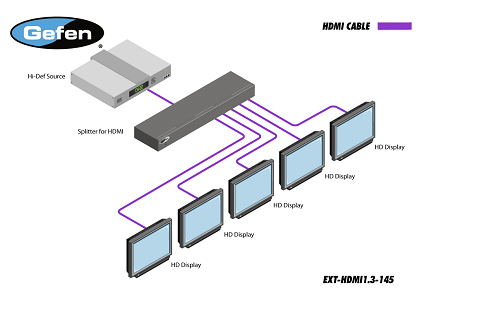

Diagram

Specifications:

• Video Amplifier Bandwidth: 225 MHz
• Input Video Signal: 1.2 Volts p-p
• Input DDC Signal: 5 Volts p-p (TTL)
• Single Link Range: 1080p/1920 x 1200 maximum
• HDMI Connector: Type A, 19-pin female
• Power Consumption: 60W (max)
• Dimensions: 17.1" W x 1.7" H x 5.2" D
• Shipping Weight: 6 lbs.
