Gefen Home Theatre Scaler
EXT-HOMETS
Discontinued
Recommended replacement: Video Adapters & Converters
Alternative options: Contact Us
The Gefen EXT-HOMETS is a Home Theater Scaler which allows you to upscale and switch your standard definition or high definition component and HDMI sources to resolutions up to 1080p. Anything from set-top boxes, DVD players to the next generation of gaming consoles including the Xbox 360 and PS3 can be plugged into the Home Theater Scaler.
The Home Theater Scaler supports two component sources with analog audio and two HDMI sources with digital audio. The analog audio from the component input is digitized and outputted to the HDMI connection as well as the digital audio outs. The HDMI inputs also have separate digital audio inputs, so you can use DVI sources and separate digital audio and the Home Theater Scaler will embed the digital audio into the HDMI output as well as the digital audio outs. Easy to use on-screen menus accessible through the IR remote control allow for effortless setup and image adjustment to accommodate different viewing modes and screen sizes.

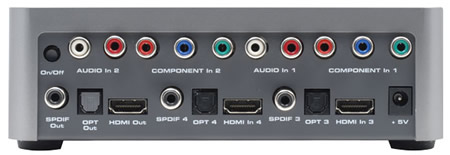

Gefen Home Theatre Scaler Backside
Gefen EXT-HOMETS Features:
- Both digital and analog inputs are format converted and pixel re-scaled through the Home Theater Scaler. It outputs a large range of formats and resolutions that will easily match the native resolution/ format of your display to ensure highest picture quality.
- DVI/HDCP/HDMI compliant input: Operates up to 165Mhz (Up to UXGA @60Hz)
- Supports digital HD output up to 1080p.
- Integrated 8-bit triple-ADC/PLL.
- Integrated DVI/HDCP/HDMI compliant receiver.
- Dual high quality scaling engines.
- Dual 3-D motion video adaptive de-interlacers with smooth low-angle edge.
- Automatic 3:2 pull-down & 2:2 pull-down detection and recovery.
- High performance frame rate conversion engine.
- The Proprietary Advanced Color Engine technology gives: Brilliant and fresh color, Intensified contrast and details, Vivid skin tone, Sharp edge, Accurate and independent color control
- Option to select Audio input from HDMI or TOSlink/SPDIF audio source.
- 3D noise reduction on analog inputs only.
- Operates through on-screen OSD menu control and remote control.
- Aspect Ratio Control
- Digital Audio Delay to match audio/video timing
- Less then one frame delay allowing for gaming
Gefen EXT-HOMETS Package Includes:
- Home Theater Scaler
- One 6 ft HDMI cable (M-M)
- One 5V Power Supply
- IR Remote control
- User's Manual
Gefen EXT-HOMETS Specifications:
Mechanical | |
Height | 2.125 in. (5.397 cm.) |
Width | 6.875 in. (17.462 cm.) |
Depth | 6.875 in. (17.462 cm.) |
Weight | 6 lbs. (2.7 kg.) |
Power | |
Consumption | 20 watts (max) |
Supply | 5V DC |
Input Signal | |
Video | 1.2 volts p-p |
DDC | 5 volts p-p (TTL) |
Connectors | |
Input/Output HDMI | type A 19 pin female |
Component Video | 3 RCA |
Analog Audio | 2 RCA |
Digital Audio | optical TOSlink + Coax SPDIF |
Amplifier Bandwidth | |
Digital Video | 1.65 Gbps |
Component Video | 350 Mhz |
Single Link Range | 1080p/1920 x 1200 |
