4x1 4K HDMI Switcher w/ HDR, EDID & IP Control - 600MHz

EXT-UHD600-41

$584.85$408.03
Save $176.82
    FREE Shipping on orders over $100

    The Gefen EXT-UHD600-41 has been developed to easily and reliably route up to four Ultra HD sources to a 4K display. This switcher takes HDMI 2.0 to its highest specification of 4K 60 Hz at 4:4:4 chroma subsampling, along with HDR (High Dynamic Range) support which delivers stunning Ultra HD and DCI/Cinema picture up to 4096 x 2160 pixels at 60 frames per second without subsampling color. Highest performance of multichannel digital audio including 7.1 channels of LPCM and HBR (High Bit Rate) digital audio formats.

    Gefen EXT-UHD600-41 Features

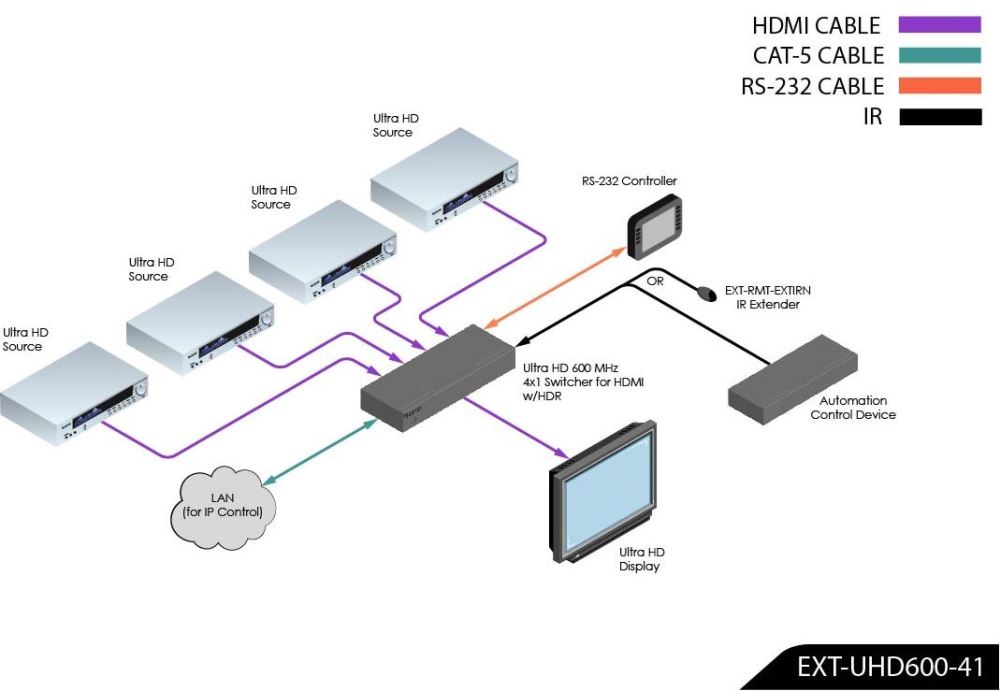

    Gefen EXT-UHD600-41 Product Use Diagram

    Gefen EXT-UHD600-41 Features & Benefits

    Gefen EXT-UHD600-41 Product Banner

    • Routes up to four Ultra Hi-Def sources to one Ultra HD display
    • Supports resolutions up to 4K DCI-Cinema (4096 x 2160 at 60 Hz, 4:4:4), 4K Ultra HD (3860 x 2160 at 60Hz, 4:4:4), 1080p Full HD, & 1920x1200 (WUXGA)
    • Supports HDCP 2.2 and 1.4
    • Supports HDR (High Dynamic Range) 10-bit Deep Color at 4K 60 Hz 4:2:0 and 4K 24 Hz 4:4:4
    • Supports 12-bit Deep Color at 1080p 60 Hz 4:4:4
    • 3DTV pass-through
    • Lip Sync pass-through
    • Advanced EDID and HDCP Management via Web Server Interface for rapid integration of sources and display
    • Supports uncompressed LPCM digital audio up to 7.1 channels
    • Supports up to 7.1 channels of HBR (High Bit Rate) digital audio including Dolby Atmos, Dolby TrueHD, DTS:X, and DTS-HD Master Audio
    • Supports the use of DVI sources and DVI displays up to 1080p Full HD and 1920x1200 (WUXGA), with HDMI-to-DVI adapters (not included)
    • Front Panel Push button Input Selector routes one of the 4 connected sources to the display, or "Blocks" (turns off) the input
    • RS-232 Serial interface for use with an automation control system
    • IP control via Telnet, UDP, and the built-in web server interface
    • IR remote control
    • Small surface-mountable IR Extender module allows the switcher to be hidden away behind the display or in the equipment closet
    • Gefen Syner-G software's Discovery and Show-Me features simplify initial IP configuration
    • In-field firmware update via Web Server Interface
    • Long Reach Power (LRP) provides 500 mA at 5V on pin 18 of HDMI output. Enables select extender devices to be powered through their HDMI input port
    • Locking power connector
    • Low-profile, surface-mountable enclosure
    Gefen EXT-UHD600-41 Built-in EDID Emulation
    Gefen EXT-UHD600-41 IP Control

    EXT-UHD600-41 Package Contents

    • 1 x Ultra HD 600 MHz 4x1 Switcher for HDMI w/ HDR
    • 1 x 5V Power Supply w US/EU/UK/AU plugs
    • 1 x IR Extender Module (EXT-RMT-EXTIRN)
    • 1 x Hand-held IR Remote
    • 2 x Surface Mounting L-Brackets
    • 4 x M3 6 mm Machine screws for mounting the L-Brackets to unit
    • 2 x 6-32 5 mm Machine screws for mounting the unit to Gefen EXT-RACK-1U-GRY (available separately)
    • 4 x Self-Adhesive Rubber Feet
    • 1 x Quick-Start Guide

    Gefen EXT-UHD600-41 Specifications

    Gefen EXT-UHD600-41 HDR High Dynamic Range

    Gefen EXT-UHD600-41 Brochure (PDF)
    Gefen EXT-UHD600-41 Manual (PDF)

    Video/Audio
    Max Pixel Clock600 MHz
    Video In4 x HDMI Type A 19-pin female
    Video Out1 x HDMI Type A 19-pin female (Pin 18 Current: 5V:500mA)
    Other Connectors
    RS-232 Serial1 x DB-9 female
    Ethernet1 x RJ45
    IR
    Sensor1 x Located on Front Panel
    IN/Ext Port1 x 3.5mm mini stereo jack
    Power
    IndicatorLED Blue, front panel
    ConnectorDC Power Connector, locking
    Supply5V DC
    Consumption7W
    Environmental
    Operating Temperature32°F - 122°F (0-50°C)
    Storage Temperature-4°F - 185°F (-20-85°C)
    Humidity5-90% RH, Non-condensing
    MTBF300,000 Hrs
    Mechanical
    Width8.4 in. (213mm)
    Height1 in. (25mm)
    Depth3.7 in (93mm)
    Weight0.75 lbs (0.3 kg)
    Question: Do you actually have a Gefen EXT-UHD600-41 in stock available for shipping??
    Answer: Thank you for your inquiry,

    As of 11/16/2016 (9.50a MT), we currently have 6 units in-stock and ready to ship from California.


    For the fastest and most up to date stocking information, please feel free to contact your KVM Switches Online Sales representative directly.
