Gefen VGA and Serial Extender

How it Works

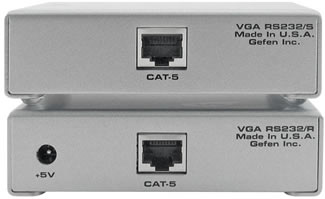

The VGA RS232 Extender sender unit connects to your source using the supplied VGA and RS-232 cables. The receiver unit connects to your display and your Serial (RS-232) device - up to 330 feet away. Connect the sender and the receiver to each other using a single CAT-5 cable.

Note: This VGA RS232 Extender is analogous to the VGA Extender LR video wise. It has a trim pod and dip switches for fine video adjustment.

Features:

• One CAT-5 cable for extension
• Maintains 1920 x 1200 x 75 resolution video
• Installs in seconds

Specifications:

• Serial extension conforms to RS-232C standard
• Video Amplifier Bandwidth: 350 MHz
• Actual Bandwidth: 120 MHz
• Input Video Signal: 1.2 Volts p-p
• Input Sync Signal: 5 Volts p-p (TTL)
• Horizontal Frequency Range: 15-70 KHz
• Vertical Frequency Range: 30 - 170 Hz
• Video In: HD-15 Male
• Video out: HD-15 Female
• Serial Input: 9-Pin Female
• Serial Output: 9-Pin Male
• Link Connector: RJ-45
• Power Supply: 5 VDC (External)
• Power Consumption: 5 Watts (max.)
• Dimensions: (4 in./101.6mm) W x (1.125 in./28.575mm) H x (3 in./76.2mm) D
• Shipping Weight: 3 lbs

Package Includes:

• VGA RS232 Extender Sender
• VGA RS232 Extender Receiver
• 6 foot VGA cable (M-F)
• 6 foot Serial cable
• Two 5V external power supplies

UPC 845344001456
EAN 0845344001456
