Multi-Format 3x3 (9 out) 1080p HD Video Wall Processor
EZW3X3-S
Save $662.12

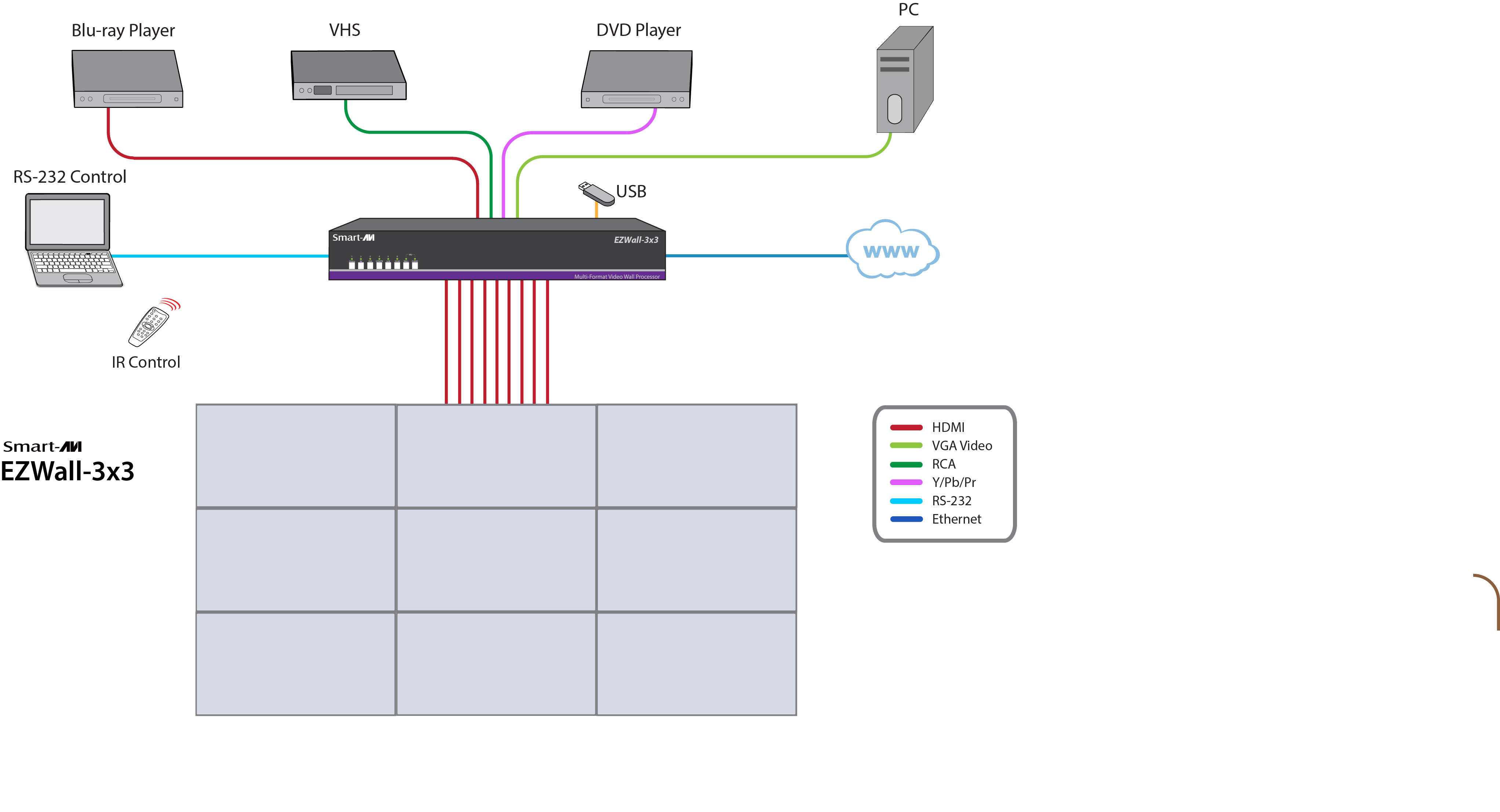

The EZWall-Pro from SmartAVI is the perfect video wall solution for a wide variety of environments. With nine single-link DVI outputs, users can create an attractive and dynamic 3x3 video wall display.
The new EZWall-Pro is capable of stretching any HD display over four screens, while maintaining any resolution up to 1920x1080 on each screen. This powerful new version stretches the video image in multiple ways, including Wall Mode and Clone Mode. Configurations stretch up to 3x3 screens, excellent for airports, classrooms, retail spaces, and restaurants.
Product Benefits and Features
- Nine Screen (3x3) Multi-Layout, Multi-Format Video Wall Controller
- Four DVI Single-Link Outputs
- Inputs: One HDMI, One VGA, One S-Video, One Composite, One Y/Pb/Pr
- Supports Playing Media via USB port
- Internal EDID Tables
- 1920x1080 Output Resolution
- No additional hardware or software required
- Supports Control via Ethernet, IR and RS-232
- HDCP Compliant
| Mechanical | |
| Width | 17.125 in (435 mm.) |
| Height | 3.625 in. (92.08 mm.) |
| Depth | 7 in. (177.8 mm.) |
| Weight | 5 lbs. (2.27 kgs.) |
| Video | |
| DVI Format | Single-Link |
| Output Resolutions | Up to 1920 x 1080 @ 60Hz |
| Input Resolutions | Up to 1920 x 1080 |
| Input Video Signal | 1.2 volts |
| Input DDC Signal | 5 volts |
| Outputs | (9) DVI-D |
| Inputs | (1) HDMI, (1) VGA, (1) Composite, (1) S-Video, (1) Y/Pb/Pr, (1) USB 2.0 Type B |
| Audio | (1) 3.5 mm input, (1) 3.5 mm output |
| HDCP Compliance | 1.0/2.0 |
| Controls | |
| Front Panel | Tact Switches with OSD |
| RS-232 | DB9 Female |
| Remote | IR NEC 38 kHz |
| Ethernet | RJ-45 |
| Other | |
| Power | 110-220V Internal |
| Power Supply Approvals | UL, CE, CSA, CEC, RoHS |
| USB Media Player | |
| Type | USB 2.0 Type B |
| Video Formats | MJPEG, MPEG-1, MPEG-2, MPEG-4, Vvid, DivX H.264 |
| Max Resolution | 1920x1080 @ 30fps |
| Max Data Rate | 20 Mbps |
| Audio Formats | MP3, WMA, AAC, MP2, PCM, AC3 |
| Photos | Max resolutions: JPEG - 15360x8640 BMP - 9600x6400 PNG - 9600x6400 |
| Other | Max TXT resolution: 1200x800 Max ANSI/UNICODE GB/UTF8 file size: 1MB |
UPC 813280021326
EAN 0813280021326
