Multi-Format 4x4 (12 out) 1080p HD Video Wall Processor
EZW4X4-S
Save $882.90
The EZWall-4x4 from SmartAVI is the perfect video wall solution for a wide variety of environments. With sixteen single-link DVI outputs, users can create an attractive and dynamic 4x4 video wall display.

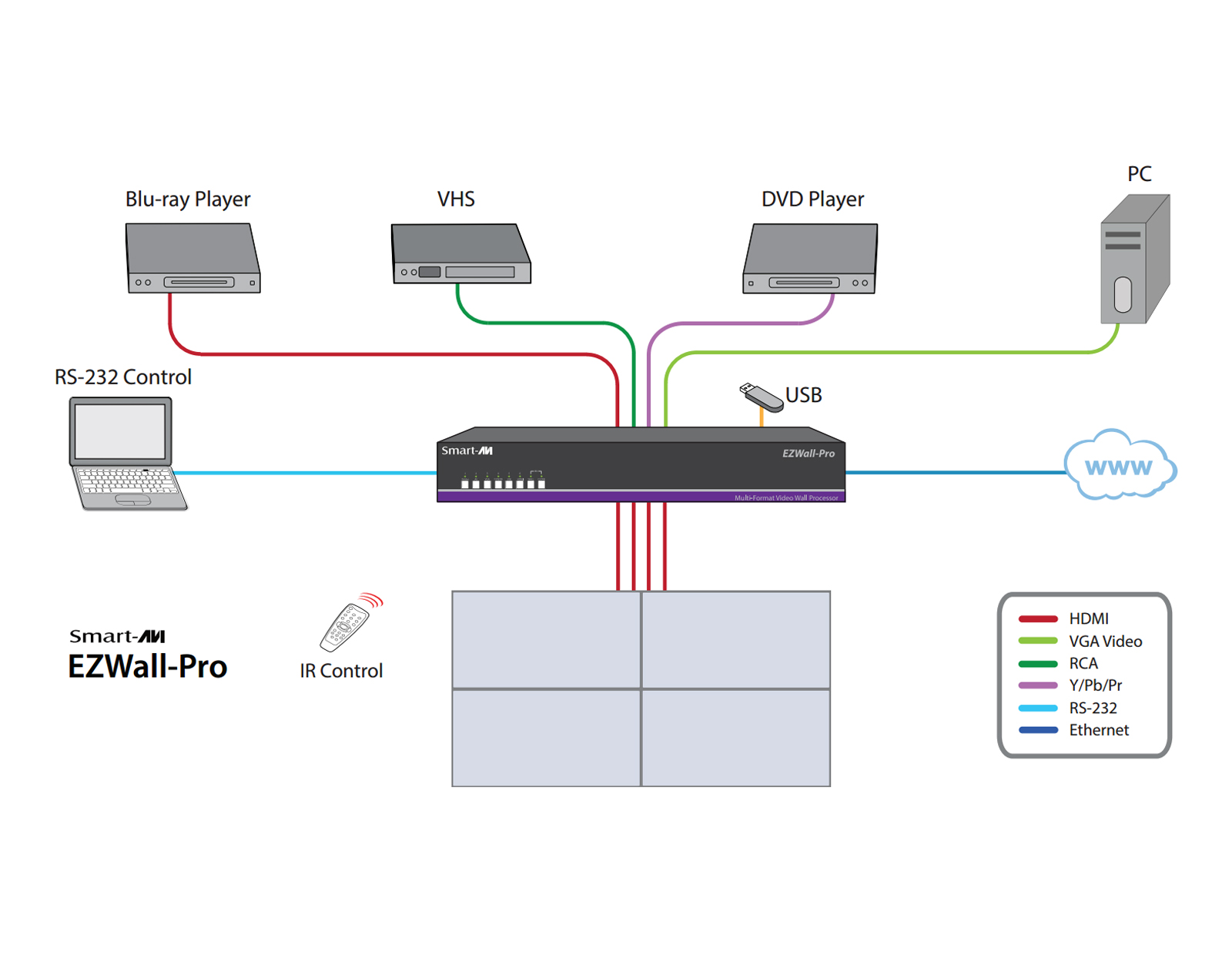

The EZWall-Pro includes six different types of video inputs to ensure it is compatible with as many common video sources as possible. Inputs include HDMI, VGA, S-Video, and Y/Pb/Pr capabilities. The device also includes a fully-integrated USB media player, as well. No matter the format of the video users may want to display, the EZWall-4x4 is clearly the most flexible video wall solution currently available.
Product Benefits and Features
- Sixteen Screen (4x4) Multi-Layout, Multi-Format Video Wall Controller
- Four DVI Single-Link Outputs
- Inputs: One HDMI, One VGA, One S-Video, One Composite, One Y/Pb/Pr
- Supports Playing Media via USB port
- Internal EDID Tables
- 1920x1080 Output Resolution
- No additional hardware or software required
- Supports Control via Ethernet, IR and RS-232
- HDCP Compliant
| Mechanical | |
| Width | 17.125 in (435 mm.) |
| Height | 3.625 in. (92.08 mm.) |
| Depth | 7 in. (177.8 mm.) |
| Weight | 5 lbs. (2.27 kgs.) |
| Video | |
| DVI Format | Single-Link |
| Output Resolutions | Up to 1920 x 1080 @ 60Hz |
| Input Resolutions | Up to 1920 x 1080 |
| Input Video Signal | 1.2 volts |
| Input DDC Signal | 5 volts |
| Outputs | (12) DVI-D |
| Inputs | (1) HDMI, (1) VGA, (1) Composite, (1) S-Video, (1) Y/Pb/Pr, (1) USB 2.0 Type B |
| Audio | (1) 3.5 mm input, (1) 3.5 mm output |
| HDCP Compliance | 1.0/2.0 |
| Controls | |
| Front Panel | Tact Switches with OSD |
| RS-232 | DB9 Female |
| Remote | IR NEC 38 kHz |
| Ethernet | RJ-45 |
| Other | |
| Power | 110-220V Internal |
| Power Supply Approvals | UL, CE, CSA, CEC, RoHS |
| USB Media Player | |
| Type | USB 2.0 Type B |
| Video Formats | MJPEG, MPEG-1, MPEG-2, MPEG-4, Vvid, DivX H.264 |
| Max Resolution | 1920x1080 @ 30fps |
| Max Data Rate | 20 Mbps |
| Audio Formats | MP3, WMA, AAC, MP2, PCM, AC3 |
| Photos | Max resolutions: JPEG - 15360x8640 BMP - 9600x6400 PNG - 9600x6400 |
| Other | Max TXT resolution: 1200x800 Max ANSI/UNICODE GB/UTF8 file size: 1MB |
UPC 813280021333
EAN 0813280021333
