Belkin OmniView PRO3 USB & PS/2 4-Port KVM Switch

F1DA104Z

$295.99

Discontinued
For upgrade or replacement options: Contact Us

The Belkin F1DA104Z is an OmniView PRO3 4-port USB & PS/2 KVM Switch which provides server control with extraordinary performance. This 4-port KVM switch enables network administrators to monitor and control up to four USB- and PS/2-platform servers from a single console. Designed to grow along with your server network, the Switch can be daisy-chained together using dedicated daisy chain ports with other OmniView PRO Series KVM or SMB KVM Switches to support up to 256 servers.

Belkin OmniView F1D104Z Front & Backside
Belkin OmniView F1D104Z Back View

*Note: Cables are not included.

Belkin 4-Port USB & PS/2 KVM Switch Features:

  • Micro-Cabling Technology reduces cable bulk by 55% when compared to conventional KVM cabling
  • USB & PS/2 compatibility gives expanded connectivity in a mixed server environment
  • Dedicated Daisy-Chain ports let you expand your KVM configuration without sacrificing CPU ports
  • Saves setup time and simplifies viewing and switching between multiple servers with OSD
  • Provides continuous server monitoring with programmable AutoScan and hot keys
  • Ensures consistent compatibility with flash-upgradeable firmware
  • Also available in 8- and 16-port models

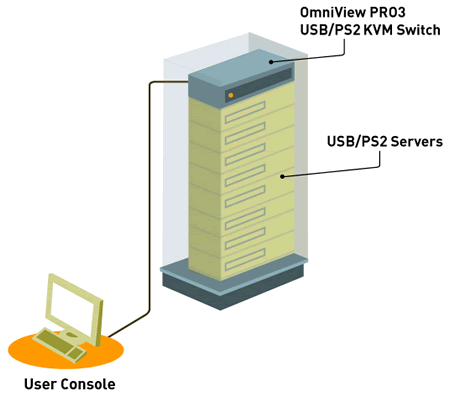

Belkin OmniView PRO3 USB & PS/2 KVM Switch Diagram
Belkin OmniView PRO3 USB & PS/2 KVM Switch Diagram

Belkin F1D104Z Specifications:

Mechanical
Height 1.75 in. (44.5 mm.)
Width 11 in. (279 mm.)
Depth 6 in. (150 mm.)
Weight 5.3 lbs. (2.4 kg.)
Environmental
Operating Temperature 32° to 104° F (0~40° C)
Storage Temperature -4° to 140° F (20~60° C)
Humidity 0-80% RH, non-condensing
Power 12V DC, 1A power adapter, center-pin-positive polarity
No. of Servers Supported 4 (256 servers max. via daisy-chaining)
Ports
Direct Port Selectors 4
Flash-Upgrade Port RJ11
Daisy-Chain Ports DB25 female
CPU Ports SCSI-50
Monitor Port VGA (HDDB15 female)
Daisy-Chain Maximum of 16 OmniView KVM Switches
Video
Max. Resolution Up to 1920x1440 @ 75Hz
Monitors Supported CRT and LCD (with VGA support)
Input
Keyboard Input PS/2 (miniDIN6), USB (Type A)
Mouse Input PS/2 (miniDIN6), USB (Type A)
Enclosure Metal enclosure with high-impact
plastic faceplate
Question: Does the 4 port Belkin F1DA104Z Omniview Pro3 KVM come with cables for the hosts? What cable lengths are available?
Answer: Unfortunately, this KVM does not come with any cables.
Compatible cables include:

USB:
F1D9401-06 Dual-Port KVM Cable, 6 ft., USB
F1D9401-12 Dual-Port KVM Cable, 12 ft., USB

PS/2:
F1D9400-06 Dual-Port KVM Cable, 6 ft., PS/2
F1D9400-10 Dual-Port KVM Cable, 10 ft., PS/2
F1D9400-15 Dual-Port KVM Cable, 15 ft., PS/2
