Belkin OmniView PRO3 USB & PS/2 8-Port KVM Switch
F1DA108Z
Download the
F1DA108Z Manual (PDF)
The Belkin F1DA108Z is an OmniView PRO3 8-port USB & PS/2 KVM Switch which provides server control with extraordinary performance. This 8-port KVM switch enables network administrators to monitor and control up to four USB- and PS/2-platform servers from a single console. Designed to grow along with your server network, the Switch can be daisy-chained together using dedicated daisy chain ports with other OmniView PRO Series KVM or SMB KVM Switches to support up to 256 servers. *Note: Cables are not included. F1DA108Z Manual (PDF)
Belkin 8-Port USB & PS/2 KVM Switch Features:
- Micro-Cabling Technology reduces cable bulk by 55% when compared to conventional KVM cabling
- USB & PS/2 compatibility gives expanded connectivity in a mixed server environment
- Dedicated Daisy-Chain ports let you expand your KVM configuration without sacrificing CPU ports
- Saves setup time and simplifies viewing and switching between multiple servers with OSD
- Provides continuous server monitoring with programmable AutoScan and hot keys
- Ensures consistent compatibility with flash-upgradeable firmware
- Also available in 4- and 16-port models

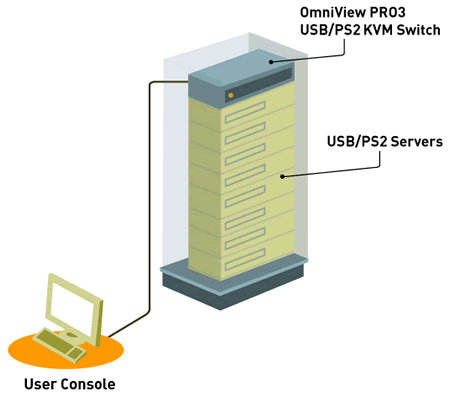

Belkin OmniView PRO3 USB & PS/2 KVM Switch Diagram
Belkin F1D108Z Specifications:
| Mechanical | |
| Height | 1.75 in. (44.5 mm.) |
| Width | 17.25 in. (438 mm.) |
| Depth | 7.5 in. (190 mm.) |
| Weight | 9.2 lbs. (4.2 kg.) |
| Environmental | |
| Operating Temperature | 32° to 104° F (0~40° C) |
| Storage Temperature | -4° to 140° F (20~60° C) |
| Humidity | 0-80% RH, non-condensing |
| Power | 12V DC, 1A power adapter, center-pin-positive polarity |
| No. of Servers Supported | 8 (256 servers max. via daisy-chaining) |
| Ports | |
| Direct Port Selectors | 8 |
| Flash-Upgrade Port | RJ11 |
| Daisy-Chain Ports | DB25 female |
| CPU Ports | SCSI-50 |
| Monitor Port | VGA (HDDB15 female) |
| Daisy-Chain | Maximum of 16 OmniView KVM Switches |
| Video | |
| Max. Resolution | Up to 1920x1440 @ 75Hz |
| Monitors Supported | CRT and LCD (with VGA support) |
| Input | |
| Keyboard Input | PS/2 (miniDIN6), USB (Type A) |
| Mouse Input | PS/2 (miniDIN6), USB (Type A) |
| Enclosure | Metal enclosure with high-impact plastic faceplate |
Question: Is this rack mountable ?
Answer: Yes, the F1DA108Z is rackmountable in standard 19-inch racks with the included adjustable mounting brackets and screws.
Question: does this have audio
Answer: Unfortunately no, this product does not support Audio.
Question: how do you switch from one input to the other from the keyboard
Answer: Thank you for your inquiry. Hot-key sequences to switch focus, as specified in the manual, are:
[scroll lock], [scroll lock], [Arrow Up] - Previous host
[scroll lock], [scroll lock], [Arrow Down] - Next host
[scroll lock], [scroll lock], [01,02.,,,16] - Host by port
Question: Can you provide a link possibly to a firmware update for OmniView?? PRO3 8-Port USB & PS/2 KVM Switch Part # F1DA108Z I have not been able to locate one specific on Belkins support site. Thanks
Answer: Thank you for your patience. We have heard back from Belkin. Unfortunately, they do not have a link to a firmware upgrade for this KVM.
Question: Whether the switch has SNMP support
Answer: Unfortunately no, this switch does not support SNMP. However, this IP KVM by Raritan does: https://www.kvm-switches-online.com/dlx-108.html
Question: What are the compliances CE, FCC, CSA, RoHS etc.?
Answer: The Belkin OmniView PRO3 F1DA108Z complies with FCC rules for Electromagnetic Compatibility, meets EU Directive 2004/108/EC and is CE-marked accordingly:
EN55022:1998 + A1:2000 + A2:2003
EN 61000-3-2:2000 + A2:2005
EN61000-3-3:1995+A1:2001 + A2:2005
EN55024:1998+A1:2001 + A2:2003
IEC61000-4-2:1995 A1:1998 + A2:2000
IEC61000-4-3:2002 + A1:2002
IEC61000-4-4:2004
IEC61000-4-5:1995 + A1:2000
IEC61000-4-6:1996 + A1:2000
IEC61000-4-8:1993 + A1:2000
IEC61000-4-11:2004
Question: hello, a friend once told that i can browse on MULTIPLE monitors connected to a KVM SWITCH, just wanted to know if yours can do it? thanks
Answer: Thank you for your inquiry. There are a number of Dual monitor KVM units on the market today. Unfortunately, this Belkin unit is not one of them. Here is a selection of some of the dual/multi-monitor KVMs we offer: https://www.kvm-switches-online.com/dual-head-kvm-switch.html.
You should also note that a dual/multi-monitor KVM will not add multi-monitor capability to a computer that does not already have multiple monitor capability
Question: Can one use this to control PCs and not servers.
Answer: Thank you for your inquiry. Yes, this unit will support a PC, as long as each machine meets the erquired specifications. This particular KVM switch is for USB and/or PS/2 enabled computers with single VGA ports. The operating systems supported include SunSoft Solaris 8, Novell NetWare 5.x, Microsoft DOS 5.x or later, Apple MacOS X, Microsoft Windows Server 2003, Red Hat Linux 8.x, Microsoft Windows 95/98/ME/NT/2000/XP, Microsoft Windows Vista.
It does not appear this KVM is compatible with Windows 7 or Windows 8.
Question: Is there flash-upgrade firmware available so one can use with XP, Vista, Windows 7, and 8.1
Answer: Thank you for your inquiry. There is a firmware upgrade available for this switch located at the Belkin support site: http://www.belkin.com/us/support-article?rnId=8649
Unfortunately, due to fundamental changes in the way Windows uses the monitor's Extended display identification data (EDID), to be compatible with Windows 7 and 8.1, this switch would likely need a hardware upgrade.
That being said, according to Belkin, this switch should work with the following operating systems SunSoft Solaris 8, Novell NetWare 5.x, Microsoft DOS 5.x or later, Apple MacOS X, Microsoft Windows Server 2003, Red Hat Linux 8.x, Microsoft Windows 95/98/ME/NT/2000/XP, Microsoft Windows Vista.
Question: Can you please tell me which 8 port switch will work with XP, vista, W7 and W8.1. Hard to find one and needs to be as cheap as possible.
Answer: Thank you for your inquiry. We are not hearing much in the way of Windows 8.1 compatibility. We suspect that Windows 8 and KVMs will have the same trouble as Windows 7 and KVMs. The main issue is the way in which Windows 7 uses the EDID/DDC (Extended display identification data/Display Data Channel) information. It continuously polls for the data, so you need to find a switch the continuously provides the monitor data to the target machines. Unfortunitly, the older, cheaper KVMs just won't have that funcitonality.
This Adder unit, https://www.kvm-switches-online.com/avx1008.html, provides DDC emulation that should work with Windows 7 and would likely work with Windows 8. Due to the varied nature of user environments however, we could not 100% guarantee compatibility.
Question: Will this switch work with W7 and W8.1, Belkin OmniView PRO2 - KVM switch - 8 ports - 1 local user - 1U - stackable
Answer: Thank you for your inquiry. Due to the new way in which Windows 7 and 8 handle monitor EDID information and USB peripherals, older switches, like the OmniView PRO2, may have issues with these newer operating systems. Mainly issues will arise with the monitor information for the non-active targets. They may "forget" the resolution settings for the attached monitor.
Question: TRENDnet TK-802R 8-Port PS/2 Rack Mount KVM Switch with OSD, Will this switch work with W7 and W8.1
Answer: Thank you for your inquiry. We are not familiar with that TRENDnet product. Having briefly looked at the specs however, we would be reluctant to say that it would definitely work with Windows 7 or Windows 8.1. Since it is VGA and PS/2 KVM, it is entirely possible it will work just fine, but we would suggest contacting the manufacturer for specific compatibility.
Question: If this compatible for OS Windows Server 2012
Answer: Thank you for your inquiry. The specifications as listed by Belkin include the following operating systems: OS Required: SunSoft Solaris 8, Novell NetWare 5.x, Microsoft DOS 5.x or later, Apple MacOS X, Microsoft Windows Server 2003, Red Hat Linux 8.x, Microsoft Windows 95/98/ME/NT/2000/XP, Microsoft Windows Vista. Unfortunately, Windows Server 2012 is not listed.
As this is a hardware based solution, that does not require any drivers or software, in the past we would not have hesitated to say that it would function with a particular operating system. Now however, newer operating systems like Windows 7 and later, have changed how they deal with display identification and USB peripherals. This has caused some older KVMs to lose functionality.
Long story short, it is likely this switch would work with Windows Server 2012, but it may not have optimal and/or full functionality and we could not guarantee compatibility.
Question: What is the part # for the cables?
Answer: Thank you for your inquiry. The cables for this unit are -
For USB: F1D9401-12 (https://www.kvm-switches-online.com/f1d9401-12.html) or F1D9401-06 (https://www.kvm-switches-online.com/f1d9401-06.html)
For PS/2:F1D9400-06 (https://www.kvm-switches-online.com/f1d9400-06.html) or F1D9400-10 (https://www.kvm-switches-online.com/f1d9400-10.html).
Question: Hi, I will to know if this product is conform CSA or cUL standard. Regard
Answer: Thank you for your inquiry. According to the manufacturer, the F1DA108Z is UL certified.
Question: Is this fully compatipable with the discontinued F1DA108T?
Answer: Thank you for your inquiry,
The Belkin PRO3 (F1DA108Z) KVM switches are compatible with PRO2 (F1DA108T) KVM switches. If you want to cascade the units, the F1DA108Z has to be configured as the primary device.
However, the Keyboard-Video-Mouse cables used for the F1DA108Z would be different from the ones used with the F1DA108T.
If you have any questions or concerns or would like a recomendation based on your setup, please feel free to contact your KVM Switches Online sales reprasentative directly at 1-877-586-6654, at sales@kvm-switches-online.com, or via our online Chat functionality.
