The Belkin F1DS104L is a 4-port VGA & USB SOHO KVM Switch which allows you to share your monitor, keyboard, and mouse with up to four USB computers. You can also connect one set of speakers and use them for all your computers. The SOHO KVM Switch helps to increase your efficiency and productivity at home or in the office by reducing desktop clutter while keeping access to all of your programs and files spread across multiple computers.
Note: 6ft cable is included

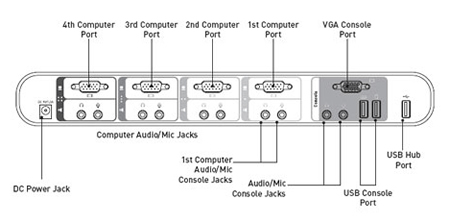

Belkin F1DS104L Diagram
Belkin F1DS104L Features:
- Switches easily between Mac computers and PCs
- Front-panel buttons with NEW LED indicator lights allow you access audio and video content from multiple computers simultaneously
- Requires no software for installation
- Includes a built-in USB 2.0 hub for connecting your peripherals
- Included cables are color-coded to match the front buttons and back panel for trouble-free installation
- Now supports hot-key functionality for optional switching
- Supports monitors with VGA connections
- Supports USB keyboards and mice
- Supports USB-based computers
Belkin F1DS104L Specifications:
| Mechanical | |
| Height | 12.5 in. (317.5 mm.) |
| Width | 5.5 in. (139.7 mm.) |
| Depth | 5.5 in. (139.7 mm.) |
| Weight | 1.50 lbs (0.68 kg) |
| Enclosure | High-impact plastic |
| Environmental | |
| Operating Temperature | 32° to 104° F (0 to 40° C) |
| Storage Temperature | -20° to 140° F (-20 to 60° C) |
| Power Requirements | 5V DC, 2.6A |
| No. of Users Supported | 1 |
| No. of Computers Supported | 4 |
| USB Hub | Yes |
| Ports | USB |
| Video Supported | VGA, SVGA MultiSync |
| Max Resolution | 2048 x 1536 @ 85Hz |
| Input/Output | |
| Audio | 3.5 mm jack |
| Microphone | 3.5 mm jack |
| Platforms Supported | Mac, PC |
| LED Indicator | 8 |
| KVM Cables Included | Yes, 6ft cable |
| Warranty | 3 years |
Question: How do I get replacement cables for the F1DS104L Belkin SOHO KVM switch?
Answer: Thank you for your inquiry. The six foot replacement cable, P/N: F1D9103-06, can be found here: https://www.kvm-switches-online.com/f1d9103-06.html.
Answer: Thank you for your inquiry. The six foot replacement cable, P/N: F1D9103-06, can be found here: https://www.kvm-switches-online.com/f1d9103-06.html.
