DVI-D, Stereo Audio, PS2, RS232, Multimode Fiber Transmitter
FDX-TX2000S

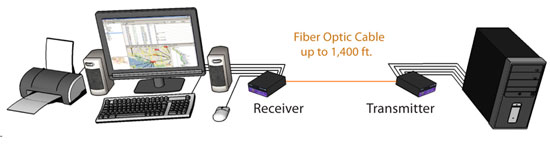

The FDX-2000 consists of a transmitter and receiver that extend KVM, DVI-D, audio and RS-232 signals. It is a professional quality KVM capable of extending signals up to 1,400 feet over a single multimode fiber optic cable.
*Transmitter Only.
Applications
- Corporate or Educational Presentations
- Financial (Remote Servers/User Control)
- Call Centers
- Industrial (Long-Range Workstation Isolation)
- Information Terminals/Kiosks
- Airport Installations (Air Traffic Control/Passenger Information)
- KVM Extension where Exceptional Quality of Signal is Crucial
- Medical (Remote Operation Away from Sensitive/Magnestic Equipment)
- Recording (for Large Studios where Editing/Mixing Stations are Compact and/or Require Complete Silence)
Features
- Top Signal Quality at Maximum Extension over Multimode Fiber (1,400 ft.)
- Superior Image Quality at all Resolutions
- Video Resolutions up to 1920 x 1200 at 60Hz (1280 x 1024 at 75Hz)
- Customizable/Programmable DDC Table
- Supports PS/2 Keyboard/Mouse
- Supports Stereo Audio
- Supports DVI-D
- Supports RS-232 Control from 3600bps to 115,000bps
- Supports all PC/AT and PS/2 keyboards Fully Transparent
- Fiber Plug Type LC
- Compatible With all Operating Systems
- Compatible With all Major KVM Switches
- Compact Metal Casing

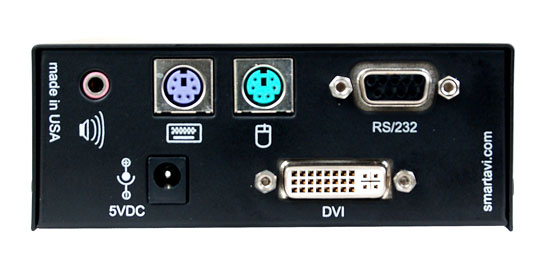

SmartAVI FDX-200S Transmitter Specifications
| Mechanical | |
| Height | 1.7 in. (4.3 cm) |
| Width | 4.5 in. (11.43 cm.) |
| Depth | 5.5 in. (13.97 cm.) |
| Input Interface | DVI-D Female (Single-link) |
| Resolution | 1920x1200 at 60Hz |
| Audio Bandwidth | 15 MHz, 0db |
| RS-232 | Data up to 115,000 bps |
UPC 813280021425
EAN 0813280021425
