IOGEAR MiniLink 10' PS2 KVM Cable
G2L1003P
The IOGEAR G2L1003P is a 10ft PS/2 Bonded KVM cable which allows you to connect your PS/2 computers to your PS/2 KVM switch. IOGEAR's custom-made cables are designed to provide the highest signal capacity with the lowest signal loss. This important technology produces the highest quality video output - even after long distance transmission or in the most electronically noisy environments such as server cabinets. IOGEAR's premium custom-made KVM cables guarantee optimum signal integrity for high-grade server needs. The keyboard and mouse cables are made of double-sealed 22-gauge wire and are neatly wrapped with a heavy-duty video cable for simplified connections.

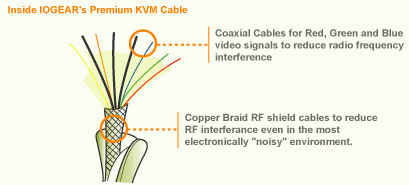

IOGEAR MiniLink KVM Cable Diagram
IOGEAR PS/2 KVM Cable Features:
- Custom made for superb signal quality
- Neat and tidy layout - no tangled cable mess
- Double-shielded 22 gauge keyboard and mouse cables and a UL-2919 video cable
IOGEAR G2L1001P Specifications:
| Mechanical | |
| Length | 10 ft. (3.048 m.) |
| Weight | 1.8 lbs. (0.81 kg.) |
| CPU Connectors | |
| Mouse | 6 pin mini-DIN Male |
| Keyboard | 6 pin mini-DIN Male |
| Monitor | 15 pin HDB Male |
| KVM Side Connections | |
| Keyboard | 6 pin mini-DIN Male |
| Mouse | 6 pin mini-DIN Male |
| Monitor | 15 pin HDB Female |
| Requirements | Computers with PS/2 and VGA connections. |
UPC 672792505041
EAN 0672792505041
