IOGEAR MiniView III 4-Port USB KVM Switch
GCS1714
MiniView III GCS1714 USB KVMP Switch - 4-Port MiniView USB KVM Switch with peripheral sharing & OSD
Control 4 computers and multiple USB peripheral devices with a single keyboard, monitor and mouse
IOGEAR's new MiniView III USB KVM and Peripheral Sharing Switch goes beyond standard KVM switches by offering USB peripheral sharing capabilities. You can save money and space by eliminating the need for extra monitors, keyboards, mice, and peripheral devices such as printers, scanners, zip drives, etc. Up to 127 different USB devices can be daisy chained from this KVMP switch.
Comes with Cables!

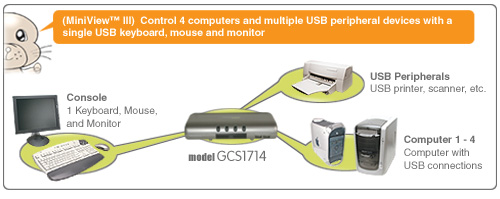

IOGEAR GCS1714 Diagram and Application
IOGEAR GCS1714 Features and Benefits
- Dual functional switch allows 4 USB computers to share one USB console as well as two USB peripheral devices such as printers and scanners
- Conveniently switching USB peripheral devices from one computer to another using Hot Keys or On Screen Display
- Independently assign KVM console and USB devices to any computer
- Fully Compliant with USB 1.1 specifications and delivers a 12 Mbps data transmission rate
- Complete keyboard and mouse emulation for error free booting
- AutoScan Mode to monitor all computers
- LED display for easy status monitoring
- Superior video quality - supports resolutions up to 2048 x 1536
- Easy installation: no software required, hot swappable
- Compact design for easy placement
 |  |  |
| Mouse and keyboard ports placed in front for easy access | 2 USB devices ports to connect USB peripherals such as printers and scanners | The USB Sniffing Technology allows complete USB keyboard and mouse emulation for error free booting |
IOGEAR GCS1714 Requirements
- Computers with USB connections
- Windows 98, 98SE, ME, 2000, XP
- Mac OS 8.6 or greater
- Linux, Unix and other USB supported systems*
- *Additional drivers and support may needed. Sun is *NOT* supported.
IOGEAR GCS1714 Package Contents
- 1 MiniView III KVMP switch GCS1714
- 4 USB KVM bonded cables
- 1 quick start guide
- 1 user manual
- 1 warranty card
- 1 Power Adapter
IOGEAR GCS1714 Specifications
| Function | GCS1714 |
|---|---|
| Computer Connections | |
| Direct | 4 |
| Console Connectors | |
| Keyboard | 1 x USB Type A |
| Monitor | 1 x HDB-15 Female (Std. VGA/SVGA) |
| Mouse | 1 x USB Type A |
| CPU Connectors | |
| Keyboard & Mouse | 4 x USB Type B |
| Monitor | 4 x HDB-15 Male (Std. VGA/SVGA) |
| Peripherals | 2 x USB Type A |
| Dimensions | |
| Height | 1.7 |
| Length | 3 |
| Width | 8 |
| Emulation | |
| Keyboard | Yes |
| Mouse | Yes |
| LEDs | |
| On Line | 4 |
| Selected | 4 |
| Port Selection | Push Button, Hot Keys, or OSD |
| Power | |
| Amps | 2.1 A |
| Voltage | DC 5V |
| Power Consumption | DC 5V 2.1A |
| Scan Interval | 3,5,10,15,20,30,40,60 sec. |
| Video Resolution | 2048 x 1536 (Max.); DDC/ DDC2B/ DDC2AB |
| Weight | 1.55 LBs |
