IOGEAR USB Laptop KVM Switch with File Transfer

GCS661UW6

$99.95

Discontinued
For upgrade or replacement options: Contact Us

Download the
GCS661UW6 Manual (PDF)
The IOGEAR GCS661UW6 is a USB Laptop KVM Switch with File Transfer which combines switching and file transferring between two computers. It allows the user to seamlessly control a second computer with a laptop as the console*. It is useful for people who own a laptop and an older desktop PC and wish to keep using both for various functions or applications.

The KVM features an on-screen toolbar with multiple functions such as file transfer, desktop image scaling and others. With its desktop image scaling, a user can adjust the resolution of the remote screen for the best possible viewing with just the click of a button. The built-in file transfer utility lets the user transfer files, presentations, business information and create backup copies between both computers or from external USB storage devices. The extra USB port provides a means to connect a USB peripheral device, such as an external hard drive to the laptop. Overall the GCS661UW6 offers a complete easy to install out-of-box, Plug & Play solution with no additional cables needed.

*Console refers to the computer connected to a KVM that is doing the primary controlling.

IOGEAR GCS661UW6 Features:

  • Control your second computer via your laptop
  • File Transfer - copy and transfer files between your laptop and desktop computer
  • On-screen one click switching
  • 1 USB 2.0 port for USB storage device sharing
  • Desktop Image Scaling - automatically resizes desktop image onto your laptop screen (console)
  • 3' and 6' long molded-in, all-in-one cabling
  • Compact design features an all-in-one cables (USB 2.0)
  • Supports Windows 2000 or higher, XP, Vista
  • Plug & Play
  • No power adapter required
  • 3-year Limited Warranty

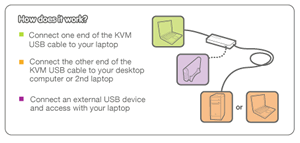

IOGEAR USB Laptop KVM Application Diagram

IOGEAR USB Laptop KVM Application Diagram

Requirements:

  • Computers with USB ports
  • Laptop computer
  • Windows 2000 or higher, XP, Vista

Package Includes:

  • 1 x USB Laptop KVM
  • 1 x Carrying Pouch
  • 1 x User Manual
  • 1 x Warranty Card

IOGEAR GCS661UW6 Specifications:

Mechanical
Height 1.25 in. (3.20 cm.)
Width 3.75 in. (9.50 cm.)
Depth 0.625 in. (1.6 cm.)
Weight 0.22 lb. (0.1 kg.)
Connectors
Console 1 x USB Type A Male
Computer  1 x USB Type A Male
File Transfer Up to 480 Mbps
Housing
Case Plastic
POP Information
10'' Peg Hook 6
6'' Peg Hook 3
Question: ou se trouve le manuel en ligne en fran??ais
Answer: Unfortunately, we could not locate a French version of the manual. We did, however, upload the English version to the products page.
