IOGEAR MiniViewª SE GCS84B KVM Switch - MiniViewª SE 4 Port Desktop KVM Switch, PS/2 A faster Way To Connect! Once again, IOGEAR raised the bar on quality KVMs. These desktop PS/2 KVMs feature the latest in micro-design and technology. Setup is fast and easy; simply plug cables into their appropriate ports. The 2 PS/2 console ports are on the front of the unit for easy and convenient access. IOGEAR's MiniViewª SE GCS84B provides two convenient methods to access the connected computers: use push-button selection switches, located on the unit's front panel; or type Hot Key combinations from the keyboard. There is no better way to save time and money than with IOGEAR's MiniViewª SE GCS84B. Cables Included! |
IOGEAR GCS84B Function |
 |
|
IOGEAR GCS84B Features/Benefits |

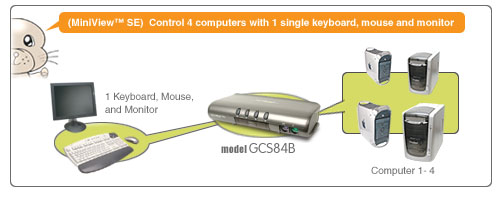

- Use one keyboard, monitor and mouse to control up to four computers
- Works with PS/2 compliant computers
- Operating system independent
- Supports Mac and SUN *
- Plug-n-Play monitor support
- Supports video resolutions up to 2048 x 1536
- Easy to install - no software required
- Easy to operate - push buttons or Hot Keys
- Keyboard and mouse emulation for error free computer booting
- Built in AutoScan mode to monitor all computers
- LED's allow for easy status monitoring
- Increases desk space and productivity
- Decreases power and equipment costs
- Trim-line, compact design
- 3 Year Limited Warranty
-
- * Additional adapters required to supoort Mac DB and SUN
|
 |  |  | PS/2 console placed in front for easy access | No DIP switches, software or power supply needed | VSE: Patented Video Signal Enhancement technology supports ultra high resolution up to 2048 x 1536 | |
IOGEAR GCS84B Requirements |
- PS/2 Enabled/Compliant Computer System
|
IOGEAR GCS84B Package Contents |
- 1 Miniview SE 4-Port KVM switch GCS84B
- 4 sets of premium bonded KVM cables
- 1 installation manual
- 1 quick start guide
- 1 product registration card
|
IOGEAR GCS84B Specifications |
Function | GCS84B | Computer Connections | Daisy Chain or Cascading | 64 (External power supply may needed) | Direct | 4 | Console Connectors | Keyboard | 1 x 6 pin mini-DIN Female (PS/2) | Monitor | 1 HDB-15 Female (Std. VGA/SVGA)- | Mouse | 1 x 6 pin mini-DIN Female (PS/2) | CPU Connectors | Keyboard | 4 x 6 pin mini-DIN Female (PS/2) | Monitor | 4 HDB-15 Male (Std. VGA/SVGA) | Mouse | 4 x 6 pin mini-DIN Female (PS/2) | Dimensions | Height | 1.7 | Length | 3 | Width | 8 | Emulation | Keyboard | PS/2; AT | Mouse | PS/2 | Housing | Case | Metal | LEDs | On Line | 4 | Selected | 4 | Port Selection | Pushbutton Switch / Hot Keys | Power | Amps | 40mA (Max.) | Voltage | DC 9V | Power Consumption | DC 9V 360 mW (Max.) | Scan Interval | 5 sec. | Video Resolution | 2048 x 1536 (Max.); DDC/ DDC2B/ DDC2AB | |
