1:2 Splitter for HDMI 4Kx2K

The GefenToolBox 1:2 Splitter for HDMI 4K x 2K distributes one Ultra Hi-Def source to two Ultra HD displays simultaneously, without loss of quality or resolution. It works with any Ultra Hi-Def source and supports resolutions up to 4K (3840 x 2160 @ 60Hz 4:2:0) and 4K Cinema (DCI) (4096 x 2160 @ 24 or 30Hz 4:4:4). It features Fast Switching Technology, and supports HDCP, Deep Color, 3DTV pass-through, and lossless audio formats such as Dolby¨ TrueHD and DTS-HD Master Audioª.

FST Fast Switching Technology (FST) is a Gefen software implementation for HDMI products. FST was created to improve the lengthy HDMI authentication process, based on the HDMI and HDCP specifications. FST allows connecting/disconnecting or turning ON / OFF of displays without having these activities affect other displays in the same distribution system.

 User Application: The Gefen ToolBox 1:2 Splitter is ideal for retail establishments, sports bars, schools, museums, hospitals, hotel lobbies, and any other installations where Ultra High Definition HDCP-compliant AV content from an HDMI source needs to be displayed simultaneously on up to 2 Ultra HD displays.

 Using the supplied HDMI cable, connect the Ultra Hi-Def source to the HDMI input on the 1:2 Splitter. Connect up to two Ultra HD displays to the HDMI outputs. Connect the included locking power supply to the 1:2 Splitter and to an available electrical outlet. Apply power to the source and displays. The HD source signal will now be seen on both displays at the same time.

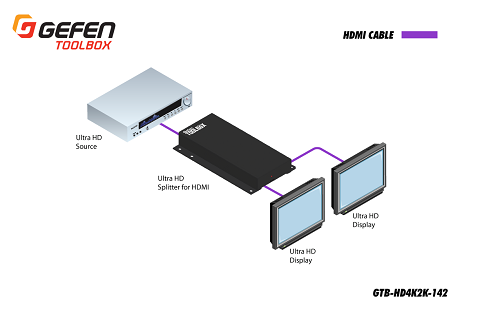

Diagram

Features:

• Simultaneously displays any Ultra Hi-Def source on up to two Ultra HD displays
• Supports resolutions up to Ultra HD 4K (3840 x 2160 @ 60Hz 4:2:0 or 30Hz 4:4:4), 4K Cinema (DCI) (4096 x 2160) @ 24 or 30Hz 4:4:4), and 1080p Full HD
• HDMI 2.0 compliant
• HDCP 1.4 compliant
• Supports 12-bit Deep Color (up to 1080p Full HD)
• 3DTV pass-through
• Lip Sync pass-through
• FST Technology speeds up HDCP authentication process
• Fast and Slow FST Modes
• Advanced EDID Management for rapid integration of source and displays
• Supports LPCM 7.1, Dolby¨ TrueHD, Dolby Digital¨ Plus, and DTS-HD Master Audioª
• Supports the use of DVI sources and DVI displays with HDMI-to-DVI adapters (not included)
• Field-upgradeable firmware using Mini-USB port
• Locking Power Supply
• Surface-mountable

Specifications:

• Maximum Pixel Clock: 300 MHz
• HDMI Input Connector: (1) Type A 19-pin female, locking
• HDMI Output Connectors: (2) Type A 19-pin female, locking
• USB Port: (1) Mini-B
• Power Indicator: (1) LED, blue
• FST Switch: (1) 2-position slide-type
• Audio Switch: (1) 2-position slide-type
• EDID Switch: (1) 2-position slide-type
• DC Power Connector: (1) Locking type
• Power Supply: 5V DC
• Power Consumption: 10 Watts (max.)
• Operating Temperature: +32 to 104 °F (0 to +40 °C)
• Dimensions (W x H x D): 3.0" x 6.5" x 1.0" (76mm x 165mm x 26mm)
• Shipping Weight: 2.5 lbs. (1.1 kg)
