IOGEAR USB to PDA/Serial Adapter
GUC232A

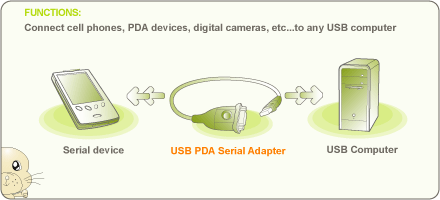

The IOGEAR USB PDA/Serial Adapter (GUC232A) provides you with an external serial (DB- 9 male) Plug-n-Play connection for use with computers, notebooks, and hand held computing devices that support USB. The PDA/USB Serial Adapter has a standard type A USB plug. The IOGEAR GUC232A works great with GPS devices allowing you to convert the serial interface, typically found on GPS units, to USB. This IOGEAR USB PDA/Serial Adapter (GUC232A) provides PDAs, digital cameras, modems, and ISDN terminal adapters with high quality serial connections at a data transfer rate of over 230Kbps. This makes the USB interface transparent to serial peripherals, allowing them to easily interface with USB computers. This eliminates the setup hassle found with traditional serial port connections. This device also supports energy saving suspend and resume operations.
IOGEAR USB PDA/Serial Adapter (GUC232A) Features and Benefits:
- Full Compliance with USB specification v1.1
- Work with serial GPS devices, converts the serial interface on your GPS unit to USB.
- Supports the RS 232 Serial interface
- Supports automatic handshake mode
- Over 230 Kbps data transfer rate
- Supports Remote wakeup and power management
- Provides a 96 byte buffer for each upstream and downstream data transfer
- Easy Installation
IOGEAR USB PDA/Serial Adapter (GUC232A)
IOGEAR USB PDA/Serial Adapter (GUC232A) Requirements:
- For PC Users: 300 Mhz CPU, Windows 98SE, 2000, ME, XP, Available USB port
- For MAC User: Mac G3, Mac OS 8.6 to 9.2, Mac OS 10.2 and up, Available USB port
IOGEAR USB PDA/Serial Adapter (GUC232A) Package Content:
GUC 232A USB to serial adapter cable
Installation CD
User Manual
Warranty/Registration Card
IOGEAR USB PDA/Serial Adapter (GUC232A) Specifications:
| Transfer Rate | 115 Kbps |
| USB Specification | USB 1.1 compliant |
| Operating System Support | Windows 98SE, 2000, ME, XP; MAC OS 8.6 to 9.2 - 10.2 and up |
| Power Consumption | 90mA |
| Cable Length | 12 in. (30.25 cm.) |
| Power Connections | Bus powered |
| Operating Temperature | 20 to 50 degrees (Celsius) |
| Storage Temperature | 0 to 70 degrees (Celsius) |
| Humidity | 20-80% RH, (Non Condensing) |
| Dimensions | |
| Height | 0.64 in. (1.63 cm.) |
| Width | 1.36 in. (3.45 cm.) |
| Length | 2.63 in. (6.68 cm.) |
| Weight | |
| Case Wt. | 13.75 lbs. (6.24 kg.) |
| Package Wt. | 0.44 lbs. (0.2 kg.) |
| Unit Wt. | 0.22 lbs. (0.1 kg.) |
| Housing | |
| Case | Plastic |
| LEDs | |
| On Line | 1 |
| Package Dimensions | |
| Depth | 6 in. (15.24 cm.) |
| Width | 2.65 in. (6.73 cm.) |
| Height | 8.5 in. (21.59 cm.) |
| Case | |
| Case Qty. | 24 |
| Length | 16.5 in. (41.9 cm.) |
| Width | 13.25 in. (33.65 cm.) |
| Height | 18.5 in. (47 cm.) |
UPC 672792550065
EAN 0672792550065
