IOGEAR Cat5 USB Extender
GUCE50
The IOGEAR GUCE50 CAT5 USB Extender is comprised of two units, Local and Remote. These units are interconnected with Cat5, Cat5e, or Cat6 cabling. This USB extender can extend peripherals to locations up to 150 feet away.

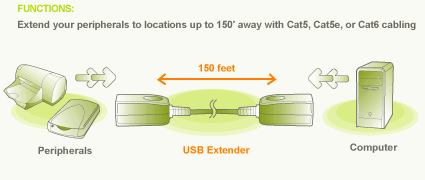

IOGEAR CAT5 USB Extender Application Diagram
IOGEAR USB Extender Features:
- Use Cat5, Cat5e, or Cat6 RJ/45 cabling to extend your USB peripherals up to 150 feet away
- Transparent data extension
- Extremely easy to install
- Compact design, allows for easy placement
- Fully compliant with (1.0, 1.1) USB standards
- For use with any USB compatible computer
- No software required
IOGEAR GUCE50 Package Includes:
- 1 - Remote Unit
- 1 - Local Unit
- 1 - Quick Start Guide
- 1 - Warranty/Registration Card
IOGEAR GUCE50 Specifications:
| Mechanical | |
| Height | 0.93 in. (2.3 cm.) |
| Width | 1.31 in. (3.3 cm.) |
| Depth | 1.93 in. (4.9 cm.) |
| Local Unit Cable Length | 18.0 in. (45.0 cm.) |
| Weight | 0.30 lbs (0.135 kg.) |
| Housing | |
| Case | Plastic |
| Environmental | |
| Operating Temperature | Operating Temperature |
| Storage Temperature | 0 to 70 degrees (Celsius) |
| Humidity | 20-80% RH, (Non Condensing) |
| Power | |
| Amps | 300mA |
| Voltage | 5.0 V |
| Consumption | 5.0 V; 300mA |
| USB | |
| Compliance | USB 1.1 compliant |
| Bandwidth | 12 Mbps (1.5MBps) |
| Operating System Support | Win 98, 98SE, 2000, ME, XP, MAC OS 8.6 or greater |
| Requirements | |
| PC Users | Windows 98, 98SE,2000, ME, XP |
| MAC Users | Mac OS 8.6 or Greater |
Question: how to tell the difference between the local and remote unit
Answer: Thank you for your inquiry. Unfortunately, we cannot track down a manual for this discontinued product to confirm, but we believe the local unit has a USB cable attached (or perhaps a USB type B slot), while the remote unit has a USB type A slot.
Answer: Thank you for your inquiry. Unfortunately, we cannot track down a manual for this discontinued product to confirm, but we believe the local unit has a USB cable attached (or perhaps a USB type B slot), while the remote unit has a USB type A slot.
