IOGEAR 7 Port Hi-speed USB 2.0 Hub
GUH227
The IOGEAR GUH227 7-port USB 2.0 hub provides 7 Hi-Speed USB 2.0 ports for your high-speed connectivity needs. This USB hub is fully compliant to USB 2.0 specifications and provides a data transfer rate of up to 480 Mbps. It supports Windows 98SE, 2000, ME, XP, and Mac OS X 10.2 or later. The MiniHub also supports USB 1.1 devices since it is backward compatible with USB 1.1 specifications.

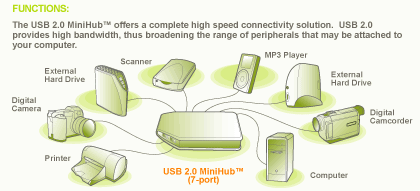

IOGEAR High Speed USB Hub Diagram
IOGEAR USB Hub Features:
- 7 downstream and one upstream ports
- Supports data transfer rate of up to 480 Mbps
- 40 times faster than USB 1.1 products
- Connect up to 127 devices together ( through daisy chaining)
- Plug-n-Play, hot swappable
- Automatically switches to the highest speed supported by peripheral
- Backward compatible with USB 1.1 specifications
- Supports Windows 98, 98SE, 2000, ME, XP, and Mac OS X or later version
- 1 USB 2.0 A-B cable included
IOGEAR GUH227 Package Includes:
- Hi-Speed USB 2.0 Hub
- Power Adapter
- USB A to B Cable (6')
- User Manual
- Warranty Registration Card
IOGEAR GUH227 Specifications:
| Mechanical | |
| Height | 5.9 in. (15 cm.) |
| Width | 3.42 in. (8.7 cm.) |
| Depth | 1.18 in. (3 cm.) |
| Cable Length | 6 ft. (1.83 m.) |
| Weight | 0.32 lb. (0.15 Kg) |
| Environmental | |
| Operating Temperature | 20 to 50 degrees (Celsius) |
| Storage Temperature | 0 to 70 degrees (Celsius) |
| Humidity | 20-80% RH, (Non Condensing) |
| Power | |
| Consumption | 5.0V - 3.7A |
| Connections | DC adapter (included) |
| Connectors | |
| Input | USB Type A |
| Computer | USB Type B |
| Housing | Plastic |
| Ports | 7 downstream, 1 upstream |
| USB Compliance | USB 1.1 and 2.0 compliant |
| Transfer Rate | 480 Mbps |
| Operating System Support | Windows, 98SE, 2000, ME, XP, MAC OS 8.6 or greater |
| LEDs | |
| ACT (Activity) | 7 |
| Requirements | |
| PC Users | Windows 98, 98SE, 2000, ME, XP, Available USB port |
| MAC Users | Mac 8.6 or greater. Requires OS X for USB 2.0, Available USB port |
This product is the replacement for the GUH420.
UPC 881317002877
EAN 0881317002877
