IOGEAR 4 Port Hi-speed USB 2.0 Hub
GUH264
The IOGEAR GUH264 is a 4-port USB 2.0 hub provides four Hi-Speed USB 2.0 ports for your high-speed connectivity needs. This device is fully compliant with USB 2.0 specifications and provides a data transfer rate of up to 480 Mbps. The GUH264 is an updated version of IOGEAR's GUH224. This USB hub supports Windows 98SE, 2000, ME, XP, and Mac OS X 10.2 or later. The MiniHub also supports USB 1.1 devices since it is backward compatible with USB 1.1 specifications.

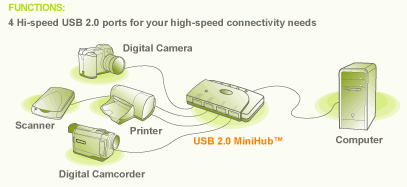

IOGEAR USB 2.0 Hub Diagram
IOGEAR USB Hub Features:
- 4 USB 2.0 ports for easy expansion
- Supports data transfer rate of up to 480 Mbps
- 40 Times faster than USB 1.1 products
- Plug-n-Play, hot swappable
- Backward compatible with USB 1.1 specifications
- Supports Windows 98, 98SE, 2000, ME, XP, and Mac OS X or later version
- 1 x USB 2.0 A-B cable included
- Power Adapter included
IOGEAR GUH264 Package Includes:
- 4-Port Hi-Speed USB 2.0 Hub
- Power Adapter
- USB A to B Cable (6')
- Users Manual
- Warranty Registration Card
IOGEAR GUH264 Specifications:
| Mechanical | |
| Depth | 0.75 in. (2.0 cm.) |
| Width | 2.4 in. (6.2 cm.) |
| Length | 3.75 in. (9.7 cm.) |
| Cable Length | 6 ft. (1.83 cm.) |
| Weight | 2.3 oz. (65 g.) |
| Environmental | |
| Operating Temperature | 20 to 50 degrees (Celsius) |
| Storage Temperature | 0 to 70 degrees (Celsius) |
| Humidity | 20-80% RH, (Non Condensing) |
| Power | |
| Consumption | 5.0V 2.6A |
| Connections | DC adapter (included) |
| Cable Connections | |
| Input | USB Type A |
| Housing | Plastic |
| Ports | 4 downstream, 1 upstream |
| USB Compliance | USB 1.1 and 2.0 compliant |
| Transfer Rate | 480 Mbps |
| Operating System Support | Windows, 98SE, 2000, ME, XP, MAC OS 8.6 or greater |
| LEDs | |
| On Line | 4 |
| Power On | 1 |
| Requirements | |
| PC Users | Windows 98SE, 2000, ME, XP Available USB 2.0 port |
| MAC Users | Mac 8.6 or greater. Requires OS X for USB 2.0 support Available USB 2.0 port |
