SmartAVI Infrared Extender Over CAT5, up to 1000 ft.
HDC-IRS
Save $52.77
Download the
HDC-IRS Manual (PDF)
The SmartAVI HDC-IR allows the extension of InfraRed control signals using single CAT5 UTp (category 5, unshielded twisted pair) cable. HDC-IRS Manual (PDF)
HDC-IR Features:
- Uses easy to install, inexpensive CAT5.
- Output reaches up to 1000 feet (300m).
- Sends IR and Power signals over CAT5
- High ground loop immunity.
- Video cable compensation (automatic).
- Sends Composite Video Stereo Audio, IR and Power signals over CAT5.
- Compatible with line level stereo audio signals.
- High ground loop immunity.
- Built-in lightning, power surge and transient protection.
- Remote units come with buffered outputs.
- Compact enclosure.
- Optional power supply for remote unit.
- Fully compliant with standard modulated IR and the latest IRDA.
- Fully transparent path for all products and data transfers.
- Bi-directional IR.
- Supports any IR Remote Control

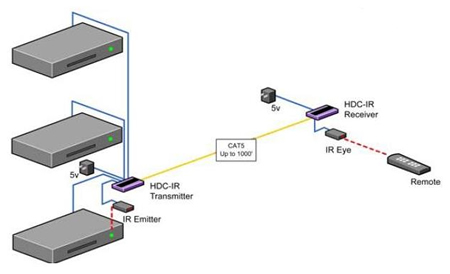

SmartAVI HDC-IR Application Diagram
SmartAVI HDC-IR Specifications:
| Mechanical | |
| Height | 1.0 in. (35 mm.) |
| Width | 2.5 in. (85 mm.) |
| Depth | 2.5 in. (85 mm.) |
| Weight | 0.25 lb. (0.9 kg.) |
| Power Requirements | 5VDC 30mA |
| Signal Type | TTl |
| IR EYE input | |
| IR Frequency Range | 30KHz to 80KHz |
| Capture Distance | Up to 25 ft. |
| Cable Connector | 3.5 mm. stereo jack |
| IR Signal Indicator | Green LED |
| IR Emitter Output | |
| IR Frequency Range | 30KHz to 80KHz |
| Emitter Distance | Up to 10 ft. |
| Cable Connector | 3.5 mm. mono jack |
| IR Signal Indicator | Red LED |
| Box | |
| Power Requirements | 12VDC 1A dongle power up to 250 ft. |
| Cable Link | CAT5 568A or 568B |
UPC 813280021470
EAN 0813280021470
Question: I have a CCTV DVR that I have in a remote room. Is this component compatible to give me control of my DVR?
Answer: If all you need to control your DVR is the IR control (I am not sure if there are security protocols in a CCTV application that would prevent this), then yes this product should work.
We have uploaded the product manual for your convenience.
Question: Hi, I would like to place an order can you please email me as copy of your credit card authorization form. Thank you!
Answer: Thank you for your inquiry.
You can find our credit card order form here: https://www.kvm-switches-online.com/info.html
Question: Hi, do you accept debit cards from the Bahamas. I await your response. Thank you!
Answer: Generally, international orders are accepted on a case-by-case basis with a $1000 minimum and a $100 transaction fee. Also, note that we would require pre-payment via PayPal or wire transfer and both have additional fees associated. In addition, we require the use of a 3rd party shipping account to bill all shipping charges, customs, duties and fees.
If you would like to proceed, please give us a call at 1-877-586-6654.
Answer: If all you need to control your DVR is the IR control (I am not sure if there are security protocols in a CCTV application that would prevent this), then yes this product should work.
We have uploaded the product manual for your convenience.
