8-Port 4K Ultra HD KVM Switch with USB 2.0 Sharing
HDN-8P-S

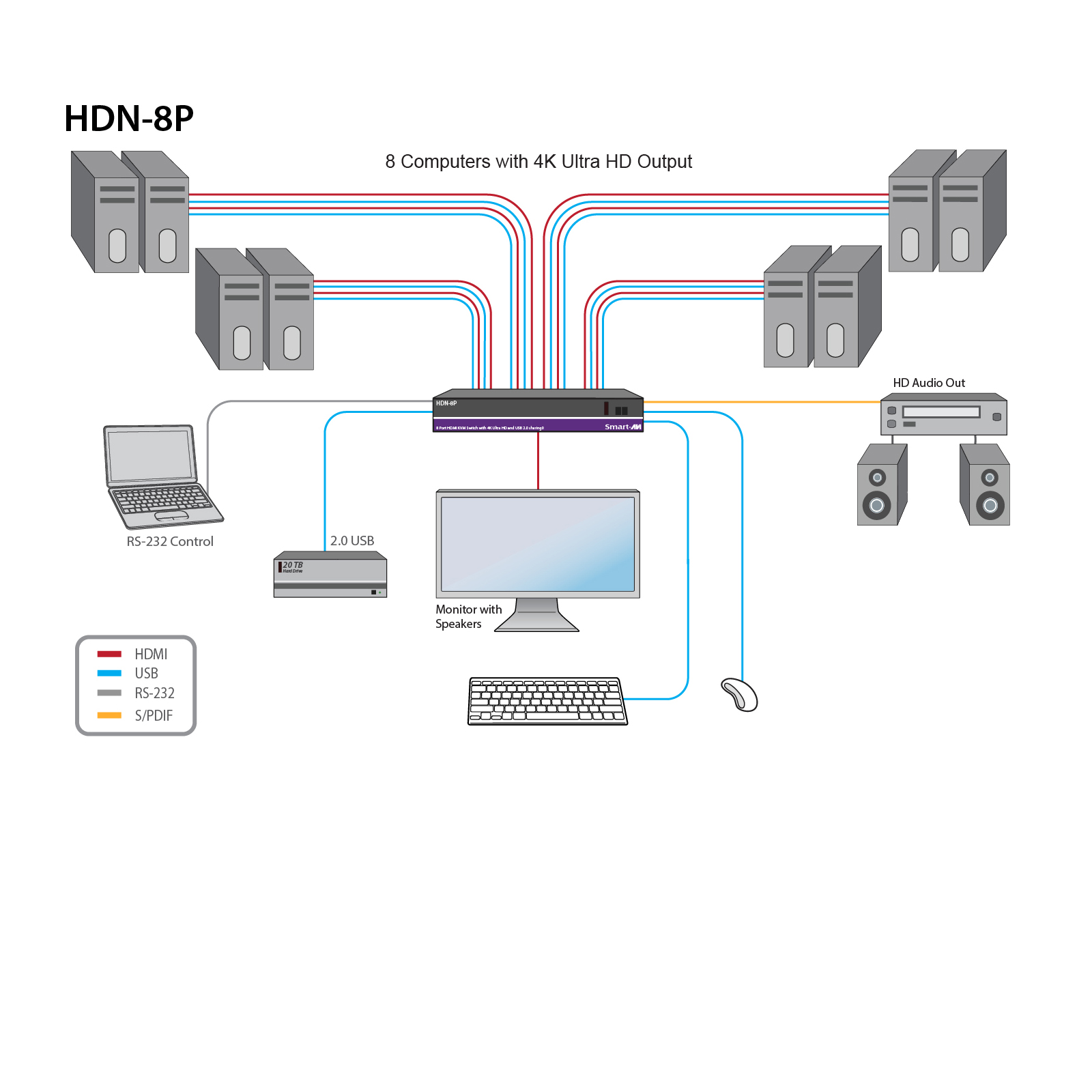

HDN-8P is a dedicated multi-platform KVM switch capable of managing eight computers through a single HDMI monitor, USB keyboard, USB mouse, and other USB 2.0 devices. This is the first KVM switch on the market that features support for 4K Ultra HD (3840x2160 @30Hz or 4Kx2K @60Hz YUV4:2:0) workstations. The device also features SmartPreview technology, which enables simultaneous picture-in-picture monitoring of the other sources connected to the switch. This helpful technology allows users to keep tabs on the other connected workstations without constantly needing to switch back and forth.
The USB emulation technology utilized by HDN-8P enables immediate hot key source switching through a remote USB keyboard and mouse. HDN-8P is HDMI 1.4 and HDCP compliant, which supports 4K Ultra HD resolutions and 12-bit deep color at 1080p @60Hz. RS-232 control and front panel switching are supported. The switch also transmits digital audio.
Product Benefits and Features
- Switches eight Ultra HD sources to one Ultra HD display
- Supports resolutions up to 4K Ultra HD (3820x2160 @30Hz), including 1080p (@60Hz) full HD
- Uses HDMI 1.4 ports
- Supports 3DTV pass through
- Zero pixel loss with TMDS signal correction
- Supports all USB 2.0 devices, including keyboard and mouse
- Control Sun, Mac or PC workstations from one KVM console
- Rack mountable in a standard 19 inch rack
- Flash upgradable firmware
- Supports HDCP
- Supports LPCM 7.1, Dolby True HD, Dolby Digital Plus and DTS-HD Master Audio
- Supports control via RS-232
- Hot key commands for quick channel selection
- Independent (asynchronous) switching of KVM and peripheral USB ports. Users can scan a document and save it in another computer
- Complete keyboard emulation for error-free booting
- Front panel keys for manual switching
- Supports DVI sources/display with DVI-to-HDMI adaptors (not included)
| Mechanical | |
| Width | 14.75 in (374.65 mm.) |
| Height | 1.75 in. (44.45 mm.) |
| Depth | 6.25 in. (158.75.2 mm.) |
| Weight | 3.5 lbs (1.59 kg.) |
| Video | |
| Format | HDMI 1.4 |
| Max Pixel Clock | 300 MHz |
| Input Interface | (8) HDMI (female) |
| Output Interface | (1) HDMI (female) |
| Resolution | Up to 4Kx2K (3840x2160 @30Hz) or 4Kx2K @60Hz YUV4:2:0, 1080P @60Hz and 1080P 3D @60Hz |
| DDC | 5 volts p-p (TTL) |
| Input Equalization | Automatic |
| Input Cable Length | Up to 20 ft. |
| Output Cable Length | Up to 20 ft. |
| USB | |
| Signal Type | USB 2.0, 1.1, and 1.0 w/ internal hub |
| Input Interface | (8) USB Type B |
| Output Interface | (2) USB 1.1 Type A for keyboard and mouse (2) USB 2.0 Type A Transparent |
| Control | |
| Front Pane | Tactile Switches |
| RS-232 | Via Control @ 9600 bps |
| Hot keys | Via Keyboard |
| Emulation | Keyboard and mouse only |
| Other | |
| Power | External 100-240 VAC/ 5VDC4A @ 20W |
| Consumption | 20 W (Max) |
| Operating Temperature | 32-104°F (0-40°C) |
| Storage Temperature | 20-140°F (-20-60°C) |
| Relative Humidity | 5 to 90%RH (No Condensation) |
| Approvals | UL, CE, RoHS Compliant |
UPC 813280021517
EAN 0813280021517
Answer: Thank you for your inquiry. Generally no, you cannot simply divide the video inputs to this device. Certain KVM switches will allow you to cascade multiple switches together to attach more servers, but this device is limited to 8 devices.
For additional recommendations, please reach out to your KVM Switches Online representative at 1-877-586-6654 or via our online chat to discuss your project in greater detail.
Question: I will try to explain my needs. I need a KVM combiner to see some devices. These devices has an output video to 60Hz 2K on Display Port and classic usb mouse and keyboard but the bottleneck are 60Hz of the video frame. I check your device and I found these devices: 8-Port 4K Ultra HD KVM Switch with USB 2.0 Sharing is perfect but I not get if with this I can subdivide the main video output in more frame for each device. Unfortunately I have to see many device on main display. Can you help to understand if you have a device for my job? The Display Port is not a problem because I could design a DP -> HDMI converter with STDP2650 chip.
Answer: Thank you for your inquiry,
Are you looking for a 8-source Multi-Viewer KVM Switch? (see image below) For this, 4K resolution support, and 60Hz at 2K, you could use the Aten KE Extender series. You would need:
- (8) KE8950T HDMI KVM Transmitters - one for each source
- (1) KE8950R HDMI KVM Receiver - for user station
- (1) CCKM Software - for managing sources
Please let us know if you have any questions!
