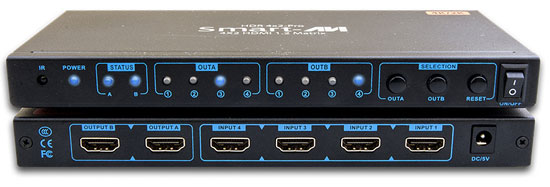

The SmartAVI HDR 4x2-Pro allows users to switch four HDMI inputs with two high-definition displays. Two outputs give users flexibility while routing HD audio and video signals with two displays. The HDR 4x2-Pro eliminates the need to disconnect and reconnect HDMI sources to a single display. The device is compatible with computer sources, live HD television feeds, Blu-ray players, gaming consoles, video cameras and more. Controlling the matrix switch is simple thanks to the front tactile buttons and the included infrared remote control.
Applications
Wall Displays
Digital Media
Airports
Dealer Rooms
Control Rooms
Audio/Visual Presentations
Shopping Centers
Security
Point-of-Sale
Hotels/Resort
Features
Supports 4K/2K Input/Output
4x2 non-blocking, single-link HDMI matrix switch

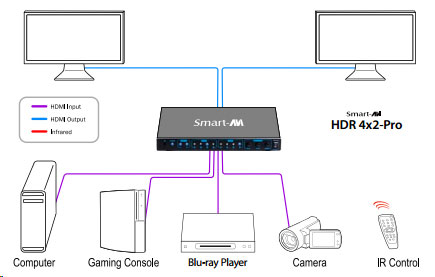

Distributes any of the four inputs to any combination of the two HDMI output displays
Includes IR remote
HDCP and HDMI 1.4 Compliant
SmartAVI HDR 4x2 Pro Specifications
Mechanical
Height
0.75 in. (1.90 cm)
Width
7.75 in. (19.68 cm.)
Depth
3.65 in. (9.27 cm.)
Weight
0.8 lbs
Format
HDMI 4K/2K
Video Bandwidth
Single-link 340MHz [10.2 Gbps]
Resolution
480i, 480p, 720i, 720p, 1080i, 1080p
Input Interface
(4) HDMI [7.1ch audio & video]
Output Interface
(2) HDMI [7.1ch audio & video]
Connector
Type A [19-pin female]
Maxium Distance
25 ft
Video Power
External 100-240 VAC/5VDC2A @ 10W
UPC813280017909 EAN0813280017909
Question: Does this unit accept 4K2K (30fps) inputs also?
Answer: Thank you for your inquiry,
I have confirmed that the HDR4X2PROS includes support for 4K2K inputs as well as outputs at a rate of 30fps.
If you would like a recommendation for a device based on your setup, please feel free to contact your KVM Switches Online sales representative directly at 1-877-586-6654, at sales@kvm-switches-online.com, or via our online Chat functionality.
Have Any Questions?
?
Does this unit accept 4K2K (30fps) inputs also?
Thank you for your inquiry,
I have confirmed that the HDR4X2PROS includes support for 4K2K inputs as well as outputs at a rate of 30fps.
If you would like a recommendation for a device based on your setup, please feel free to contact your KVM Switches Online sales representative directly at 1-877-586-6654, at sales@kvm-switches-online.com, or via our online Chat functionality.
100% of 1 people found this helpful. Was this helpful to you? Yes(1) | No(0)
?
Is this unit currently in stock?
Thank you for your inquiry.
As of 12/9/19, there is stock available for HDR4X2PROS.
Please note, we offer free ground shipping if you place an order online.
0% of 0 people found this helpful. Was this helpful to you? Yes(0) | No(0)
?
I need to connect 2 separate pc's with 3 monitors, what do I need
Thank you for your inquiry,
As the HDR 4x2 is a two-display switch, you most likely will not be able to switch between three monitors. If you're duplicating the display between two monitors you might be able to use an HDMI splitter; however, we are unable to guarantee the functionality.
0% of 0 people found this helpful. Was this helpful to you? Yes(0) | No(0)
