SmartAVI 1x5 HDMI Switch
HDSW-51S
The SmartAVI HDSW51 connects up to 5 HDMI sources to a single HD monitor.

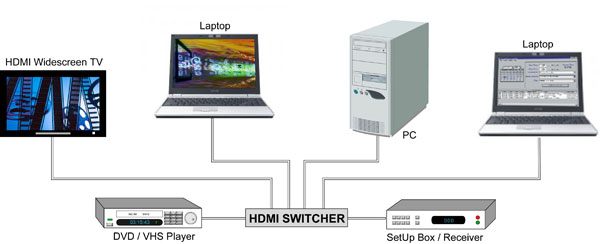

SmartAVI HDSW51 Diagram
SmartAVI HDSW51 Features and Benefits:
- Connects up to five HDMI sources to one HDTV display device
- Maintains 480p, 720p, 1080i and 1080p video formats
- Maintains highest HDMI single link video resolution and digital audio
- Supports HDCP compliant devices
- Both HDMI-HDMI and DVI-HDMI cables can be used to connect the inputs and switcher output
- Inputs can be selected from either the IR remote controller (sold seperately part # SMRMT) or through the front panel "Input Select" button.
SmartAVI HDSW51 Specifications:
| Mechanical | |
| Depth | .93 in (23.7 mm) |
| Width | 3.04 in ( 77.1 mm) |
| Length | 7.15 in (181.6 mm) |
| Weight | 360g |
| Video Amplifier Bandwidth | 1.65GBps |
| Input Video Signal | v1.2 |
| Input Connector | 3 HDMI 19pin female |
| Output Connector | 1 HDMI 19pin female |
| Total Cable Length | Up to 120 ft |
| Power Consumption | 3.0W Max |
| Power Supply | 6V DC, 1A |
