HDMI, IR and Power Extender Over Single CAT5e/6 Cable
HDX-POE-S
Save $99.13
Are you extending your HD signal reach and finding that the best potential new locations don't have the proper power available? You may not have to scale down your plans if you consider using an HDX-POE system from SmartAVI. HDX-POE injects power into HDBaseT cat5/cat6 cable that transports both HDMI and IR and picks it off at the load.
Watch and control HDTV 1080p video up to 250ft from the source via Cat5e/6 using HDBaseT and POE technology
Features:
- Supports POE: Can be powered by TX or RX
- Extends HDMI,IR and Power Output over one Cat5e/6 Cable
- Extends IR Control Signals for Remote Contro
- Uses HDBaseT Technology
- Full HD support: 1080p@60Hz@48 bit/pixels, 1080p@120Hz@24 bit/pixels, 3D 1080P60Hz and 4K x 2K@30Hz@24bit
- Data Signals up to 3.4Gbps
- HDMI 1.4 and HDCP Compliance
- Uses Bi-Directional IR Communication
- Transmits High-Quality Dolby TrueHD, DTS-HD MA Audio Signals
- Transmits 1080p Resolution Video up to 250 ft
Applications:
- Home Theater
- Corporate/Educational Presentations
- Call Centers
- Industrial (Long-Range Workstation Isolation)
- Information Terminals/Kiosks
- Airport Installations (Air Traffic Control/Passenger Information)
- Educational Environments with Remote Displays

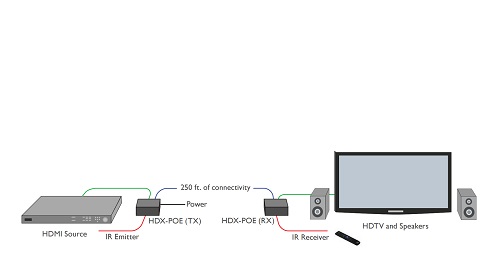

Diagram
Specifications:
| Video | |
| Resolution | 800X600, 1024X768 , 1280X1024, 1366X768, 1920X1200, 480i, 720p, 1080i, 1080p and 3D |
| Transmission distance: | 70 meters |
| Color Depth | Deep Color 36/30/24 Bit at 1080p and 3D |
| Audio Format | Up to PCM 8 channel, Dolby Digital TrueHD,and DTS-HD Master Audio |
| IR Range | 38kHz, 56kHz |
| Video Bandwidth | 10.2Gbps |
| Input Video Signal | 1.2 Volts P-P |
| Input DDC Signal | 5 Volts(TTL) |
| I/O CONNECTOR (Transmitter) | |
| Input | 1 x HDMI-A 19PIN Socket 5 x 2.5mm 1 x 3.5mm Jack for IR Receiver |
| Output | 1 x RJ45 Jack 1 x 3.5mm Jack for IR Emitter |
| I/O CONNECTOR (Receiver) | |
| Input | 1 x RJ45 Jack 1 x 3.5mm Jack for IR Receiver 5 x 2.5mm |
| Output | 1 x 3.5mm Jack for IR Emitter 1 x HDMI-A 19PIN Socket |
| Mechanical-(transmitter/reciever) | |
| Dimensions | 0.9" x 2.9" x 3.7" |
| Weight | 0.26 lbs |
| Power | External 12V2.5A |
| Environmental | |
| Operating Temperature | +0 to +40° C (+32° to 104° F) |
| Operating Humidity | 10% to 85% (Non-condensing) |
| Storage Temperature | -20° to +60°C (-4° to +140° F) |
| Safety | |
| Certificate | FCC, CE, RoHS |
| Power Adapter | UL, CE, FCC, RoHS |
UPC 813280018074
EAN 0813280018074
