SmartAVI CAT5 HDMI Extender w/ IR & RS232
HDX-ULTRA-S

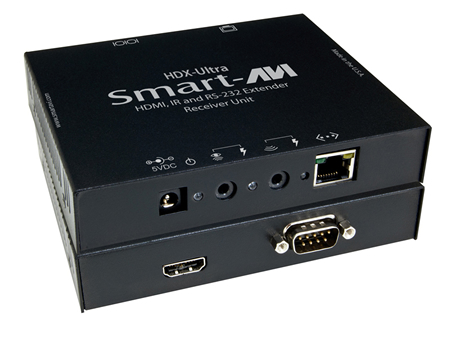

The SmartAVI HDX-ULTRA-S is a HDMI, IR, and RS-232 Extender over a single CAT5 UTP Cable. It Includes: HDXU-TX (Transmitter), HDXU-RX (Receiver), SM-EYE3, SM-LED3, and 2 x PS5VD2A-1(Power Supply).
SmartAVI HDX-ULTRA-S Features:
- Extends HDMI output over one Cat5/5e/6 UTP cable
- Extends IR and RS-232 control signals for remote control
- Delivers uncompressed HD video up to 1080p @ 60Hz @ 48 bits and 3D
- Data signals up to 3.4 Gbps
- HDMI 1.3 and HDCP compliance
- IR and RS-232 communication are bi-directional
- Transmits high quality Dolby TrueHD, DTS-HD MA audio signals
- Transmits 1080p resolution over 330 feet (100 meters) from the source
SmartAVI HDX-ULTRA-S Applications:
- Home Theater
- Corporate Presentations
- Educational Presentations
- Call Centers
- Industrial Long-Range Workstation Isolation
- Information Terminals/Kiosks
- Airport Installations
SmartAVI HDX-ULTRA-S Application Diagram
SmartAVI HDX-ULTRA-S Specifications:
| Mechanical | |
| Width | 5.0 in. (12.7 cm.) |
| Height | 1.125 in. (2.85 cm.) |
| Depth | 4.125 in. (10.47 cm.) |
| Weight | 0.6 lb. (0.27 kg.) |
| Video | |
| Format | HDMI 1.3 and HDCP compliant |
| HDTV Resolutions | 480p, 720p, 1080i, 1080p/60Hz/48bit |
| TV Resolutions | 480i |
| Input Interface (TX) | HDMI Type A 19-pin Female TMDS |
| Output Interface (RX) | HDMI Type A 19-pin Female TMDS |
| Input Cable Length (TX) | Up to 40ft. |
| Output Cable Length (RX) | Up to 40ft. |
| Audio | |
| Format | Dolby TrueHD, DTS-HD MA |
| Input Interface | HDMI (Integrated)>/td> |
| Output Interface | HDMI (Integrated) |
| IR | |
| Signal Type | 38 KHz |
| Interface | 3.5mm Jack Socket (Female) |
| RS-232 | |
| Baud Rate | Up to 19,200 bps |
| Input Interface (TX) | DB-9 (Serial) Female |
| Output Interface (RX) | DB-9 (Serial) Male |
| System | |
| Interface | RJ-45 |
| Cable Requirements | Cat5/5e/6 |
| Maximum Length | 330 (100 meters) |
| Power | External 100-240 VAC/5VDC2A @ 10W |
| Environmental | |
| Operating Temperature | 0-55 °C (32-131°F) |
| Storage Temperature | -20-85 °C (-4-185 °F) |
| Humidity | Up to 95% |
| Approvals | UL, CE, ROHS Compliant |
UPC 813280021906
EAN 0813280021906
