Avocent HMX Computer Interface Module for DVI-I Video, 2-USB, Audio & Microphone
HMIQDI
Save $44.17
Discontinued
Recommended replacement: Avocent HMX 5000 Series
Alternative options: Contact Us
The Avocent HMIQDI is a HMX IQ computer interface module single head DVI-I video, 2-USB, audio and microphone for use with the Avocent HMX series.
The HMX IQ Computer Interface Modules are used to connect target computeres to the TCP/IP Area Network. HMX IQ selection depends on type and number of
displays to be supported and the video that is generated by the computer. All HMX IQ modules are hardware based and require no software or drivers to be loaded
on to the target computer. All HMX IQ modules are operating system (OS) independent, enabling the solution to function with Windows¨, Mac¨, Linux or Sun¨ computers.
The Avocent HMX Desktop Over IP Solution consists of: (all sold separately)
- HMX Manager
- HMX User Station
- HMX Computer Interface Module

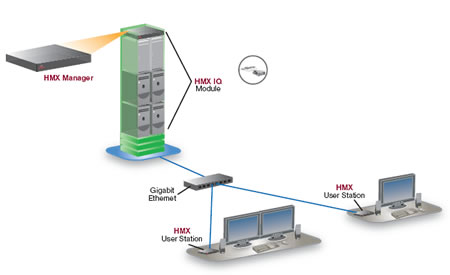

Avocent HMX Desktop Over IP Solution Diagram
Avocent HMIQDI-001 Specifications:
| Mechanical | |
| Height | 0.83 in. (21 mm.) |
| Width | 2.68 in. (68 mm.) |
| Depth | 6.02 in. (153 mm.) |
| Weight | 0.66 lb. (0.3 kg.) |
| Environmental | |
| Operating Temperature | 32° F to 95° F (0° C to 35° C) |
| Storage Temperature | -4° F to 140° F (-20° C to 60° C) |
| Humidity | 10% to 90% (non-condensing) |
| Power | |
| Power In | 5VDC / 1.1A |
| Consumption | 6W |
| Connections | |
| USB | 2 |
| DVI-I | 1 (supports digital and/or analog video) |
| Stereo speaker jack | 1 |
| Mono microphone jack | 1 |
| RJ45 network port | 1 |
| Network Speed | 100Mbps or 1Gbps |
| Encryption | SSL/AES 128 bit |
| Performance | |
| Keyboard, mouse, mass storage | USB |
| Stereo speakers | 24 bit 44kHz |
| Microphone | Mono |
| Resolution | Video up to 1280x1024 @ 60Hz |
| Standards | |
| Approved Agency | cUL, UL, CE, FCC15 Class A |
