ATEN RS-232 to RS-485/RS-422 Bi-directional Converter

IC485AI

$139.00

Discontinued
Recommended replacement: ATEN IC485SI
Alternative options: Contact Us

ATEN (IC485AI) RS-232 to RS-485/RS-422 Bi-directional Converter
ATEN's IC485AI is a 2-way converter converting RS-232 signals into RS-422/RS-485 signals in long-distance application up to 1200m (4000 ft.). Its built-in RS-485 automatic flow and direction monitoring function can suppress signal surge.

ATEN (IC485AI) RS-232 to RS-485/RS-422 Bi-directional Converter Features and Benefits :

  • Automatic internal RS-485 bus supervision.
  • No external flow control signals for RS-485 required.
  • Transient suppression on RS-485 data lines.
  • LEDs for easy status monitoring.
  • Minimum 2000V isolation protection.
  • Up to 115.2 Kbps data throughput.
  • DCE / DTE selectable.
  • Point-to-Point; Multidrop; and Simplex operating modes.
  • Four wire full duplex; two wire half duplex.
  • Cable distance of up to 1200 m (4000 ft.)
  • OS Compatibility: WIN98、WIN ME、WIN 2K and WIN XP.

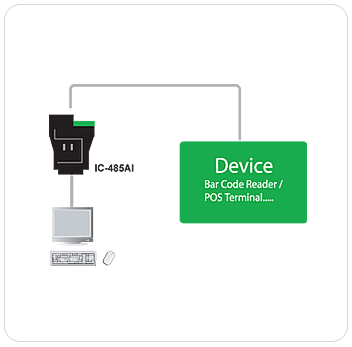

ATEN IC485AI Function Diagram
ATEN (IC485AI) RS-232 to RS-485/RS-422 Bi-directional Converter Function Diagram

ATEN (IC485AI) RS-232 to RS-485/RS-422 Bi-directional Converter Package Content :
1x IC-485AI Industry Control
1x Power Adapter
1x User Manual

ATEN (IC485AI) RS-232 to RS-485/RS-422 Bi-directional Converter Specifications:

Connectors 1 DB-25 Female (RS-232)
RS-485 / RS-422 Four Terminal Block
Grounding Tab
Switches SW1 DCE, DTE
SW2 Segment 1~3: Baud Rate;
Segment 4: Reserved;
Segment 5~6: Data Format (bits);
Segment 7~8: RS-422 / RS-485 Select
Cable Length 1200 m [4000'] (max.)
Data Rate Up to 100 Kbps under 1200 m [4000']
Power Consumption DC9V, 900mW (max.)
Housing Plastic
Weight 60 g
Dimensions
( L x W x H )		 5.4 x 7.45 x 1.85 cm
UPC / EAN Barcode icon
UPC 672792000690
EAN 0672792000690
Question: Dear Sirs, My company is located in Brazil, but we have an office in Miami. I would like to know the deadline for 14 IC485AI units.
Answer: Thank you for your inquiry. For all stocking and delivery questions, please contact your KVM Switches Online representative directly at 1-877-586-6654 or via our online chat feature.
