Aten RS-232 to RS-485/RS-422 Bi-directional Converter
IC485S
Save $15.96
Aten (IC485S) RS-232 to RS-485/RS-422 Bi-directional Converter
Aten IC485S is a 2-way converter for converting RS-232 signals to and from RS-422/RS-485 signals in long-distance application up to 1200m (4000 ft.). It supports the connection of up to 32 hubs.
Aten (IC485S) RS-232 to RS-485/RS-422 Bi-directional Converter Features and Benefits:
- Data transmission controlled by the RTS signal.
- DCE/DTE selectable.
- Point to point, multidrop, and simplex/duplex link selection.
- Four wire full duplex/two wire half duplex.
- Monitor configuration support.
- Compact size.
- OS Compatibility: WIN98、WIN ME、WIN 2K 、WIN NT and WIN XP.

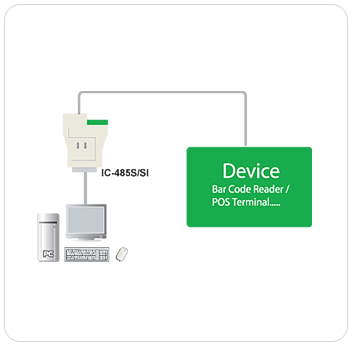

Aten (IC485S) RS-232 to RS-485/RS-422 Bi-directional Converter Function Diagram
Aten (IC485S) RS-232 to RS-485/RS-422 Bi-directional Converter Package Content :
1x IC-485S Bi-directional Converter
1x Power Adapter
1x User Manual
Aten (IC485S) RS-232 to RS-485/RS-422 Bi-directional Converter Specifications:
| Connectors | 1 DB-25 Female (RS-232) | |
| RS-485 / RS-422 Four Terminal Block | ||
| RJ-11 | ||
| Switches | SW1 | DCE, DTE, Monitor |
| SW2 | TxON, RxON | |
| TxRTS, RxRTS | ||
| TxRTS, RxON | ||
| Cable Length | 1200 m [4000'] (max.) | |
| Data Rate | Up to 100 Kbps under 1200 m [4000'] | |
| Power Consumption | DC9V, 1.35W (max.) | |
| Housing | Plastic | |
| Weight | 0.06kg | |
| Dimensions ( L x W x H ) | 5.4 x 7.45 x 1.85 cm | |
UPC 672792150425
EAN 0672792150425
Question: can i purchase the power adapter separately
Answer: Thank you for your inquiry. Unfortunately, ATEN does not sell a separate power adapter.
However, ATEN has indicated you may be eligible to receive a power adapter free of charge. Please call ATEN at 1-888-999-2836 for details.
Question: will it support windows 7 OS?
Answer: Thank you for your inquiry. Unfortunately, we cannot say for sure whether this unit supports Windows 7 or not. It is not listed under the supported products page.
That doesn't in-itself indicate the IC485s will not support Windows 7, but without further guidance from the manufacturer, we would be hesitant to say that it does. If we receive additional information from the manufacturer, we will update this page.
Question: can i use this version without power adapter like the N version?
Answer: Thank you for your inquiry,
According to our tech team at Aten, the power supply for the IC485S is "rarely required" - esentially wether you would need to use the power supply would depend on a few different factors such as the amount of power your port can output, the distance you are extending, if there is electrical interference, etc.
If you would like a recommendation based on your setup, please feel free to contact your KVM Switches Online sales representative directly at 1-877-586-6654, at sales@kvm-switches-online.com, or via our online Chat functionality.
Question: do you deliver to the philippines via FEDEX
Answer: Thank you for your inquiry,
Unfortunately we are unable to ship products to the Philippines at this point of time.
Apologies for the inconvenience.
