48 x RS-232 RJ45 serial (Classic pinout) & 1 x DB9 local console, dual AC power supplies, 2 x 10/100 Ethernet, 2 x USB 2.0 & 1 x USB 1.1, 16GB internal flash storage

The Opengear IM4200 Infrastructure Manager consolidates and streamlines remote management of network, server and power infrastructure in high-density computing environments, ensuring business continuity, secure and reliable network access, monitoring and control for local and remote operations teams. With SmartOOB, the IM4200 offers always-on out-of-band access, proactive monitoring and automated remediation - even during network downtime - to increase network resilience and keep your business running.

Features and Benefits

• 48 port serial console server, manage network and server consoles
• Dual feed AC or DC power, dual bonded NIC, simple serial cabling
• Enterprise-grade security, SSL, SSH and VPN. FIPS 140-2 validated encryption
• AAA including LDAPS & TACACS+, lock down ports per user & group
• Link Layer Discovery Protocol (LLDP) discover, identify and verify attached devices on your local network.
• Audit trail logging to 16GB local storage or remote log server
• Monitor environment and physical sensors with EMD5000 module
• PSTN for remote access during primary outage
• Zero Touch Provisioning (ZTP) automation over the network, without manual user interaction

Product Specifications

Overview

• 48 x RS-232 Serial Ports
• 1 x DB9 RS-232 local/modem port (50 to 115,200 bps)
• 1 x Internal V.92 modem with RJ11 phone socket*
• 2 x USB 2.0 host ports and 1 x USB 1.1 port*
• All serial ports are RJRS-232 (50 to 230,400bps) with Classic (-X0) pin-outs
• 2 x RJ45 10/100Base-T primary and failover Ethernet ports

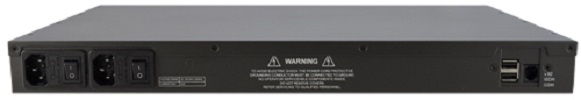

Power

• Dual internal power supplies
• Dual socket universal 100-240V AC
• Power consumption less than 30W

Dimensions and Weight

• 17 x 10 x 1.75 in (44 x 25.4 x 4.5 cm)
• 10 lbs (4.5 kg)
• 1RU with rack mounts

Environmental

• Ambient operating temperature: 41°F to 122°F (5°C to 50°C)
• Storage temperature: -20°F to +140°F (-30°C to +60°C)
• Humidity: 5% to 90%

Emissions

• FCC Part 15 Subpart B Class A Radiated Emissions 30MHz - 1000MHz
• ICES-003 Issue 4 February 2004 Class A Radiated Emissions 30MHz - 1000MHz
• AS/NZS CISPR 22: 2004 Class A Radiated Emissions 30MHz - 1000MHz
• EN55022: 1998 + A1: 2000 + A2: 2003 Class A Radiated Emissions 30MHz - 1000MHz

Immunity

• EN55024: 1998 +A1: 2001 +A2: 2003
• IEC61000-4-2: 1995 ESD 8kV Air Discharge (Direct), 4kV Contact Discharge (Direct/Indirect)
• IEC61000-4-3: 1995 Radiated Immunity 3.0V/m, 1KHz AM Sine Wave at 80%
• IEC61000-4-4: 1995 EFT/Burst 1.0kV Power Lines, 0.5kV I/O Lines
• IEC61000-4-5: 1995 Surge Immunity 1.0kV Common Mode, 1.0 kV Differential Mode
• IEC61000-4-6: 1996 Conducted Immunity 3.0 Vrms, 80% AM Modulated (1KHz)
• IEC61000-4-11: 1994 Voltage Dips and Interrupts (>95%,0.5 periods), (30%,25 periods), (>95%,250 periods)

Isolation

• Serial Port: 4kV ESD protection on RS-232 transceivers
• Ethernet Port: 1500V AC isolation shielded with shield connected to chassis ground for signal integrity and ESD protection

Other Approvals

• CE, UL 1950, TUV, C-Tick, RoHS compliant, Security features to support NERC CIP standards, FIPS 140-2 validated module Certificate #1051

Memory & CPU

• 166 MHz ARM (Micrel KS8695P)
• 64MB SDRAM
• 16MB Embedded Flash
• 16GB Internal Flash

MTBF

• 150,000 Hours

Security & Authentication

• IPSec & OpenVPN, SSL tunnels, Secure Shell (SSH V2), TACACS+, Kerberos, RADIUS with RSA SecurID and LDAP authentication, PAP/CHAP authentication (dial-up), Dial-back support, Local authentication, System event syslog, Authenticated NTP

Gateway Router

• Stateful firewall, DHCP server, DDNS, Failover, Port forwarding, IP filtering with access control lists.

Remote Management

• HTTPS & SSH console, Nagios NSCA & NRPE, SNMP, TFTP & FTP server, Password access control, IP service port control, AJAX web terminal, Auto Response
