16 Port Secure Console Server w/ 1 x RJ45 local console, Dual AC power supplies, Dual Ethernet or fiber SFP, 2 x USB 3.0 host ports, 16GB internal flash storage, Verizon 4G LTE & 3G EV-DO & Wi-Fi w/ antennas

IM7216-2-DAC-LMV-US

$4,822.00$4,368.83
Save $453.17
FREE Shipping on orders over $100

The Opengear IM7200 is a state of the art infrastructure management solution which streamlines remote management of network, server and power infrastructure in data center and remote environments, ensuring business continuity, secure and reliable access, monitoring teams. The next generation IM7200 combines Smart OOB out-of-band management with Failover to Cellular and delivers proactive monitoring and remediation.

Features and Benefits

  • 16 port serial console server, manage network and server consoles.
  • Dual network connections with builtin Fiber SFP and GbE copper ports
  • PSTN and 4G LTE cellular module for remote Smart OOB access during primary outage
  • Failover to Cellular using reliable IP Passthrough technology
  • Integrated 802.11a/b/g/n Wi-Fi
  • Software selectable serial pinouts
  • Enterprise grade security, FIPS 140-2 Validated encryption
  • Link Layer Discovery Protocol (LLDP) discover, identify and verify attached devices on your local network.

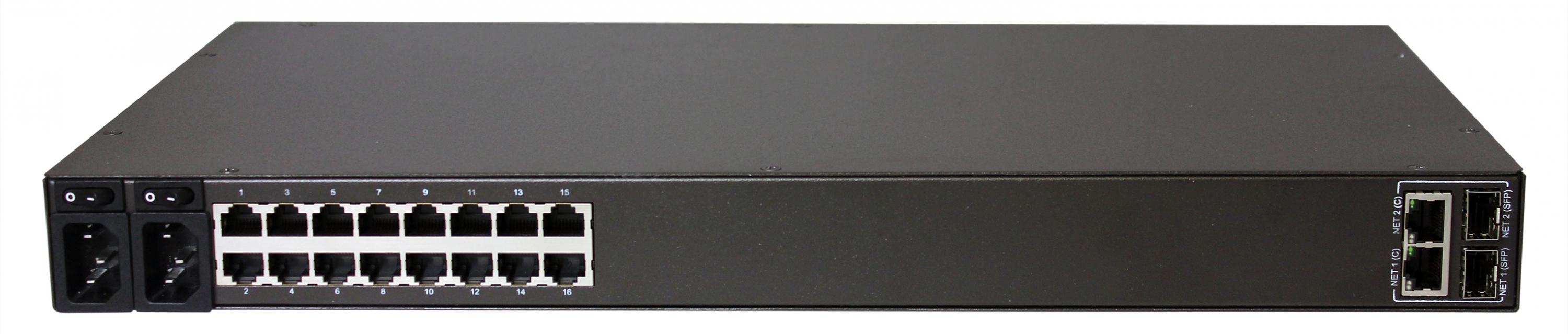

Product Back View

Product Specifications

    Overview

  • 16 x RS-232 Serial Ports
  • Dual LAN ports available by selecting two from four available ports (x 10/100/1000 RJ45 copper and 2 x SFP fiber module slots)
  • All serial ports are RJRS-232 (50 to 230,400bps, software selectable Cisco-straight or Cisco-rolled pinout)
  • WiFi Access Point 802.11 a/b/g/n & antenna
  • 1 x Internal V.92 modem with RJ11 phone socket
  • 2 x USB 3.0 host ports
  • LCD configuration panel
  • 1 x RJ45 RS-232 local console port (Cisco-straight)
  • Dual internal universal AC power supplies

    • Power

  • Dual internal power supplies
  • DAC models dual socket universal 100-240V AC
  • Power consumption less than 30W

    • Dimensions and Weight

  • 17 x 10 x 1.75 in (44 x 25.4 x 4.5 cm)
  • 10 lbs (4.5 kg)
  • 1RU with rack mounts

    • Environmental

  • Ambient operating temperature: 41°F to 122°F (5°C to 50°C)
  • Storage temperature: -20°F to +140°F (-30°C to +60°C)
  • Humidity: 5% to 90%

    • Emissions

  • FCC Part 15 Subpart B Class A Radiated Emissions 30MHz - 1000MHz
  • ICES-003 Issue 4 February 2004 Class A Radiated Emissions 30MHz - 1000MHz
  • AS/NZS CISPR 22: 2004 Class A Radiated Emissions 30MHz - 1000MHz
  • EN55022: 1998 + A1: 2000 + A2: 2003 Class A Radiated Emissions 30MHz - 1000MHz

    • Immunity

  • EN55024: 1998 +A1: 2001 +A2: 2003
  • IEC61000-4-2: 1995 ESD 8kV Air Discharge (Direct), 4kV Contact Discharge (Direct/Indirect)
  • IEC61000-4-3: 1995 Radiated Immunity 3.0V/m, 1KHz AM Sine Wave at 80%
  • IEC61000-4-4: 1995 EFT/Burst 1.0kV Power Lines, 0.5kV I/O Lines
  • IEC61000-4-5: 1995 Surge Immunity 1.0kV Common Mode, 1.0 kV Differential Mode
  • IEC61000-4-6: 1996 Conducted Immunity 3.0 Vrms, 80% AM Modulated (1KHz)
  • IEC61000-4-11: 1994 Voltage Dips and Interrupts (>95%,0.5 periods), (30%,25 periods), (>95%,250 periods)

    • Isolation

  • Serial Port: 4kV ESD protection on RS-232 transceivers
  • Ethernet Port: 1500V AC isolation shielded with shield connected to chassis ground for signal integrity and ESD protection

    • Other Approvals

  • CE, UL 1950, TUV, C-Tick, RoHS compliant, Security features to support NERC CIP standards, FIPS 140-2 validated module Certificate #1051

    • Memory & CPU

  • 1 GHz ARM SoC (Marvell 88F6283)
  • 256MB DDR3 SDRAM (533 MHz)
  • 64MB NOR Flash
  • 16 GB SD internal flash storage (50 MHz)

    • MTBF

  • 150,000 Hours

    • Security & Authentication

  • IPSec & OpenVPN, SSL tunnels, Secure Shell (SSH V2), TACACS+, Kerberos, RADIUS with RSA SecurID and LDAP authentication, PAP/CHAP authentication (dial-up), Dial-back support, Local authentication, System event syslog, Authenticated NTP

    • Gateway Router

  • Stateful firewall, DHCP server, DDNS, Failover, Port forwarding, IP filtering with access control lists. 700 Mbps firewall throughput, 140 Mbps VPN throughput (through LAN ports).

    • Remote Management

  • HTTPS & SSH console, Nagios NSCA & NRPE, SNMP, TFTP & FTP server, Password access control, IP service port control, AJAX web terminal, Auto Response

    • Wireless Specification

  • The IM7200-L models operate on 4G LTE 700/HSPA networks, 4G LTE 700/3G EVDO networks and 4G LTE 800-2600 / HSPA+ networks globally. All IM7200 models integrate an 802.11 WAP.

    • 4G LTE 700/HSPA

  • Air Interface: LTE, HSPA+, GSM, GPRS, EDGE; Supports AT&T (USA). User provides SIM card
  • Frequency Bands: LTE 700 MHz (Band 17)/AWS, WCDMA 850/1900/2100 MHz, EDGE/GPRS/GSM 850/900/1800/1900 MHz
  • Data Services: Transfer rate (peak): Upload 50 Mbps/Download 100 Mbps

    • Wireless Access Point

  • 802.11 a/b/g/n, AP or Client mode, Infrastructure or Ad-hoc
  • WEP, WPAPSK, WPA2-PSK, WPA-None, WPA-PEAP-MSCHAPv2
  • Wireless Encryption: TKIP, AES

    • Cellular Certification

  • PTCRB, NAPRD.03, GCF-CC, R&TTE, EN 301 511, A-Tick (GSM/UMTS)
  • CDG TIA/EIA-690, CDG TIA/EIA-98-E (CDMA/EV-DO)
