INTERMUX KVM on IP
INTERMUX-KVMIP
$549.00
Discontinued
Recommended replacement: Minicom by Tripplite 0SU70017
Alternative options: Contact Us
Download the
INTERMUX-KVMUIP
(IP-KVM 1001) Manual (PDF)

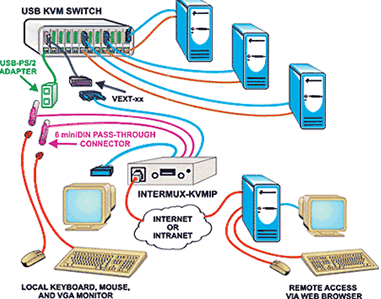

The NTI INTERMUX KVM on IP (INTERMUX-KVMIP) system allows you to control one or many computers locally at the server site or remotely via the Internet using a standard browser. You can securely gain BIOS level access to systems for maintenance, support, or failure recovery over the Internet. Communication is secure via SSL encryption. Use in conjunction with a KVM switch for multiple-server access. The NTI INTERMUX (INTERMUX-KVMIP) unit is compatible with all NTI switches, including UNIMUX USB KVM Switches (using NTI's USB-PS2 adapter). INTERMUX-KVMUIP
(IP-KVM 1001) Manual (PDF)
NTI INTERMUX KVM on IP System
Features
- Provides direct connection to servers at the BIOS level.
- Highly secure. Encrypted with SSL v2/v3.
- Unique security certificates can be generated and uploaded to the system after endorsement by a certification authority.
- Zero-U. Consumes no rack or desk space.
- No impact on computer performance. The INTERMUX (INTERMUX-KVMIP) unit is connected to the monitor, keyboard and mouse connectors of the host computer.
- Requires no additional software. There are no licensing fees for proprietary software based on the number of users.
- Optimize multiple-user access by providing several INTERMUX ( INTERMUX-KVMIP) units at the server location.
Remote Boot. - USB 2.0 mass storage emulation allows the local computer to boot from a remote drive over the network.
- Ten remote users can access the server simultaneously.
- Plug and Play functionality allows simple physical reconfiguration of the server environment
Specifications
| Video | |
| VGA 15-pin HD connector. | |
| Resolution up to 1280x1024. | |
| Video resolution adjustment is automatic; manual fine tuning available | |
| Keyboard/Mouse | |
| Standard PS/2 keyboard and mouse. | |
| Female 6-pin miniDIN connectors. | |
| Provides high-performance mouse tracking and synchronization. | |
| Allows local and remote keyboard and mouse control. | |
| Local Internet Connection | |
| Ethernet: RJ 45 connection. | |
| Automatically senses connection speed and supports 10/100 Base-T using CAT5 UTP cable | |
| Remote Access | |
| Internet access using Microsoft Internet Explorer version 6.0 or higher on Windows 2000 or Windows XP. | |
| Security | |
| V2/V3 SSL.;SSL management of unique certificates. | |
| Hardware | |
| 200 MHz processor. | |
| 32 MB memory. | |
| 8 MB Flash. | |
| Power | |
| 110 or 220 VAC at 50 or 60 Hz via AC adapter. | |
| Dimensions | |
| WxDxH (In.): 3.3x3.2x1 |
Question: Download a User/Setup Manual for InterMUX-KVMIP
Answer: Unfortunately, we could not come up with a manual specific to the INTERMUX-KVMIP. However, our NTI contact sent over the manual for the INTERMUX-KVMUIP which the believe is similar. We have uploaded that manual for your convenience.
Answer: Unfortunately, we could not come up with a manual specific to the INTERMUX-KVMIP. However, our NTI contact sent over the manual for the INTERMUX-KVMUIP which the believe is similar. We have uploaded that manual for your convenience.
