Dataprobe Remote Controlled Power Strip, 4 Outlet
iP-420
The iP-420 requires a NEMA 5-20R receptacle with a 20 Amp service. If you do not have this you can not use the iP-420.
Dataprobe iP-420 Web/Telnet controlled 8-Outlet Power Strip
These Remote Controlled Power Strips (iP-420) allow web browser control of eight A/C power outlets. These units connect directly to 10baseT Ethernet and are IP addressable. Each outlet can be independently turned on, off or cycled for power-on reset (re-boot). 4 outlet models can be easily expanded to eight outlets. These units use standard NEMA 5-15 North American Line cord and Outlets.
Dataprobe iP-420 Operation
The Dataprobe iP-420 are controlled from a web browser. Once a connection is established and a security login is approved, each of the outlets can be controlled by clicking on the appropriate hotlinks. Toggle and Timed Cycle functions are provided. The status of each outlet is clearly displayed. The unit can also be controlled from a Telnet client using menu selections.

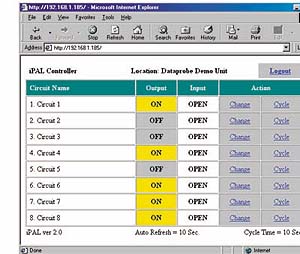

Dataprobe IP-415 Web Browser Diagram
Dataprobe iP-420 Remote Reboot Features Benefits:
-
Indicator lamps display status of each outlet
-
User defined names for each outlet
-
Serial Port for Out-of-Band Backup Access
-
Internal Modem Option
Dataprobe iP-420 Remote Reboot Specifications:
| Mechanical | |
| Height | 1.75 in. (4.45 cm.) |
| Width | 19 in. (48.26 cm.) |
| Depth | 8.75 in. (22.23 cm.) |
| Enclosure casing | EIA rack mount metal enclosure |
| A/C Input | |
| 15 Amp Models: NEMA 5-15 plug, Six foot line cord 14/3 | |
| 20 Amp Models: NEMA N5-20 plug, Six foot line cord 12/3 | |
| Control Port | |
| 10base-T Ethernet, D9 Serial or RJ11 Line with Modem Option | |
| Switched Outlets | |
| Standard 3 prong NEMA 5-15 connection. 12 Amps max. per receptacle | |
| TOTAL Max. Current Rating For All Connected Devices | |
| 15 Amps for iP-815 and iP-415, 20 Amps for iP-820 and iP-420 | |
