Sun Legacy KVM Adapter Cable (CPU Module)

 The KA7130 Sun Legacy KVM Adapter Cable connects the KVM switch to the console ports of the target computer. With its small form factor and light weight design, it represents the next generation of Sun Legacy KVM Adapter Cables - offering superior signal compensation and delay skew techniques for greatly enhanced video quality.

Features:

• Auto Signal Compensation (ASC), no DIP switch setting needed for the different distances
• Keyboard and mouse emulation - keeps your server functioning smoothly when it is disconnected from the switch's KVM port or relocated to different KVM port
• Lifetime firmware upgrades
• Superior video quality - supports resolution of up to 1600 x 1200 within the distance of up to 165 feet (50m)
• Built in ASIC for greater reliability and compatibility
• CPU module designed with automatic conversion to allow for flexible interface combinations (PS/2, USB) to control all computer types (Sun Legacy)
• Compact size
• 1680 x 1050 (Reduced blanking) and 1920 x 1200 (Reduced blanking) not supported by KA7xxxx KVM Adapter Cables

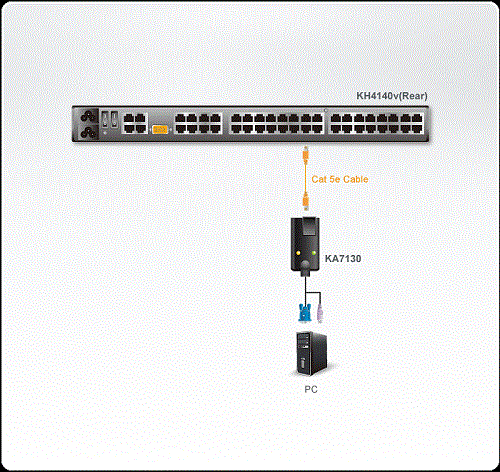

Diagram

Specifications:

UPC 672792400605
EAN 0672792400605
