Aten USB/PS2 Console Station for KM0932/KM0532
KA7230S
The Aten KA7230 is a USB/PS2 Console Module that provides the means to access Matrix KVMs. It allows up to 900 feet separation between console and KVM over CAT-5 (or better) cabling. In addition to providing a connection to the Matrix switch, the KA7230 acts like a KVM in that you can connect your usual computer to the console port, leaving a single keyboard, mouse, and monitor on your desk tocontrol both the servers attached to the KVM, and your desktop workstation.
Additional features of the KA7230 include the ability to use any combination of PS/2 and USB keyboard and mouse. A built in RS232 port allows an Administrator to monitor all logged on users and dynamically switch or deny a user access to a particular server or even access to the KVM itself. In a large server environment, this feature may be used to project the display on a screen to provide an over view and control of each logged on user.
Aten KA7230 Features:
- One Combo Graphic Console Module can control a local computer and a matrix KVM switch (KM0932/KM0532- sold separately)
- Supports PS/2 and USB keyboards and mice(Console)
- Switch between your workstation computer and the matrix KVM switch
- Graphical OSD-intuitive, easy-to-use graphical On Screen Display to manage servers
- RS-232 port login support permits an administrator to control the KVM port access for all consoles connected to switch - any console can be assigned to access any KVM port from a single interface point
- Connects to matrix KVM switch via Cat 5e/6apple cable
- Superior video quality - 1280 x 1024 @ 60 Hz for up to 1000ft.
- Manual video gain control for fine tuning
- Convenient computer selection via intuitive hotkey combinations or graphical OSD menus
- Firmware upgradeable
Package Includes:
- 1x KA7230 USB/PS2 Console Station
- 1x KVM Cable
- 1x Power Adapter
- 1x RS-232 Cable (DB-9F to DB9-F)
- 1x Grounding Wire
- 1x Rack Mount Kit
- 1x User Guide

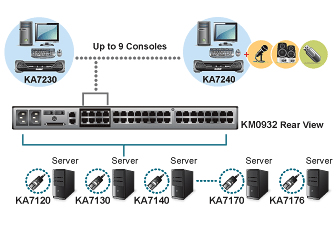

Aten USB/PS2 Console Module Application Diagram
Requirements (sold separatley):
- Any combination of PS/2 or USB keyboard and mouse
- VGA or Multi-Sync video card
- VGA Monitor
- CPU Modules (KA9120 for PS/2)
- KVM (KM0932 or KM0532)
Aten KA7230 Specifications:
| Mechanical | |
| Dimensions | 8.9 x 2.1 x 6.75 in. |
| Weight | 2.7 lbs. (1.2 kg.) |
| Housing | Metal |
| Environmental | |
| Operating Temperature | 32 - 122 F |
| Storage Temperature | -4 - 140 F |
| Humidity | 0-80% RH, Noncondensing |
| Power | |
| Amps | 1.25 A |
| Voltage | 5.3 VDC |
| Consumption | 6.5 W : 22 BTU/h |
| Computer Connections | |
| Direct | 2 (KVM Port), 1 (Local Computer) |
| Port Selection | GUI, Hotkey |
| Console Connectors | |
| Keyboard | 1 x USB Type A Female (White)1 x PS/2 Female (Purple) |
| Monitor | 1 x HDB-15 Female (Blue) |
| Mouse | 1 x USB Type A Female (White),1 x PS/2 Female (Green) |
| CPU Connectors | |
| Keyboard, Mouse, and Monitor | 1 x SPHD-17 Female(local computer), 2 x RJ-45 Female(KVM switch port) |
| Connectors | |
| RS-232 | 1 x DB-9 Male (Black) |
| Power | 1 x DC Jack |
| Switches | |
| Port Selection | 1 x Pushbutton(Local/Remote) |
| F/W Upgrade | 1 x Slide |
| LEDs | |
| Power On | 1 (Blue) |
| On Line | 1 (Green) |
| Local | 1 (Orange) |
| Remote | 1 (Orange) |
| Emulation | |
| Keyboard | PS/2; USB (PC, Sun, Mac) |
| Mouse | PS/2; USB (PC, Sun, Mac) |
| Video Resolution | 1280 x 1024 @ 60Hz |
| Scan Interval | 1-240 Seconds |
