Aten USB/PS2 Console Station for KM0932/KM0532 with Virtual Media
KA7240S
The Aten KA7240 is a USB Console Module with Audio support that provides the means to access Matrix KVMs. It allows up to 900 feet separation between console and CPU module over CAT-5 (or better) cabling. When used with a KA7176 CPU module (sold separately), the console supports audio and virtual media through the KVM to the attached servers.
In addition to providing a connection to the Matrix switch, the KA7240 acts like a KVM in that you can connect your work station to the console port , leaving a single keyboard, mouse, and monitor on your desk to control both the servers attached to the KVM and your desktop workstation.
Additional features of the KA7240 include the ability to use any combination of PS/2 or USB keyboard and mouse. A built in RS232 port allows an Administrator to monitor all logged on users and dynamically switch or deny a user access to a particular server or even access to the KVM itself. In a large server environment, this feature may be used to project the display on a screen to provide an over view and control of each logged on user.
Aten KA7240 Features:
- One Combo Graphic Console Module can control a local computer and a matrix KVM switch (KM0932/KM0532)
- Supports PS/2 and USB keyboards and mice(Console)
- Supports Virtual media and audio with a KA7176 CPU module
- Switch between your workstation computer and the matrix KVM
- Graphical OSD-intuitive, easy-to-use graphical On Screen Display to manage servers
- RS-232 port login support permits an administrator to control the KVM port access for all consoles connected to switch - any console can be assigned to access any KVM port from a single interface point
- Connects to matrix KVM switch via Cat 5e/6apple cable
- Superior video quality - 1280 x 1024 @ 60 Hz for up to 1000ft.
- Manual video gain control for fine tuning
- Convenient computer selection via intuitive hotkey combinations or graphical OSD menus
- Firmware upgradeable
Package Includes:
- 1x KA7240 Virtual Media PS/2-USB Console Module with stacking brackets
- 1x KVM Cable
- 1x Power Adapter
- 1x RS-232 Cable (DB-9F to DB9-F)
- 1x Grounding Wire
- 1x Rack Mount Kit
- 1x User Guide

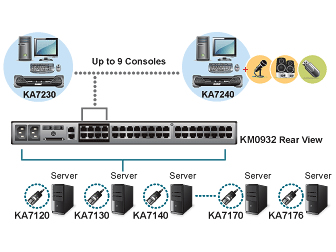

Aten USB Console Station Application Diagram
Requirements (sold separatley):
- Any combination of PS/2 or USB keyboard and mouse
- VGA or Multi-Sync video card
- VGA Monitor
- CPU Modules (KA9120 for PS/2)
- KVM (KM0932 or KM0532)
- *Does not support audio or virtual media
Aten KA7240 Specifications:
| Mechanical | |
| Dimensions | 8.9 x 2.1 x 6.75 in. |
| Weight | 2.7 lbs. (1.2 kg.) |
| Housing | Metal |
| Environmental | |
| Operating Temperature | 32 - 122 F |
| Storage Temperature | -4 - 140 F |
| Humidity | 0-80% RH, Noncondensing |
| Power | |
| Voltage | 5.3 VDC |
| Consumption | 10 W : 35 BTU/h |
| Computer Connections | |
| Direct | 2 (KVM Port), 1 (Local Computer) |
| Port Selection | GUI, Hotkey |
| Console Connectors | |
| Keyboard | 1 x USB Type A Female (White)1 x PS/2 Female (Purple) |
| Monitor | 1 x HDB-15 Female (Blue) |
| Mouse | 1 x USB Type A Female (White),1 x PS/2 Female (Green) |
| CPU Connectors | |
| Keyboard, Mouse, and Monitor | 1 x SPHD-17 Female(local computer), 2 x RJ-45 Female(KVM switch port) |
| Connectors | |
| Virtual Media | 1 x USB Type A Female (White) |
| Audio Output | 2 x Mini Stereo Jack Female (Green), 2 x Mini Stereo Jacks Female (Pink) |
| RS-232 | 1 x DB-9 Male (Black) |
| Power | 1 x DC Jack |
| Switches | |
| Port Selection | 1 x Pushbutton(Local/Remote) |
| F/W Upgrade | 1 x Slide |
| LEDs | |
| Power On | 1 (Blue) |
| On Line | 1 (Green) |
| Local | 1 (Orange) |
| Remote | 1 (Orange) |
| Emulation | |
| Keyboard | PS/2; USB (PC, Sun, Mac) |
| Mouse | PS/2; USB (PC, Sun, Mac) |
| Video Resolution | 1280 x 1024 @ 60Hz |
| Scan Interval | 1-240 Seconds |
UPC 672792400261
EAN 0672792400261
