USB VGA KVM DigiProcessor

KG1900T

$412.54
FREE Shipping on orders over $100

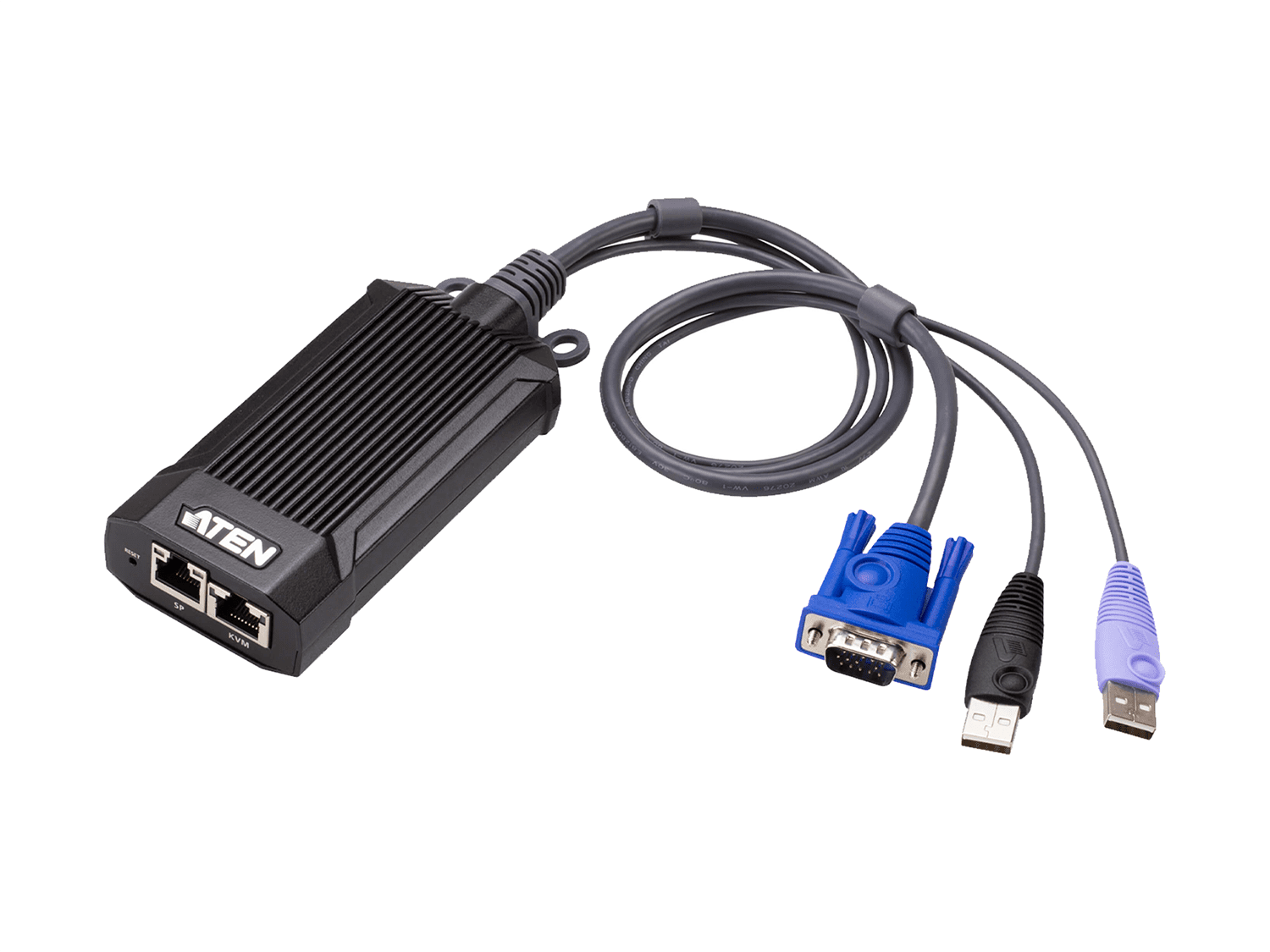

ATEN KG1900T
ATEN USB VGA KVM DigiProcessor

ATEN KG1900T Diagram

  • Superior video quality - supports resolutions up to 1920 x 1200 @ 60 Hz; 24-bit color depth
  • Distortion-free dynamic video performance up to 100m via a Cat 5e/6 cable
  • Virtual Media supports fast transmission speeds up to Read 265Mbps / Write 188Mbps
  • Light-weight aluminum die casting shroud - enhanced passive cooling design with streamlining stripe all around the shroud to help quick radiation

Sustainability is pivotal in modern business, with IT/OT convergence at the forefront of innovation. This union not only heightens competitiveness but also enhances responsiveness to market demands, particularly concerning data security and network uptime. With the rise of digitalization in industry, cybersecurity's role in bolstering IT-OT synergy is crucial.

The DigiKVM™ - KG0016/KG0032 exemplifies this digital shift. This all-digital KVM over IP OmniBus Gateway champions digital transformation in spaces like server rooms and data centers. Through a secure portal, it offers centralized management and real-time remote server access. Regardless of the data signal type from the linked KVM DigiProcessor, all transmissions are digitized and protected, ensuring fast, clear video monitoring with remarkable visual accuracy.

The all-digital KVM over IP solution stands out for its robust security and versatile OS compatibility. It also presents a reliable way to manage remote IT access with out-of-band (OOBM) connection, especially when the in-band connectivity is compromised. For geographically spread businesses, it's a boon, enabling IT to quickly reinstate services and minimize business downtime.

KG1900T Features

The KG1900T USB VGA KVM DigiProcessor can centrally connect from the KVM over IP OmniBus Gateway to the target computer. Its digital signal delivers superior signal compensation for greatly enhanced video quality up to 1920 x 1200 @ 60 Hz, 24-bit color depth and raises the data transfer rate faster than traditional KVM solutions. This plug and play KVM DigiProcessor is built with a powerful SoC that provides excellent video compression performance. Its zero-U and light weight design allows for an efficient and tidy installation, providing an ideal space-saving solution. The KVM DigiProcessor is perfectly suited to data center, server room, control room and high tech production line applications.

Note: The ATEN KVM DigiProcessor is only compatible with KG0016 / KG0032. Make sure the KG0016 / KG0032 and the KVM DigiProcessor are connected directly with each other and there is no network switch in between. The SP port on the ATEN DigiProcessor is reserved for future expansion

  • Superior video quality - supports resolutions up to 1920 x 1200 @ 60 Hz; 24-bit color depth
  • Distortion-free dynamic video performance up to 100m via a Cat 5e/6 cable
  • Virtual Media supports fast transmission speeds up to Read 265Mbps / Write 188Mbps
  • Space saving - 0U and compact design with SR mounting hanger for organized server rack installation
  • Light-weight aluminum die casting shroud - enhanced passive cooling design with streamlining stripe all around the shroud to help quick radiation
  • Bus-powered - no external power adapter required with ultra-low power consumption*
  • Firmware upgradable
  • Smart Card / CAC Reader Support

    • Note: Make sure to connect both USB connectors to the server's USB ports to ensure sufficient power supply.


Data Sheet

ATEN KG1900T Technical Specifications

Connectors
Link 1 x RJ-45 Female (KVM)
1 x RJ-45 Female (SP) (Reserved for future expansion)
Computer 2 x USB Type A Male
1 x HDB-15 Male
Switches
Reset 1 x Semi-recessed Pushbutton
LEDs
Link 1 (Green)- On: Active / Blinking: Transmit/Receive)
10/100/1000 Mbps 1 (Off / Orange / Green)
Power 1 (Green)
Power Consumption DC5V:4.73W:22BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature 0-40°C
Storage Temperature -20-60°C
Humidity 0 - 95% RH, Non-condensing
Physical Properties
Housing Aluminum Die-casting Housing
Weight 0.30 kg ( 0.66 lb )
Dimensions (L x W x H) 12.20 x 5.80 x 2.58 cm
(4.8 x 2.28 x 1.02 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
