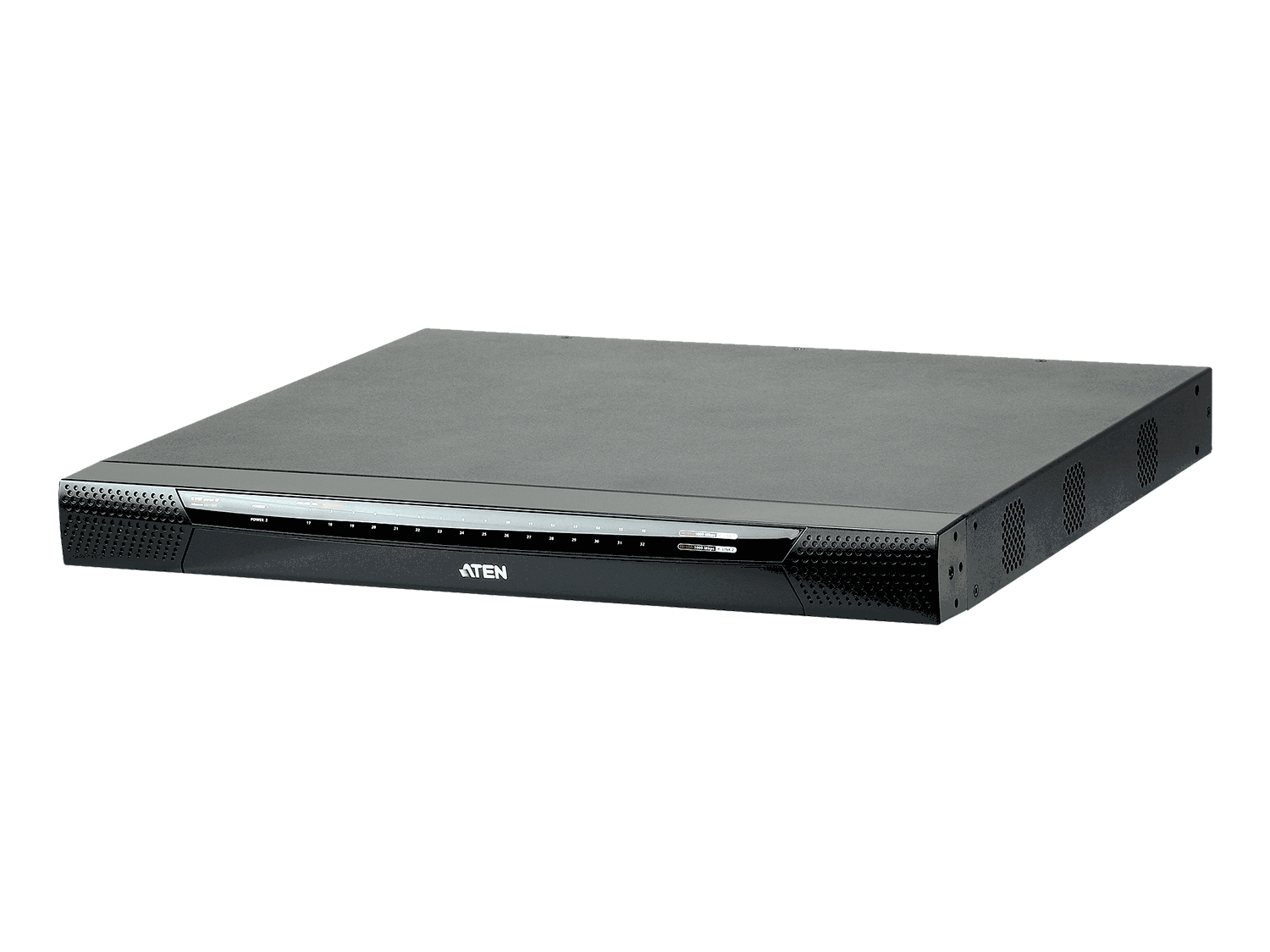

1-Local/1-Remote Access 32-Port Multi-Interface Cat 5 KVM over IP Switch
KN1132V
ATEN's 4th generation of KVM over IP switches exceed expectations. The KN1132V features superior video quality (Full HD resolution of 1920 x 1200), FIPS 140-2 with level 1 security standards and virtual media transmissions at twice the speed. The KN series provides local console and remote over IP access for users to monitor and access their entire data center over a network. In addition, it offers out-of-band access with external modem support for BIOS-level troubleshooting when the network is down.
New KN Series Exclusive:
• High grade security - supports FIPS 140-2 level 1 security standards
• Extreme virtual media speed - 2 x faster virtual media transmission speed
• Advanced FPGA graphics processor - with a Full HD resolution of 1920 x 1200
With dual on-board NICs and dual power supplies, the KN series are built for reliability, to ensure 24/7 availability of remote access to all servers.
The KN series offers out-of-band (OOB) management that enables IT administrators to manage network devices (e.g. server, storage, router/switch) in server rooms via management networks that are separate from the main/production networks. So if there's difficulty in accessing the network devices through the production network, the administrators can still access them via the KVM switch. The KVM switch offers several out-of-band access methods, such as a direct console connection from a local computer, a USB console connection from a laptop, a PSTN connection via modem, or a dedicated management network connection via the Ethernet (LAN) port.
KN series devices can be integrated into the CC2000 Centralized Management Software. The CC2000 puts administrators in complete control of remote data centers and branch offices no matter where they are in the world - allowing IT administrators to remotely monitor and control all devices on a network, including blade servers and virtual machines.
In addition, the KN series is compatible with ATEN's KVM over IP Console Station, the KA82 series. The KA82 series is a hardware-based standalone console solution that can centrally manage multiple KN devices. It is especially suitable for environments where a PC is not allowed. The KVM over IP Console Station features a 0U space-saving compact design and low power consumption for 24/7 operations.
To help you manage and control an entire data center, ATEN KVM over IP switches support blade servers and chassis. With powerful features such as Power Association - KVM ports can be associated with ATEN PDU power outlets for power management of servers from the KVM over IP switches' user interface.
Additional exclusive features of ATEN KVM over IP switches include: a Message Board, Panel Array Mode™, Mouse DynaSync™ and the Adapter ID.
A Windows Client and a Java Client are available for remote access. They allow IP connection and login from anywhere over the internet. In addition, ATEN also provides an iOS APP - PadClient, whose intuitive interface makes it easy to connect to the KVM over IP switch and control computers direct from your iPad. Please visit the PadClient webpage for more information.
ATEN KVM over IP switches save you time and money by allowing administrators to manage their data centers from practically anywhere - minimizing travel and MTTR (Mean Time to Repair) costs, ensuring the highest availability for data center services possible.
Aten KN1132V Features
- Advanced FPGA graphics processor - with a Full HD resolution of 1920 x 1200
- ATEN Exclusive Panel Array Mode™ simultaneously monitoring for both local console operators and remote access users
- High-Grade Security - supports FIPS 140-2 level 1 security standards that use an embedded FIPS 140-2 certified OpenSSL cryptographic module (Certificate #1747, #2398, #2473)
Advanced Features
- ATEN Matrix Link - allows you instant link transmitters and receivers, and perform real-time port and profile switching on an iPad
- Supports recording of remotely-accessed computer operations using CCVSR
- Boundless Switching - simply move the mouse cursor across screen boundaries to switch between different receivers (Rx)
- "Push"and"Pull" - shares content instantly to/from a single Rx or video wall by just one click
- Video Walls - create multiple video walls with up to 12 x 12 (144 displays max.) in each layout
- Advanced Scheduling - improves efficiency and saves costs by allowing connections to be set based on time and date
- Virtual Transmitter - independently streams video, audio, USB, and serial sources from different Tx
- Internal and external authentication support - supports LDAP, Active Directory, RADIUS and TACACS+ external authentications
- Configurable user and group permissions for access and control of KVM over IP extenders
- Rx access control - users at the Tx local console can enable / disable Rx access by simply pressing a control button*
- NOTE: These advanced functions are supported when the KE transmitters are paired with KE receivers and managed by CCKM.
The KVM over IP Access Control Box (2XRT-0015G) is sold separately.
Hardware
- Supports power/network failover - dual DC jacks for power redundancy and 1 RJ45 & 1 SFP fiber ports for network failover to ensure constant availability for mission-critical applications
- Supports 1Gbps SFP fiber module expansions*** up to 10 km
- Advance processor provides lossless and low latency video transmissions up to 1920 x 1200 @ 60Hz
- Supports digital (DVI) or analog (VGA) video output****
- Audio Enabled - supports stereo speakers and microphone
- High speed USB Storage Transmission support
- Auto-MDIX - automatically detects cable type
- Built-in 8KV/15KV ESD protection and 2KV surge protection
- Fanless design for silent operations that are energy efficient
- Mounting options:
• 2X-021G Dual Rack Mount Kit
• 2X-031G Single Rack Mount Kit - Includes an industrial-grade power adapter- supports operating temperature of 0-50°C to ensure durability and adaptability under harsh environmental conditions
- ***The SFP module (2A-136G / 2A-137G) is sold separately. Contact your ATEN dealer for product information.
****To convert a DVI to VGA signal, a DVI-I to VGA converter is required. - Integration with ATEN CCVSR Video Session Recording Software
- Local console- flexible local or over IP console access
- EDID Expert™ - selects optimum EDID settings for smooth power-up and highest quality display
- Four selectable access modes for multiple simultaneous access (Exclusive/Occupy/Share/ View only mode) - administrators can select access modes of permissions on Tx devices to boost collaboration or to avoid interference among users
- On-screen Preview- allows users to view the video of up to 36 displays on one screen
- Fast Switching- switches between different remote video resolutions on a local display within 0.3 seconds
- Command Line Interface - administrators can control all KVM over IP extenders via RS-232 or TCP/IP using a CLI or 3rd party application
- Supports Hotkey Commands
- Flashing LED and beeping feature help locate and identify devices
- KVM over IP extenders can "Push" and "Pull" to share content Security
- Dedicated LAN port for KE direct connections - can be isolated from the corporate network
- Secure data transmission - AES 128-bit encryption to secure all data before transmitted over a network and decrypts the data on the receiver
- Supports industry standard Transport Layer Security (TLS) protocol
- USB Storage Transmission mode enhances data transmission performance, ideally for file transfers, OS patching, software installations and diagnostic testing
- Supports USB 2.0 DVD/CD drives, USB mass storage devices, PC hard drives and ISO images
- Supports Smart Card/CAC Reader
Management
Security
Virtual Media
KN1132V Package Contents
- (1) KN1132V KVM over IP Switch
- (2) SA0142 Serial Adapters (RJ45-F to DB9-M; DTE to DCE)
- (2) Power Cords
- (1) Mounting Kit
- (2) Lok-U-Plugs
- (1) Lok-U-Plug Installation Tool
- (1) Foot Pad Set (4 pcs.)
- (1) User Instructions
KN1132V Resources
Aten KN1132V Data Sheet (PDF)
Aten KN1132V User Manual (PDF)
Aten KN1132V Specifications
| Console Connections | |
| Local | 1 |
| Remote | 1 |
| Computer Connections | |
| Direct | 32 |
| Maximum | 512 (via Cascade) |
| Port Selection | Pushbuttons, Hotkeys, GUI |
| Connectors | |
| USB Port | 3 x USB Type-A Female |
| Console Ports | 2 x USB Type-A Female (White) 1 x DVI-D Female (White) 1 x VGA HDB-15 (Blue) 1 x RJ-45 Female (Black) |
| Audio | 2 x Audio Jack Female |
| Laptop USB Console (LUC) Port | 1 x USB Mini-B Female |
| KVM Ports | 32 x RJ-45 Female |
| Serial | 1 x RJ-45 Female |
| PON | 1 x RJ-45 Female |
| LAN Ports | 2 x RJ-45 Female |
| Power | 2 x IEC 60320/C14 |
| Switches | |
| Port Selection | 2 x Pushbuttons |
| Reset | 1 x Semi-recessed Pushbutton |
| Power | 2 x Rocker Switches |
| LEDs | |
| Online / Selected | 32 (Green/Orange) |
| Link 10 / 100 / 1000 Mbps | 2 (Red/Orange/Green) |
| Power | 2 (Blue) |
| Emulation | |
| Keyboard / Mouse | PS/2; USB |
| Video | |
| Remote | 1920 x 1200 @ 60Hz |
| Local | 1920 x 1200 @ 60Hz |
| Scan Interval | 1 - 255 Sec |
| Maximum Input Power Rating | 100-240V~ ; 50-60Hz; 1A |
| Power Consumption | AC110V:26.88W:162BTU AC220V:27.83W:167BTU |
| Environmental | |
| Operating Temperature | 0-40°C |
| Storage Temperature | -20-60°C |
| Humidity | 0-80% RH, Noncondensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 5.54 kg ( 12.2 lb ) |
| Dimensions (L x W x H) | 43.36 x 41.21 x 4.40 cm (17.07 x 16.22 x 1.73 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
