Avocent 1U 17" Rackmount LCD with Integrated 8 Port KVM Switch

LCD17SWT8-001

$1,580.00

Discontinued
Recommended replacement: Avocent LRA185KMM8D-001
Alternative options: Contact Us

Download the
LCD17SWT8 Manual (PDF)
The Avocent LCD17SWT8-001 is a 17-inch LCD rack console and SwitchView 1000 8-port KVM switch which together create a single integrated access solution for SMB and server room environments.  This solution provides optimal support of PS/2 and USB systems. The Rackmount LCD and KVM Switch combo offers out-of-band access to critical servers which is non-intrusive to the network and reduces downtime. The LCD console switch includes an On-Screen Display (OSD) in multiple languages. The Grade A 17-inch TFT active-matrix monitor supports 1280x1024 resolution @ 60Hz. For the security-conscious user, a key lock controls access to the LCD rack console.

Note: The integrated system ships with all required cables.

Avocent LCD Console with KVM Switch Backside
Avocent LCD Console with KVM Switch Backside

Avocent LCD17SWT8-001 Features:

  • LCD console and KVM switch integration- Single, access and control solution to servers
  • 1U slide in design-  Easy to access and low demand on valuable rack space.
  • Combo cables- Uses a three-in-one KVM cable that supports USB or PS/2 target devices
  • Security- A key lock prevents access to the keypad or LCD trays.
  • Access- Rack-based access reduces downtime when network is unavailable.
  • Out-of-band- Efficient, non-network access to servers reduces downtime
  • Grade A, tempered glass LCD. TFT active-matrix- Crisp, clear images
  • OSD- On screen display (OSD) in multiple languages

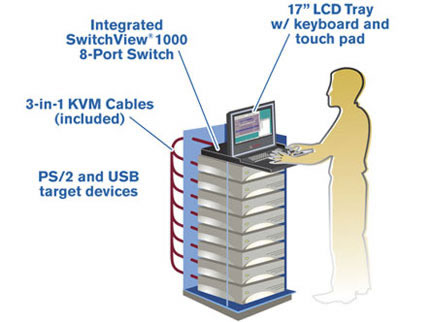

Avocent Rackmount LCD with KVM Switch Application Diagram
Avocent Rackmount LCD with KVM Switch Application Diagram

Avocent LCD17SWT8-001 Specifications:

Mechanical
Height 8.5 in. (216 mm.)
Width 31 in. (787 mm.)
Depth 23 in. (584 mm.)
Weight 39.7 lbs. (18.0 kg.)
Environmental
Operating Temperature 32 to 122 F (0 to 50 C)
Storage Temperature -4 to 140 F (-20 to 60 C)
Power
Operating Voltage AC 100 - 240V
Supported Hardware
Computers PS/2 and USB
Performance
Resolution 1280 x 1024
Standards
Approved Agency cUL, UL, CE, FCC, C-tick
Question: I HAVE THIS UNIT INSTALLED AND IT HAS A MESSAGE ' CABLE DISCONNECTED' AND LCD GOES TO SLEEP. PLEASE ADVISE ON OPERATION / RESET. THANK YOU
Answer: Thank you for your inquiry. Unfortunately, due to varied nature of user environments, comprehensive product support is beyond the scope of the product FAQ. We recommend referencing the manual linked above, or visiting the Avocent support community found here:
http://community.emerson.com/networkpower/support/avocent/.

Question: I have this product buy from America and lost all cables will you guide me where I get from now I am in Pakistan
Answer: Thank you for your inquiry. To find a local Avocnet distributor, please see the Emerson Network Power Contact us page: http://www.emersonnetworkpower.com/en-US/About/contactus/Pages/default.aspx.

Question: driver for usb and mouse
Answer: Thank you for your inquiry. This unit should not require any drivers to operate. Additionally, no drivers are provided by the manufacturer, Avocent.

Question: What operating system does this support?
Answer: Thank you for your inquiry. The KVM that shipped with this discontinued rack console drawer, the SwitchView 1000, supports most PC, Mac and Sun systems - using either USB or PS/2 interfaces. These hardware based KVM switches are typically operating system independent, however, certain user environments may impact performance.

You can find more details for the 8-port SwitchView 1000 here:https://www.kvm-switches-online.com/8sv1000-001.html.

Question: Do you have just the rail kit for this model?
Answer: Thank you for your inquiry,

Avocent no longer provides those rail kits for models out of warranty.

For a similar replacement, you may also be interested in the Raloy RNX119-KVM10008

Please let us know if there is anything else we can help you with!
