Avocent LongView LV1000U Cat5 USB/VGA KVM Extender
LV1000U-001
The Avocent LongView LV1000U Cat5 KVM Extender (LV1000U-001) extends a keyboard, monitor, mouse, speakers, microphone and serial port up to 1000 feet away from your computer or Avocent KVM switch. The system has a unique auto tuning feature that automatically compensates for both video skew and signal degradation over standard UTP cable without compromising the user experience. The Avocent LongView LV1000U Cat5 KVM Extender (LV1000U-001) supports video resolutions up to 1600 x 1200. The recommended resolution setting at 1000 ft. is 1280 x 1024.
Avocent LongView LV1000U Cat5 KVM Extender (LV1000U-001) Features and Benefits:
- Automatic compensation of video skew delivers clear video up to 1000 feet away
- Easily connects to USB computers
- Supports PS/2 and USB keyboard and mouse at the user station
- The OSD gives easy access to configuration setup and system information
- The single cable to user design simplifies installation and moves
- The design supports connection to a second user up to 1000 feet away with an additional receiver
- The mounting options allow for a clean and tidy user desk

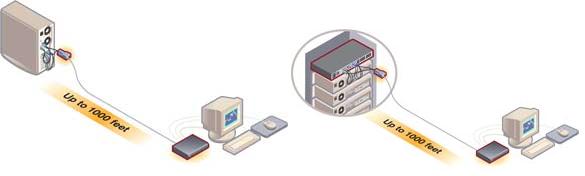

Avocent LongView LV1000U Cat5 KVM Extender (LV1000U-001) Function Diagram
Avocent LongView LV1000U Cat5 KVM Extender (LV1000U-001) Specifications:
| Mechanical | |
| Height | 1.06 in (27 mm) |
| Width | 8.27 in (210 mm) |
| Depth | 7.6 in (193 mm) |
| Weight | 2.2 lbs (1 Kg) |
| Environmental | |
| Operating Temperature | 32 degrees F (0C) to 104 degrees F (40C) |
| Storage Temperature | -4 degrees F (-20C) to 122 degrees F (50C) |
| Power | |
| Receiver Voltage | 100 to 240 VAC |
| Transmitter Voltage | Computer Powered |
| Frequency | 50 - 60 Hz |
| Supported Hardware | |
| Computers | USB |
| Multi-Media | Speakers & Microphone |
| Serial Devices | RS232 - 34,800 Baud |
| Peripherals | PS/2 & USB |
| Standards | |
| Approved Agency | EN55022 Class A, EN55024, EN1000-3-2, EN6100-3-3, EN60950, FCC 47CFR Part 15 Class A, CSA C22.2 No. 60950, IEC 60950, FCC 15 Class A, UL 60950 third edition, VCCI Class A. |
Question: This product uses vga video?, what difference is between Model Avocent LongView LV1000U Cat5 KVM Extender and the model Avocent LongView IP VG Digital Extender, PS/2 & USB Keyboard & Mouse, VGA Video?
Answer: Yes, this product does use VGA. The LongView 1000 extender is a point-to-point KVM, audio and serial device extender for use for up to 1,000 feet. The LongView IP digital extenders eliminate the distance limitations found in analog extenders while maintaining an "at-the-PC" experience for the user. Convenient IP connectivity allows you to select the computer location and provide access to high-quality video and audio from anywhere in your building. The LongView IP digital extenders also support a comprehensive range of peripherals including DVI-I, CD audio, USB mass storage, keyboard and mouse and other USB devices.
Question: I already have the LV1000R-001 receiver. Can I buy the LV1000U-001 extender separately?
Answer: Thank you for your inquiry. Although the receiver can be purchased separately, the transmitter is unfortunately only available for purchase bundled with the receiver.
Answer: Yes, this product does use VGA. The LongView 1000 extender is a point-to-point KVM, audio and serial device extender for use for up to 1,000 feet. The LongView IP digital extenders eliminate the distance limitations found in analog extenders while maintaining an "at-the-PC" experience for the user. Convenient IP connectivity allows you to select the computer location and provide access to high-quality video and audio from anywhere in your building. The LongView IP digital extenders also support a comprehensive range of peripherals including DVI-I, CD audio, USB mass storage, keyboard and mouse and other USB devices.
Question: I already have the LV1000R-001 receiver. Can I buy the LV1000U-001 extender separately?
Answer: Thank you for your inquiry. Although the receiver can be purchased separately, the transmitter is unfortunately only available for purchase bundled with the receiver.
