Avocent LongView receiver only (multi-media)
LV420R-AM
LongView receiver only (multimedia)
The Avocent LongView LV420R-AM extender extends a keyboard, monitor, mouse, speakers, microphone and serial port up to 500 feet away from your computer. You can improve physical and data security and increase working space by separating your staff from their computers. The Avocent LongView LV420R-AM extender allows you to place connected computers up to 500 feet away with any UTP cable and still have control of your keyboard, monitor, mouse, speakers, microphone and serial devices.

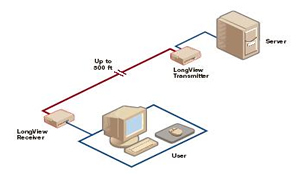

Avocent LongView LV420R-AM Function Diagram
Avocent LongView LV420R-AM Features and Benefits:
- Lowers installation cost - Actual extension requires just one CAT 5 cable
- Security - Extension allows you to: place your system unit, software and sensitive data in a secure area minimize tampering and system damage eliminate unauthorized software installation
- Automatic configuration without jumpers or switches
- AutoTuning technology compensates for varying cable types/lengths, and adjusts for signal losses each time a switch is made to a server
- Supports multimedia projects through high-quality audio and video
- COM serial port
Avocent LongView LV420R-AM Specifications:
| Mechanical | |
| Height | 1.9" (4.8 cm) |
| Width | 8.1" (20.6 cm) |
| Depth | 4.8" (12.2 cm) |
| Weight | 1 lb. (0.45 kg) |
| Environmental | |
| Operating Temperature | |
| Storage Temperature | |
| Power | |
| Operating Voltage | 32 to 104 F (0 to 40 C) |
| Power Frequency | -4 to 122 F (-20 to 50 C) |
| Input | 24 VDC @ 500mA from 115 VAC or 230 VAC adaptor |
| Supported Hardware | |
| Computers | Computers using 100 percent IBM compatible, PS/2 compatible peripherals |
| Monitor | non-interlaced VGA, SVGA, XGA, 15-pin high density "D" connector |
| Peripherals | PS/2 or serial mouse, PS/2 keyboard (150mA max) |
| Standards | |
| Approved Agency | FCC Class A, UL, C-UL, CE, VCCI Class A |
