1X4 kvm Switch, DVI-I, Dual-link, Quad-Video, USB 2.0
MDM-4T4DDL/A1
Save $249.37

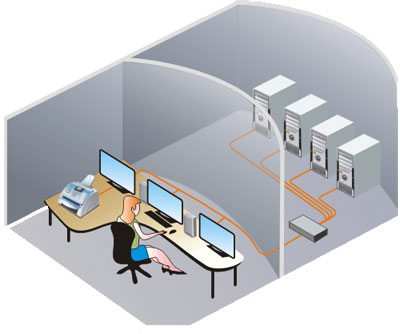

MultiVideo DVI switch is ideal for switching Quad-head computer digital or analog video sources simultaneously to up to 4 remote monitors and 1 keyboard and mouse. Crystal clear video at resolutions up to 2560 x 1600 make this unit a perfect addition to any video environment.
Features & Benefits
- Full dual link DVI video support
- 1x4 dual-link Quad DVI-I video
- Resolutions up to 2560 x 1600
- Select a computer using the front panel switches, hotkeys, or the mouse buttons
- Switch dual link digital video up to 300 Mpixels/sec
- Front panel indicator shows the currently active channel, which peripherals are switched to the active channel, keyboard and mouse activity, and power
- Digital or analogue video support (Analogue requires a DVI to VGA adapter)
- Supports a wide range of USB 2.0 peripherals (HID and Transparent devices)
- RS232 serial port for upgrades to the units firmware, synchronizing Vista DVI units so multiple computers/video screens can be switched and accessed
- Remote serial port switching
- Flash upgradeable
MultiVideo DVI Specifications
| Mechanical | |
| Height | 3.94 in. (10. cm) |
| Width | 5.9 in. (14.98 cm.) |
| Depth | 10.24 in. (26 cm.) |
| Weight | 5 lbs. |
| Resolution | Single-link DVI: 1920x1200 Dual link DVI: 2560x1600 |
| Distance | 25 ft |
| Connectors | Video: DVI female Keyboard: USB Type A Mouse: USB Type A Audio: 3.5mm female audio jack USB 2.0 device: 2 USB Type A USB 2.0 host: USB Type B Power: Barrel jack |
| Control | Computer/Mode: Front panel push buttons Selected computer: LED digit Selected KVM: Red LED/port Selected speaker:Red LED/port Selected USB1: Red LED/port Selected USB2: Red LED/port |
| Environment | Operating temp: 32°F-104°F (0°C-40°C) Storage temp: -13°F-140°F (-25°C-60°C) Relative humidity: 5%-80%, non-condensing |
