Avocent 32-Port, 8 Digital Path, Single-AC input Power Supply
MPU8032-001
Save $471.94
Discontinued
Replaced by: Avocent MPU8032DAC-400
Alternative options: Contact Us
The Avocent MergePoint Unity MPU8032-001 is a KVM over IP 32-Port Serial Console Switch with 8 Digital Path and single-AC input Power Supply.
This unique combination provides IT Administrators a complete remote management solution to access and control servers, networking equipment, and other devices found in data centers and branch offices.
The MergePoint Unity switches enhance the in-band management typically done through the NIC of IT equipment by providing secure and remote Out-of-band connections directly to the physical KVM, USB, and Serial ports. This unified approach enables IT administrators a faster method to diagnose, reconfigure, or restore equipment to meet SLA's and minimize downtime.

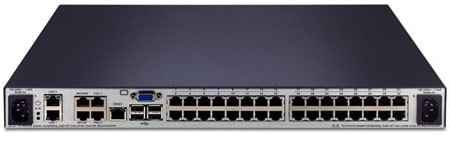

Avocent MergePoint MPU8032 Backview
Avocent MergePoint MPU8032-001 Features:
- Complete, full-featured remote server management from a single user interface.
- Remote KVM and serial console access are both included in the design of the MergePoint Unity switches.
- The MergePoint Unity switches can operate out of the box or can be managed by the DSView 3 software to allow a single method to manage and access all the MergePoint Unity switches that exist.
- Supports LDAP when used alone or can be managed with the DSView 3 management software to add more authentication and reporting options.
- The MergePoint Unity switch has virtual media capabilities to map USB storage devices and Smart Card/ Common Access Card (CAC) readers.
- All MergePoint Unity switches come with virtual media capabilities.
- The MergePoint unity switches offer dual 10/100/1000 ethernet ports on all models and options for models with dual power supplies.
- Dedicated power control ports to connect and control Avocent rack PDUs (sold separately) for integrated power control and measurement.

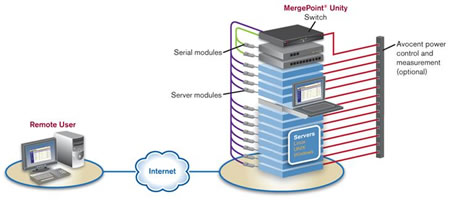

Avocent MergePoint MPU8032-001 Application Diagram
Avocent MergePoint MPU8032-001 Specifications:
| Mechanical | |
| Height | 1.72 in. (4.4 cm.) |
| Width | 17.0 in. (43.2 cm.) |
| Depth | 14 in. (34 cm.) |
| Weight (without cables) | 8.6 lbs. (3.9 kg.) |
| Form Factor | 1-U rack mountable |
| Power Specifications | |
| Number | MPU8032DAC/4032DAC/2016DAC/1016DAC: 2 power supplies MPU08032/4032/2016/1016: 1 power supply |
| Type | Internal |
| Power | MPU8032DAC/8032: 24W; MPU4032DAC/4032: 18W; MPU2016DAC/2016: 13W; MPU1016DAC/1016: 12W |
| Heat Dissipation | MPU8032DAC/8032: 82 BTU/hr MPU4032DAC/4032: 62 BTU/hr MPU2016DAC/2016: 45 BTU/hr MPU1016DAC/1016: 41 BTU/hr |
| AC Input Range | 100-240 VAC |
| AC Frequency | 50-60Hz autosensing |
| AC Input Current Rating | 1.25 A |
| AC Input Power (max) | 40W |
| Server Ports | |
| Number | 32 port models- MPU8032DAC/8032/4032DAC/4032 |
| Modules supported | PS/2, Sun, USB and Serial modules sold separately |
| Connectors | 8-pin modular |
| Sync Types | Separate horizontal and vertical |
| Input Video Resolution | 640 x 480 @ 60 Hz; 800 x 600 @ 75 Hz; 960 x 700 @ 75 Hz; 1024 x 768 @ 75 Hz; 1280 x 1024 @ 75 Hz |
| Supported Cabling | 4-pair UTP CAT 5 or CAT 6, 45 meters maximum length |
| Network Connection | |
| Number | 2 |
| Type | 10/100/1000 Ethernet |
| Local Port | |
| Number | 1 |
| Type | USB and VGA |
| USB Device Port | |
| Number | 5 |
| Type | USB 2.0 |
| Modem Port | |
| Number | 1 |
| Type | RS-232 serial |
| Connectors | 8-pin modular |
| PDU Port- used to manage supported PDUs through a direct serial port connection | |
| Number | 2 |
| Type | RS-232 serial |
| Connector | 8-pin modular |
| Ambient Atmospheric Condition Ratings | |
| Temperature | Operating;32 to 122 degrees Fahrenheit (0 to 50 degrees Celsius) Non-operating: -4 to 158 degrees Fahrenheit (-20 to 70 degrees Celsius) |
| Humidity | Operating:20% to 80 % relative humidity (non-condensing) Non-operating: 5% to 95% relative humidity, 38.7 degrees C maximum wet bulb temperature |
| Safety and EMC Standards Approvals and Markings | |
| UL, FCC, cUL, ICES-003, CE, VCCI, KCC, C-Tick, GOST | |
| Safety certifications and EMC certifications for this product are obtained under one or more of the following designations: CMN (Certification Model Number), MPN (Manufacturer's Part Number) or Sales Level Model designation. The designation that is referenced | |
Question: How to activate the desktop of Avocent 8032. Which Keys should be strick?
Answer: Thank you for your inquiry,
"The MergePoint Unity switch comes equipped with two "point-and-click" interfaces: a local user interface (local UI) and a remote on-board web interface (OBWI). Using the configuration options provided by these interfaces, you can tailor the MergePoint Unity switch to your specific application, control any attached devices and handle all basic KVM or serial switching needs. The local UI and remote OBWI are almost identical. Unless specified, all information in this chapter applies to both interfaces.
You can choose any of the following keystrokes to be configured to open the local UI or to switch between the local UI and an active session: Print Screen, Ctrl + Ctrl, Shift + Shift, and Alt + Alt. You can close the local UI by pressing Esc or Print Screen.
Attached target devices in the local UI can be viewed and managed from two individual screens that are selected from the side navigation bar. For less than 20 targets, the Target List-Basic screen is recommended for navigation."
Here is a link to the full manual for a throughout explanation of controlling / managing the MPU8032.
Answer: Thank you for your inquiry,
"The MergePoint Unity switch comes equipped with two "point-and-click" interfaces: a local user interface (local UI) and a remote on-board web interface (OBWI). Using the configuration options provided by these interfaces, you can tailor the MergePoint Unity switch to your specific application, control any attached devices and handle all basic KVM or serial switching needs. The local UI and remote OBWI are almost identical. Unless specified, all information in this chapter applies to both interfaces.
You can choose any of the following keystrokes to be configured to open the local UI or to switch between the local UI and an active session: Print Screen, Ctrl + Ctrl, Shift + Shift, and Alt + Alt. You can close the local UI by pressing Esc or Print Screen.
Attached target devices in the local UI can be viewed and managed from two individual screens that are selected from the side navigation bar. For less than 20 targets, the Target List-Basic screen is recommended for navigation."
Here is a link to the full manual for a throughout explanation of controlling / managing the MPU8032.
