Avocent Emerge HD Multipoint Extender - Receiver
MPX1000R-001
The Avocent Emerge MPX1000R HD multipoint extender receiver provides wired or wireless connectivity for moving high-definition content from one source to one or more destinations incorporating High-Definition Multimedia Interface (HDMI) technology. The Avocent MPX1000R can wirelessly transmit high resolution computer graphics, high-definition video, stereo audio, and control data to as many as eight wireless or LAN connected receivers.
The MPX1000R with the MPX1000T (sold separately) provide high-definition media support for use in professional audio-visual applications. Audio-video synchronization is maintained at each display and all wirelessly connected receivers remain in lock step with each other. Additional interchangeable modules are available for input/output of analog signals including composite video, component video, computer graphics; or digital HDMI/DVI signals.
The MPX1000R with the MPX1000T (sold separately) provide high-definition media support for use in professional audio-visual applications. Audio-video synchronization is maintained at each display and all wirelessly connected receivers remain in lock step with each other. Additional interchangeable modules are available for input/output of analog signals including composite video, component video, computer graphics; or digital HDMI/DVI signals.
The Emerge MPX1000R extender provides two primary user interfaces for system control and configuration: an intuitive menu system that lets you access multiple web pages and a front panel display to control and configure the system. The extender also allows for several methods to control external audio-visual equipment through RS-232 serial and infrared connections. The MPX1000R extender is field upgradeable to support future functionality.
Note: Media Modules are required for the Emerge HD multipoint extender system and are sold separately.

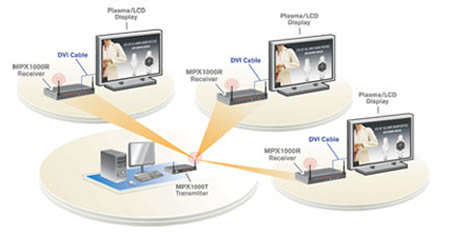

Avocent MPX1000 Wireless DVI-D Installation
Avocent MPX1000R Features & Benefits:
- Wired or Wireless Extension
- Digital Input and Output
- Real-Time Compression
- IR Control
- Low Latency
- Web Control Interface
- Serial Interface
- Interchangeable Antennas: Directional (optional) and omni-directional (standard)
- AES 128 Bit Encryption
Avocent MPX1000R Specifications:
| Mechanical | |
| Height | 1.7 in. (43 mm.) |
| Width | 12.75 in. (323 mm.) |
| Depth | 7.54 in. (192 mm.) |
| Weight | 4.6 lbs. (2.01 kg.) with full A/V module |
| Environmental | |
| Operating Temperature | 32°F (0°C) to 104°F (40°C) |
| Storage Temperature | -4°F (-20°C) to 120°F (48°C) |
| Humidity | 20% to 80% (Non-condensing) |
| Power | |
| AC input/frequency | 100 -240 VAC / 50 - 60 Hz |
| Connections (Front) | |
| IR Receiver | IR input |
| 3.5 Mini | IR Blaster output; the IR Blaster port supports enough drive current to handle 4 IR LEDs |
| SMA Connector (2) | Antenna |
| Proprietary | Zigbee module slot |
| Connections (Rear) | |
| RJ-45 | Ethernet 10/100 IEEE 802.3 |
| RS-232 (Female) | Serial control input |
| Power | IEC |
| Input Module | Input module slot |
| Antennas | Two 2dB omni-directional |
Question: Do you carry a replacement power supply for this unit?
Answer: Thank you for your inquiry. Please contact your KVM Switches Online sales representative at 1-877-586-6654 for availability.
Question: What frequency do these units run on?
Answer: Thank you for your inquiry. We are having trouble tracking down a manual for this discontinued model, but other (also discontinued) versions (MPX1450/1550) state the following:
UNII 1: (4 channels bonded to two 40MHz channels) 5.15-5.25 GHz
UNII 3: (5 channels bonded to two 40MHz channels) 5.725 to 5.825 GHz
NOTE: Future firmware releases will support un-bonded channels at lower bandwidth rates.
Firmware upgrades will be provided, allowing the product to transmit in the following frequencies:
- ISM: (11 channels bonded to three 40MHz channels) 2.412 to 2.462 GHz - (Available for use within the United States)
- UNII 2: (4 channels bonded to two 40MHz channels) 5.25-5.35 GHz
- ETSI: (11 channels bonded to five 40MHz channels)) 5.470-5.725 GHz
Answer: Thank you for your inquiry. Please contact your KVM Switches Online sales representative at 1-877-586-6654 for availability.
Question: What frequency do these units run on?
Answer: Thank you for your inquiry. We are having trouble tracking down a manual for this discontinued model, but other (also discontinued) versions (MPX1450/1550) state the following:
UNII 1: (4 channels bonded to two 40MHz channels) 5.15-5.25 GHz
UNII 3: (5 channels bonded to two 40MHz channels) 5.725 to 5.825 GHz
NOTE: Future firmware releases will support un-bonded channels at lower bandwidth rates.
Firmware upgrades will be provided, allowing the product to transmit in the following frequencies:
- ISM: (11 channels bonded to three 40MHz channels) 2.412 to 2.462 GHz - (Available for use within the United States)
- UNII 2: (4 channels bonded to two 40MHz channels) 5.25-5.35 GHz
- ETSI: (11 channels bonded to five 40MHz channels)) 5.470-5.725 GHz
