Avocent Emerge MPX1500R HD Multipoint Extender - Receiver
MPX1500R
Discontinued
Recommended replacement: Wireless KVM | Wireless Extenders
Alternative options: Contact Us
The Avocent Emerge MPX1500R is a HD Multipoint Extender Receiver Unit. It extends high-definition (HD) video and audio in a wired or wireless configuration from a source to one or more destinations. The Emerge MPX1500 multipoint extender provides true digital picture and sound content delivery to displays for presentation and digital signage applications.
The Avocent Emerge MPX1500 multipoint extender provides wireless or wired connectivity for distribution of high-definition content from a source to one or more destinations. Emerge MPX transmitters and receivers work in unison to form a managed audio video extension network able to deliver a synchronized stream of high-definition computer graphics or video and associated audio from a source to as many as eight display devices. Display device control information, content protection and interactive device control signals, including IR and serial are passed from source to sink through the extension network, providing a fully integrated solution.
Ideal for professional high-definition media applications, the MPX1500 transmitter and receiver feature a universal media port based upon a locking digital video interface (DVI-I) connector. This media port allows for extension of digital and analog media formats, including: DVI-D, HDMI, DVI-A, RGBHV or YPbPr signals. Embedded digital audio and unbalanced analog audio are both supported. The MPX system serves as a video splitter and a extender by wirelessly delivering audio and video to multiple displays up to 1000 feet away.
All MPX extenders feature an on-board web server for ease of central management. For system control and configuration, the Emerge MPX extender solution is accessible through an on-board web server that allows browser-based configuration, status monitoring, and administration. The extenders allow for centralized control of attached audio-visual equipment through RS-232 serial and infrared interfaces. The Emerge MPX product is field upgradeable to support future functionality.
Avocent Emerge MPX1500R Features:
- Wired or Wireless Extension - Provides installation flexibility for wireless or wired high-definition applications.
- Universal DVI-I Video Port - The MPX1500 T/R features a single DVI-I media port that supports RGB, component, DVI-A, DVI-D, and HDMI video.
- Enhanced Audio - Supported audio standards include stereo analog audio supported via white and red RCA connectors.
- Point to Multipoint Distribution - High definition computer graphics or video and associated audio can be distributed to as many as eight display devices.
- HDCP Compliant - For use with Blue-ray and other protected content.
- Serial Control - MPX1500 extenders support broadcast and bi-directional serial data transfers for management of attached display devices.
- IR Control - MPX 1500 extenders support broadcast and bi-directional IR data transfers for session control from the point of display or for display control from the location of the source device. Mini-jack cables allow IR blasters and receivers to be optimally placed.
- Web Control Interface - Allows local or remote control and configuration of the system without special software tools.
- Serial Interface - Allows integration with third party control systems.
- AES 128 Bit Encryption - Audio-visual information is encrypted with built-in Advanced Encryption Standard (AES) for secure transmission.
- Small Form Factor - Smaller profile allows convenient installation and saves space where it's needed the most.

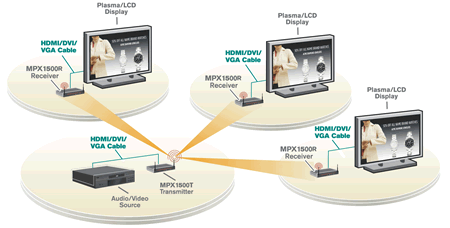

Avocent Emerge MPX1500R Application Diagram
Avocent Emerge MPX1500R Specifications:
| Mechanical | |
| Height | 1.00 in. (25.4 mm.) |
| Width | 6.92 in. (176 mm.) |
| Depth | 4.55 in. (116 mm.) |
| Weight | 1.4 lbs. (0.64 kg.) |
| Environmental | |
| Operating Temperature | 32°F (0°C) to 118.4°F (48°C) |
| Storage Temperature | -4°F (-20°C) to 140°F (60°C) |
| Humidity | 20% to 80% (Non-condensing) |
| Altitude | Altitude 10,000 ft across the operating temperature range, 35,000 ft across storage temperature range |
| Power (AC input/frequency) | 100 - 240 VAC / 50 - 60Hz |
| Shock | 140G - 3 axis |
| Inrush Current | 14.2 Amps (AC/DC adapter) |
| Connections (Front) | |
| 2.5mm Mini-Jack | IR input |
| 3.5mm Mini-Jack | Jack: IR blaster output, 38KHz +/- 2KHz; the IR blaster port supports enough drive current to handle 4 IR LEDs |
| RP-SMA Connector | (2) Antenna connectors |
| USB | USB 1.1 (not used at this time) |
| Connections (Rear) | |
| DC Power DC barrel connector | 12VDC @ 1.5Amps |
| Serial (RJ-45) | RJ45 serial port for control of attached display devices. Requires optional DB9-UNI female serial cable. Baud rates up to 38.4K |
| L1 LAN (RJ-45) | IEEE 802.3 10/100 Ethernet, used for web access Note: MPXreceivers offer combined web/video functionality on a single port |
| L2 LAN (RJ-45) | IEEE 802.3 10/100 Ethernet, used for streaming video Note: MPXreceivers offer combined web/video functionality on a single port |
| DVI-I | AV media port that supports a wide range of digital and analog video modes |
| RCA Jacks (2) | Left and right jacks for unbalanced analog audio |
| S/PDIF | Digital audio output. Operation of this port may require a firmware upgrade |
| Video Details | |
| Video Gain | Unity ±1DB |
| Digital Video Standards | HDCP compliant, HDMI 1.2 compliant, DVI-D DDC2B |
| Maximum Wired Video Bit Rate | 40 Mbps |
| Maximum Wireless Video Bit Rate | 20 Mbps |
| Video Resolutions (RGB) | Computer (RGB) at 30 fps 640 x 480 @ 60Hz 800 x 600 @ 60Hz 1024 x 768 @ 60Hz 1280 x 720 @ 60Hz 1280 x 768 @ 60Hz 1360 x 768 @ 60Hz
|
| Video Resolutions (component video) | SD video (component) at 30 fps 480i @ 60Hz 480p @ 60Hz 576i @ 50Hz 576p @ 50Hz HD video (component) at 30 fps 720p @ 50/60Hz 1080i @ 50/60Hz |
| Video Resolutions (HDMI and DVI-D) | Computer resolution at 30 fps 640 x 480 @ 60Hz 800 x 600 @ 60Hz 1024 x 768 @ 60Hz 1280 x 720 @ 60Hz 1280 x 768 @ 60Hz 1360 x 768 @ 60Hz SD video at 30 fps 480i @ 60Hz 480p @ 60Hz 576i @ 50Hz 576p @ 50Hz HD video at 30 fps 720p @ 50/60Hz 1080i @ 50/60Hz |
| Audio Details | |
| Line Audio Outputs | Line audio inputs less than or equal to 10K Ohm with 0-36dB of headroom |
| Frequency Response | Analog audio frequency response: 20 Hz-20 Khz with a 3dB per octave roll-off beginning at 14 kHz |
| Radio Bands | |
| UNII 1: (4 channels) | 5.15 to 5.25 GHz |
| UNII 3: (4 channels) | 5.725 to 5.825 GHz |
| ISM (11 channels) | 2.412 to 2.462GHz (requires firmware upgrade) |
| Extension Distances | |
| Wired Distance | Wired distance limitations conform to Ethernet standards for a single subnet (no routing) |
| Wireless Distance | Up to 300 ft (90 m) line of sight and 150 ft (45 m) through interior (gypsum) walls |
| Regulatory Distances (CMN:2003 Series) | |
| Standards | FCC Class B, UL, cUL, RoHS, CE, ICES-003, WEEE |
| Warranty | 2 years |
