MXCORE-UH Expandable HDMI 32X12 Matrix Switcher

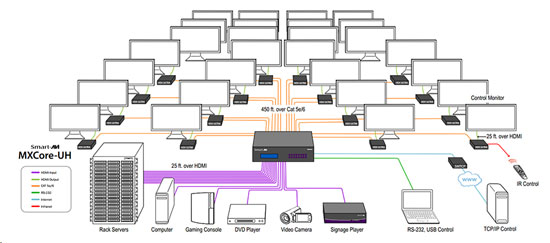

The MXCore-UH is an HDMI video router that enables users to route HD signals up to 450 feet over a single CAT 5e/6 cables, providing the ultimate solution to create clean and efficient video and digital signage systems in configurations up to 32x12.

Applications

• Wall Displays
• Digital Signage
• Airports
• Dealer Rooms
• Control Rooms
• Audio/Visual Presentations
• Shopping Centers
• Security
• Point-of-Sale
• Hotels/Resorts
• KVM Switch

Features

• Switches any HDMI source input to any output up to 32x32
• Sources can be routed independently to any display
• Supports high definition video resolutions of 480p, 720p, 1080i and 1080p
• Supports digital formats in Deep Color to 12bit per color
• Supports EDID for total control of compliant displays
• Delivers uncompressed digital video with zero signal loss
• Input cable equalization
• Switching controlled via RS-232, IR, Smart Control GUI or web server

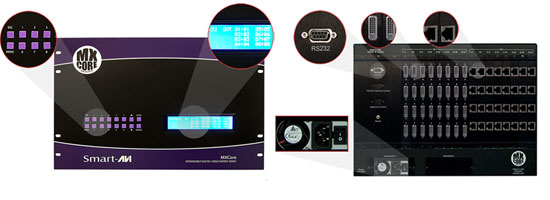

• Front panel 4x40 LCD display
• Easy switching via front panel
• Browser Graphical User Interface (GUI)
• Web-based interface
• Telnet support
• Firmware upgradeable for future support
• Extends HDMI, IR output over single Cat5/5e/6UTP cable
• Extends IR and signals for remote control
• Data signals up to 3.4 Gbps
• Support RC5 IR for local switching
• Support IR bypass for 36 to 60Khz

SmartAVI MXCore-UH 32x12 Specifications

UPC 813280022712
EAN 0813280022712
