16x16 HDMI video wall and digital signage matrix solution
MXWALL-1616S
Save $4,150.65

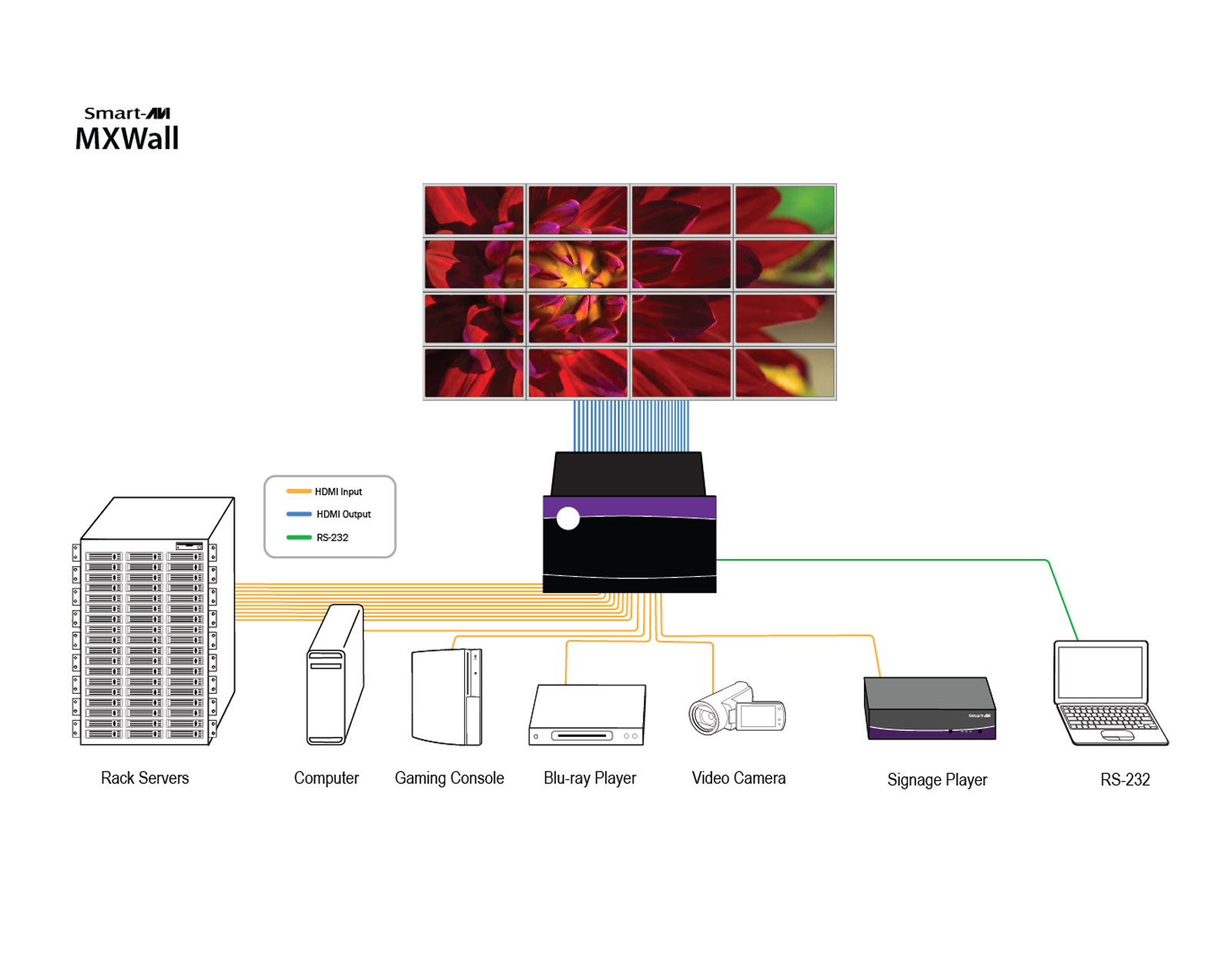

For the ultimate in control over a high definition video matrix, the new MXWall delivers complete flexibility to route and distribute 16 HD inputs and 16 HD outputs with video wall functionality. No other video matrix on the market today provides the unique combination of full matrix switching with included video wall operation, which offers the ideal video routing solution for the most demanding of environments and applications.
Product Benefits and Features
- Expandable to 32 HDMI Inputs and 32 HDMI Outputs
- Full Hardware Solution, No Operating System Required
- Real Time Image Display, No Dropped Frames
- Supports Multiple Video Wall Layouts
- Built-In Digital Signage Functionality
- Delivers Reliable, "24/7" Uninterrupted Use
- HDMI 1.4 and HDCP Compliant
- Output Resolution up to 1920x1080
- Scales Each Input to 1080p
- Supports Partial Input and Output Cards with Mixed Interpolation
- High-Speed Bus Parallel Processing Technology and High-Bandwidth Uncompressed Processing
- Control via Front Panel Buttons, RS-232 or Ethernet
- User-Friendly GUI Software
- Supports Open Protocol for Integration with AMX, Creston
- Android Application Available
- Integrated Media Player for Video, Photos and Web Browsing with Local Storage
| Mechanical | |
| Width | 17.125 in (435 mm.) |
| Height | 12 in. (305 mm.) |
| Depth | 12 in. (305 mm.) |
| Weight | 30 lbs. (13.60 kgs.) |
| Video | |
| Video Amplifier Bandwidth | 3.2G |
| Input Video Signal | Video (TMDS) 0.5~1.0Vpp |
| Input DDC Signal | 5 volts |
| Compliances | HDMI 1.4 and HDCP compliant |
| Pixel Rates | Clock frequency beyond 165Mpix/second |
| Format | 4:4:4 and 4:2:2 data input formats |
| Resolution | 480p, 720p, 1080i, 1080p |
| Input Card Format | HDMI |
| Output Card Format | HDMI |
| Input Slots | Up to 8 cards of 4 HDMI input each |
| Output Slots | Up to 8 cards of 4 HDMI output each |
| Video Type | RGB/YCBCR : 24/30/36-bits,YCBCR: 8/10/12/16/20/24-bits |
| Controls | |
| Front Panel | 2x8 keyboard with 4x40 LCD |
| RS-232 | 9600bps, Software flow DB9 Female |
| TCP/IP | Webserver, Telnet |
| Other | |
| Operating Temperatures | 32-131°F (0-55°C) |
| Humidity | 10-90% Non-Condensing |
| Power | 50/60Hz, 100~230 VAC |
| Consumption | 300W |
UPC 813280015929
EAN 0813280015929
